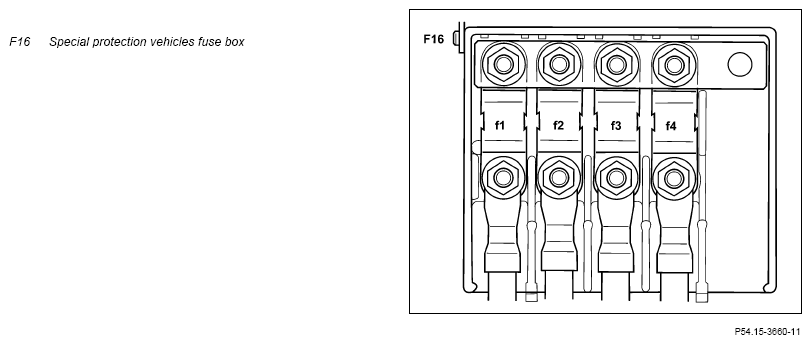

Fuse Assignment In Pre-Fuse Box On Special Protection Vehicles - GF54.15-P-1256-23LF
Model 222 with code Z07 (B7 armoring on special protection version)
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| f1 | Electrical fuse 1 (F16f1) | 30 | 4.0 RDBK | Special-purpose vehicle fuse block 1 (F80/1) | 30 |
| f2 | Electrical fuse 2 (F16f2) | 30 | 2.5 RD | Front passenger door electrical connector (X35/2) | 30 |
| f3 | Electrical fuse 3 (F16f3) | 30 | 4.0 RDGN | Special-purpose vehicle fuse block 1 (F80/1) | 30 |
| f4 | Electrical fuse 4 (F16f4) | 30 | - | Spare | - |
