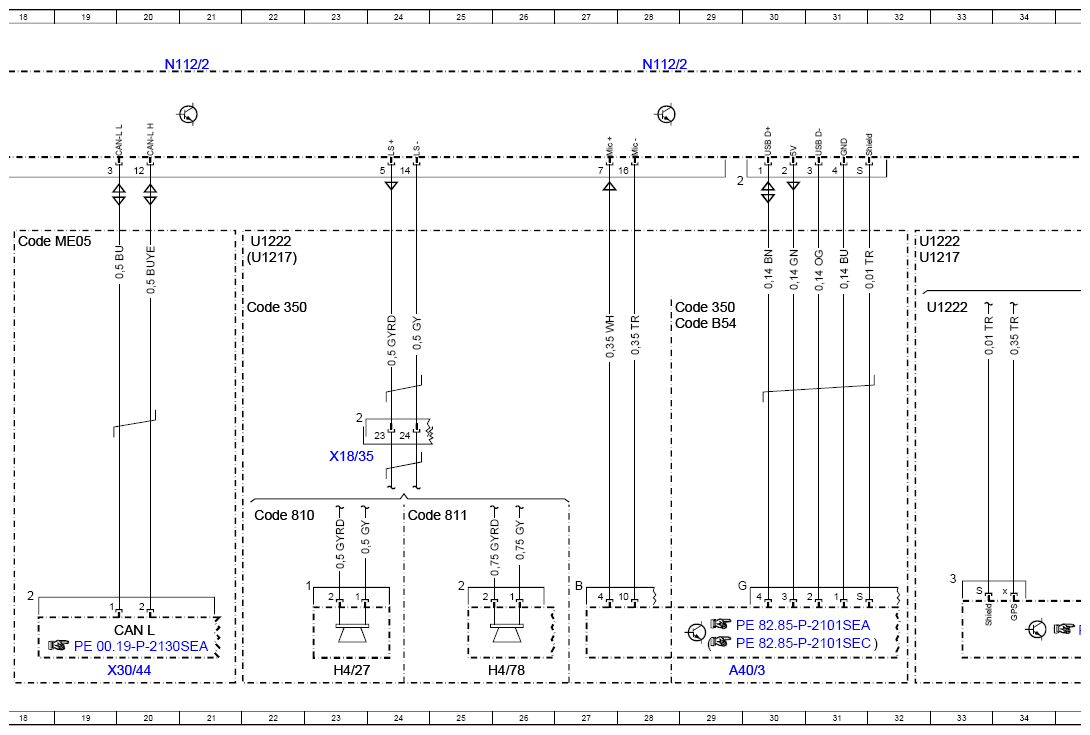

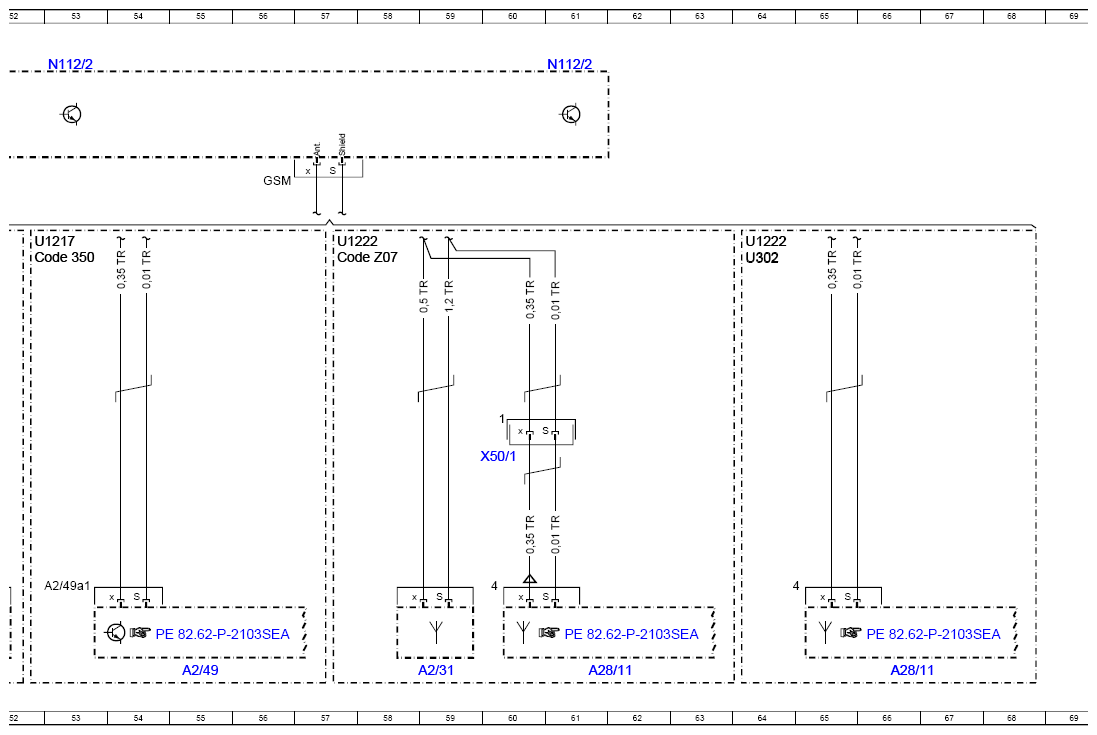

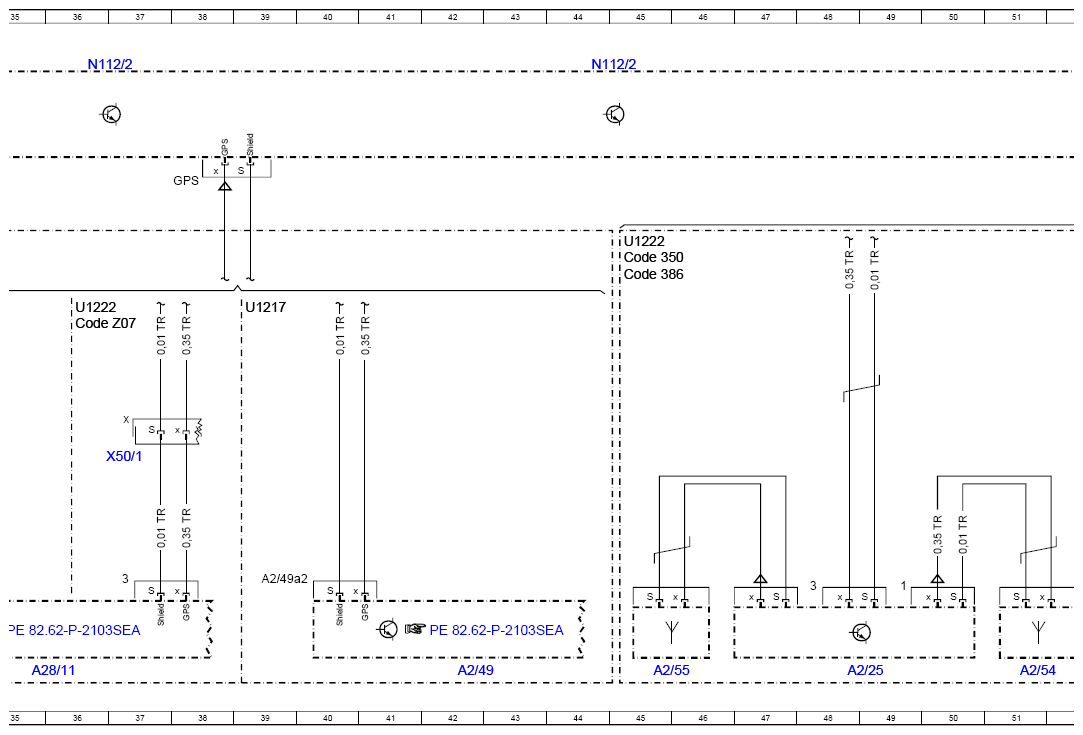

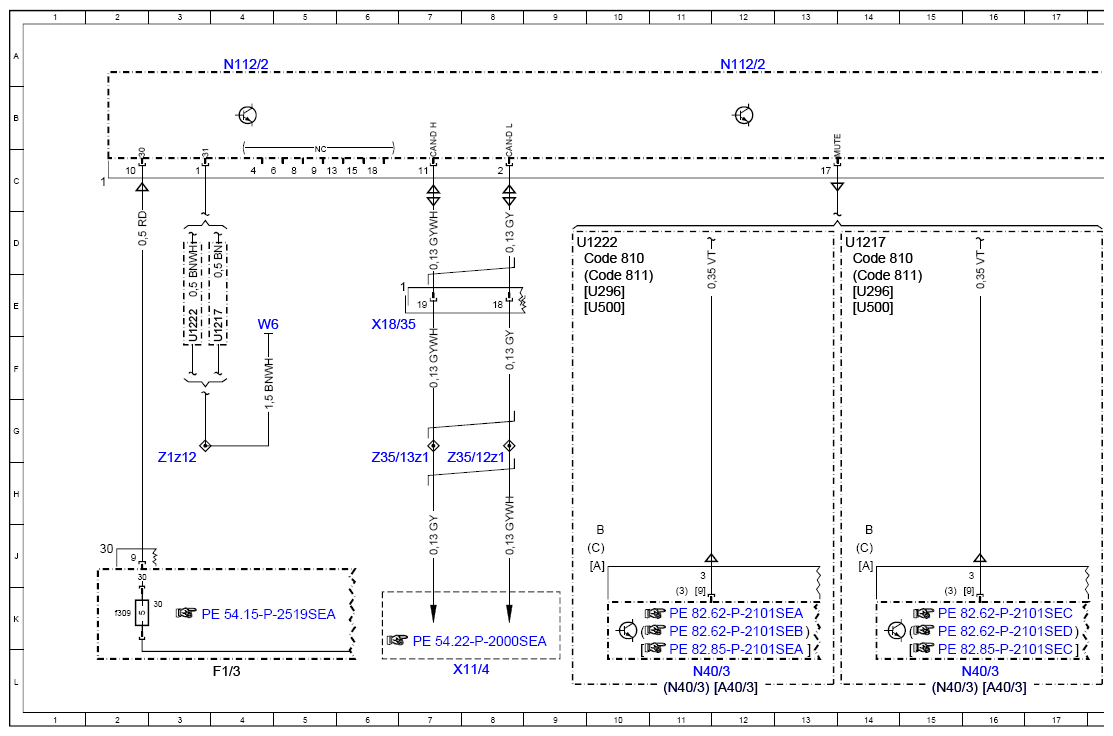

Wiring Diagram For Telematics Services Communications Module Control Unit - PE82.85-P-2105-97SEA
Model 217 Up To Model Year 2018 With Code 350 (Ecall emergency call system, Europe) With Code B54 (Live Traffic Information) Control unit N112/2
Model 222 Up To Model Year 2018 With Code 350 (Ecall emergency call system, Europe) With Code B54 (Live Traffic Information) Control unit N112/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A2/25 | Emergency call system antenna splitter | 48L |
| A2/31 | Rear bumper emergency call system antenna | 59L |
| A2/49 | Telematics services and GPS antenna | 42L |
| A2/49 | Telematics services and GPS antenna | 55L |
| A2/54 | Left emergency call system antenna | 51L |
| A2/55 | Right emergency call system antenna | 45L |
| A28/11 | Multifunction antenna | 35L |
| A28/11 | Multifunction antenna | 66L |
| A28/11 | Multifunction antenna | 61L |
| A40/3 | COMAND control unit | 12L |
| A40/3 | COMAND control unit | 16L |
| A40/3 | COMAND control unit | 29L |
| CAN L | Hybrid CAN | 20K |
| Code 350 | Ecall Europe emergency call system | 22E |
| Code 350 | Ecall Europe emergency call system | 28E |
| Code 350 | Ecall Europe emergency call system | 45D |
| Code 350 | Ecall Europe emergency call system | 52D |
| Code 386 | Comfort telephony | 45E |
| Code 810 | Sound system | 14D |
| Code 810 | Sound system | 9D |
| Code 810 | Sound system | 22H |
| Code 811 | Advanced sound system | 14E |
| Code 811 | Advanced sound system | 9E |
| Code 811 | Advanced sound system | 24H |
| Code B54 | Live Traffic Information | 28E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18D |
| Code Z07 | Top protection | 36E |
| Code Z07 | Top protection | 57D |
| F1/3 | Right A-pillar fuse box | 4L |
| F1/3f309 | Fuse 309 | 2K |
| H4/27 | Center instrument panel speaker | 23L |
| H4/78 | Center instrument panel midrange speaker | 26L |
| N112/2 | Telematics services communication module | 4A |
| N112/2 | Telematics services communication module | 12A |
| N112/2 | Telematics services communication module | 20A |
| N112/2 | Telematics services communication module | 28A |
| N112/2 | Telematics services communication module | 36A |
| N112/2 | Telematics services communication module | 44A |
| N112/2 | Telematics services communication module | 53A |
| N112/2 | Telematics services communication module | 61A |
| N40/3 | Sound system amplifier control unit | 11L |
| N40/3 | Sound system amplifier control unit | 11L |
| N40/3 | Sound system amplifier control unit | 16L |
| N40/3 | Sound system amplifier control unit | 15L |
| U1217 | Valid for model series 217 | 14D |
| U1217 | Valid for model series 217 | 4F |
| U1217 | Valid for model series 217 | 22D |
| U1217 | Valid for model series 217 | 32D |
| U1217 | Valid for model series 217 | 39E |
| U1217 | Valid for model series 217 | 52D |
| U1222 | Valid for model series 222 | 3F |
| U1222 | Valid for model series 222 | 9D |
| U1222 | Valid for model series 222 | 22D |
| U1222 | Valid for model series 222 | 32E |
| U1222 | Valid for model series 222 | 32D |
| U1222 | Valid for model series 222 | 36E |
| U1222 | Valid for model series 222 | 45D |
| U1222 | Valid for model series 222 | 57D |
| U1222 | Valid for model series 222 | 64D |
| U296 | Not valid for expanded sound system | 14E |
| U296 | Not valid for expanded sound system | 9E |
| U302 | Valid without comfort telephony | 64D |
| U500 | Not valid for sound system | 14E |
| U500 | Not valid for sound system | 9E |
| W6 | Left wheel arch trunk ground point | 4E |
| X11/4 | Diagnostic connector | 8L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 23G |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 20L |
| X50/1 | Roof antenna line electrical connector, special-purpose vehicle | 37G |
| X50/1 | Roof antenna line electrical connector, special-purpose vehicle | 60H |
| Z1z12 | Circuit 31 connector sleeve | 3G |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 8G |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 7G |
