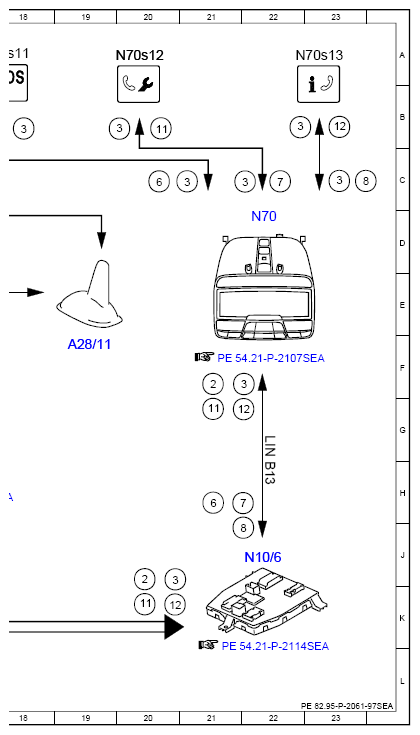

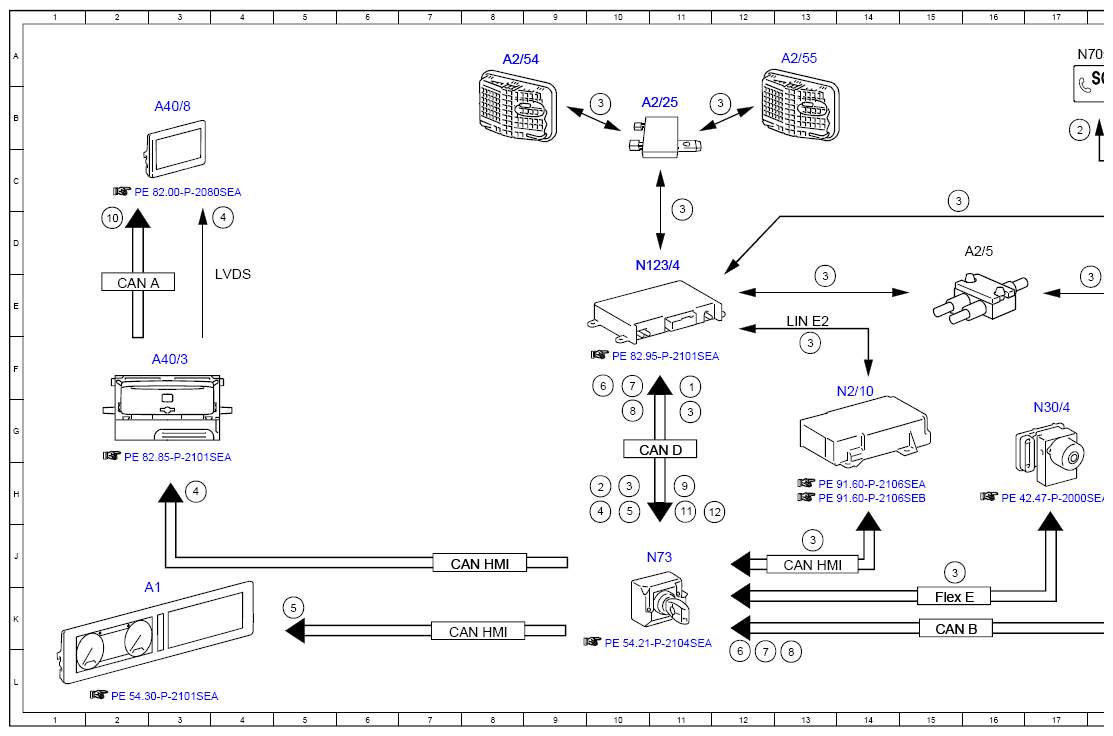

Electrical Function Diagram For Status Display Of Emergency Call System, Function - PE82.95-P-2061-97SEA
Model 222 With Code 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 11F |
| 10 | Switch-on request, signal | 2D |
| 11 | Breakdown assistance button, status indicator | 11H |
| 11 | Breakdown assistance button, status indicator | 20B |
| 11 | Breakdown assistance button, status indicator | 21G |
| 11 | Breakdown assistance button, status indicator | 20K |
| 12 | MB-Info button, status indicator | 23B |
| 12 | MB-Info button, status indicator | 12H |
| 12 | MB-Info button, status indicator | 20K |
| 12 | MB-Info button, status indicator | 22G |
| 2 | SOS button, status indicator | 10H |
| 2 | SOS button, status indicator | 17B |
| 2 | SOS button, status indicator | 20J |
| 2 | SOS button, status indicator | 21F |
| 3 | Check signal, signal | 15J |
| 3 | Check signal, signal | 13J |
| 3 | Check signal, signal | 11G |
| 3 | Check signal, signal | 11D |
| 3 | Check signal, signal | 13F |
| 3 | Check signal, signal | 13E |
| 3 | Check signal, signal | 18E |
| 3 | Check signal, signal | 10H |
| 3 | Check signal, signal | 15C |
| 3 | Check signal, signal | 22F |
| 3 | Check signal, signal | 20J |
| 3 | Check signal, signal | 18B |
| 3 | Check signal, signal | 21C |
| 3 | Check signal, signal | 20B |
| 3 | Check signal, signal | 22C |
| 3 | Check signal, signal | 22B |
| 3 | Check signal, signal | 23C |
| 3 | Check signal, signal | 10B |
| 3 | Check signal, signal | 12B |
| 4 | Audio/COMAND display, message | 3H |
| 4 | Audio/COMAND display, message | 10H |
| 4 | Audio/COMAND display, message | 4D |
| 5 | Instrument cluster, message | 5K |
| 5 | Instrument cluster, message | 10H |
| 6 | Manual emergency call, signal | 10F |
| 6 | Manual emergency call, signal | 21H |
| 6 | Manual emergency call, signal | 12L |
| 6 | Manual emergency call, signal | 20C |
| 7 | Breakdown assistance, signal | 10F |
| 7 | Breakdown assistance, signal | 21H |
| 7 | Breakdown assistance, signal | 12L |
| 7 | Breakdown assistance, signal | 22C |
| 8 | MB-Info, signal | 10G |
| 8 | MB-Info, signal | 21J |
| 8 | MB-Info, signal | 13L |
| 8 | MB-Info, signal | 23C |
| 9 | Unlock central locking, request | 11H |
| A1 | Instrument cluster | 3K |
| A2/25 | Emergency call system antenna splitter | 11B |
| A2/54 | Left emergency call system antenna | 8A |
| A2/55 | Right emergency call system antenna | 13A |
| A28/11 | Multifunction antenna | 19F |
| A40/3 | COMAND control unit | 3F |
| A40/8 | Audio/COMAND display | 3B |
| CAN A | Telematics CAN | 2E |
| CAN B | Interior CAN | 15K |
| CAN D | Diagnostic CAN | 11G |
| CAN HMI | User interface CAN | 8K |
| CAN HMI | User interface CAN | 8J |
| CAN HMI | User interface CAN | 13J |
| Flex E | Chassis FlexRay | 15K |
| LIN B13 | Roof LIN | 22G |
| LIN E2 | Seat occupied recognition LIN | 13E |
| LVDS | Low voltage differential signal | 4E |
| N10/6 | Front SAM control unit | 22J |
| N123/4 | Emergency call system control unit | 10D |
| N2/10 | Supplemental restraint system control unit | 13F |
| N30/4 | Electronic Stability Program control unit | 17G |
| N70 | Overhead control panel control unit | 22D |
| N70s11 | SOS button | 17A |
| N70s12 | Breakdown assistance button | 19A |
| N70s13 | MB-Info button | 23A |
| N73 | Electronic ignition switch control unit | 11J |
