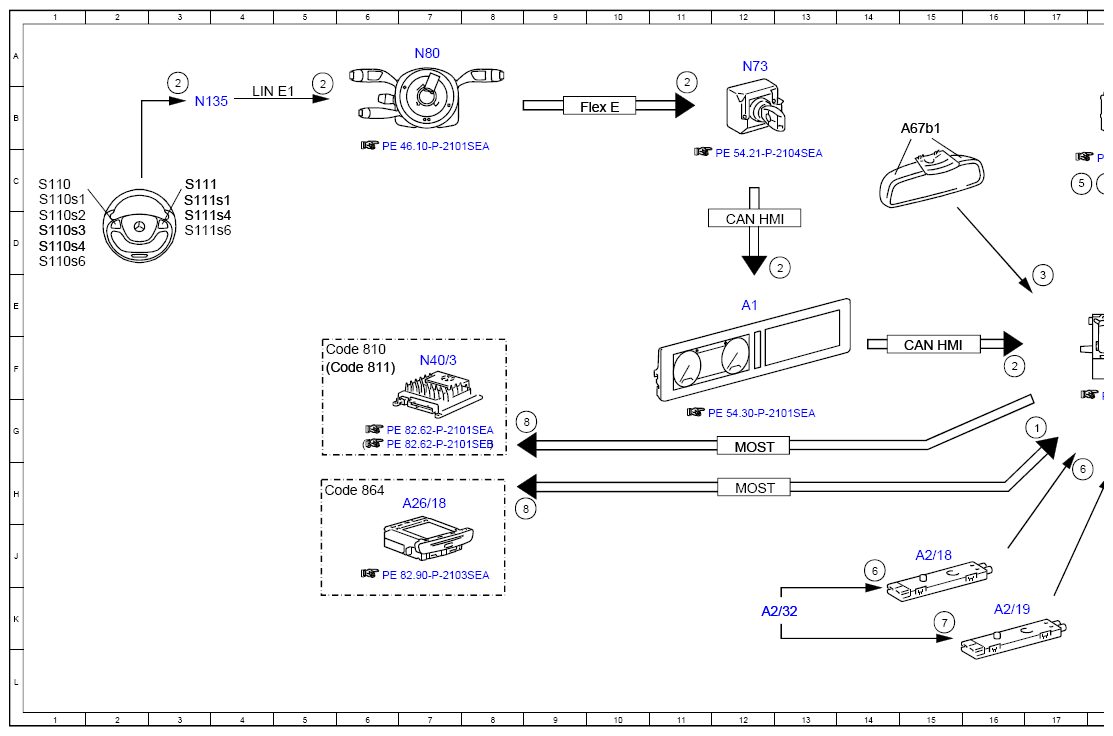

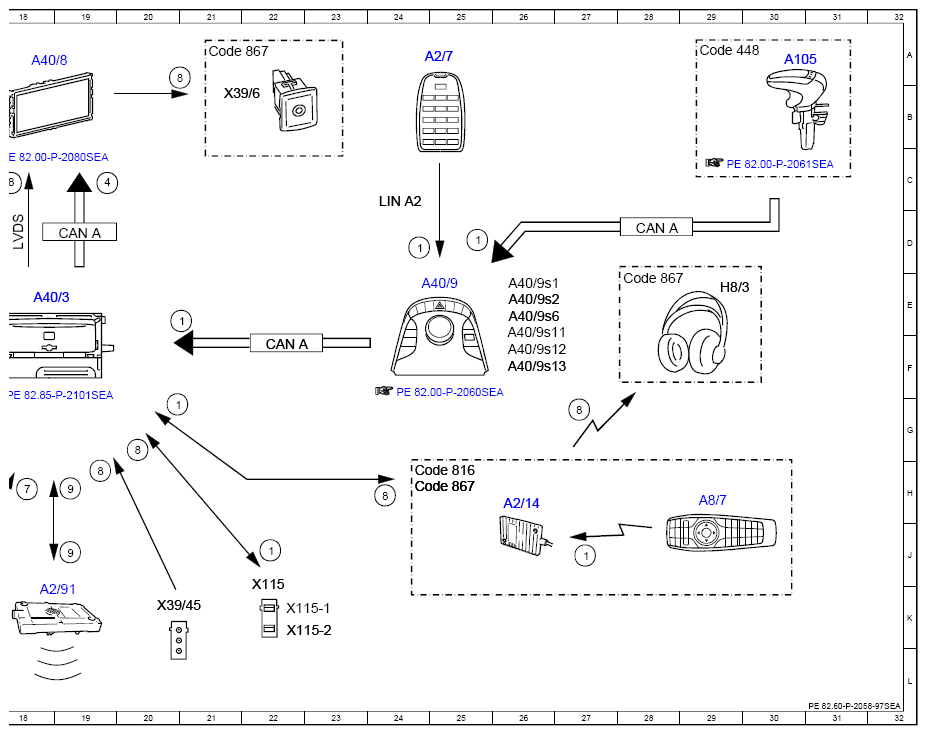

Electrical Function Diagram For Audio Mode, Function - PE82.60-P-2058-97SEA
Model 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 21E |
| 1 | Operation, signal | 17G |
| 1 | Operation, signal | 20G |
| 1 | Operation, signal | 22J |
| 1 | Operation, signal | 27J |
| 1 | Operation, signal | 24D |
| 1 | Operation, signal | 25D |
| 2 | Multifunction steering wheel button group, signal | 3B |
| 2 | Multifunction steering wheel button group, signal | 5B |
| 2 | Multifunction steering wheel button group, signal | 11B |
| 2 | Multifunction steering wheel button group, signal | 13D |
| 2 | Multifunction steering wheel button group, signal | 16F |
| 3 | Voice input, signal | 17E |
| 4 | Switch-on request, signal | 19C |
| 5 | Low voltage differential signal video signal data transfer, signal | 17C |
| 6 | AM/FM antenna, signal | 17H |
| 6 | AM/FM antenna, signal | 14J |
| 7 | FM antenna, signal | 18H |
| 7 | FM antenna, signal | 15K |
| 8 | Audio, signal | 19H |
| 8 | Audio, signal | 20G |
| 8 | Audio, signal | 24H |
| 8 | Audio, signal | 9H |
| 8 | Audio, signal | 9G |
| 8 | Audio, signal | 20A |
| 8 | Audio, signal | 27G |
| 8 | Audio, signal | 18C |
| 9 | Bluetooth® audio/communication | 19J |
| 9 | Bluetooth® audio/communication | 19H |
| A1 | Instrument cluster | 12E |
| A105 | Touchpad | 30A |
| A2/14 | Headphones and remote control antenna | 26H |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 15J |
| A2/19 | FM 2 and DAB antenna amplifier | 16K |
| A2/32 | Rear window antenna | 12K |
| A2/7 | Telephone keypad | 25A |
| A2/91 | Bluetooth® antenna | 18K |
| A26/18 | Rear entertainment controller unit | 7H |
| A40/3 | COMAND control unit | 18E |
| A40/8 | Audio/COMAND display | 18A |
| A40/9 | Audio/COMAND control panel | 25E |
| A40/9s1 | Radio button | 26E |
| A40/9s11 | Audio/COMAND controller | 26F |
| A40/9s12 | Media button | 26F |
| A40/9s13 | Volume control button | 26F |
| A40/9s2 | "Back" button | 26E |
| A40/9s6 | "ON" button | 26E |
| A67b1 | Hands-free system microphone | 15B |
| A8/7 | Remote control | 29H |
| CAN A | Telematics CAN | 22F |
| CAN A | Telematics CAN | 19D |
| CAN A | Telematics CAN | 28D |
| CAN HMI | User interface CAN | 12D |
| CAN HMI | User interface CAN | 15F |
| Code 448 | Touchpad | 29A |
| Code 810 | Sound system | 5F |
| Code 811 | Advanced sound system | 5F |
| Code 816 | Entertainment remote control | 24H |
| Code 864 | Rear compartment entertainment | 5H |
| Code 867 | SPLITVIEW | 21A |
| Code 867 | SPLITVIEW | 24H |
| Code 867 | SPLITVIEW | 28E |
| Flex E | Chassis FlexRay | 10B |
| H8/3 | Radio frequency headphones | 29E |
| LIN A2 | Telephone keypad LIN | 24C |
| LIN E1 | Steering LIN | 4B |
| LVDS | Low voltage differential signal | 18D |
| MOST | Media Oriented System Transport | 12H |
| MOST | Media Oriented System Transport | 12G |
| N135 | Steering wheel electronics | 3B |
| N40/3 | Sound system amplifier control unit | 7F |
| N73 | Electronic ignition switch control unit | 12A |
| N80 | Steering column module control unit | 7A |
| S110 | Left multifunction steering wheel button group | 1C |
| S110s1 | Scroll forward/back button | 1C |
| S110s2 | Voice control system OFF button | 1D |
| S110s3 | System selection button | 1D |
| S110s4 | "Back" button | 1D |
| S110s6 | OK button | 1D |
| S111 | Right multifunction steering wheel button group | 3C |
| S111s1 | Buttons + and - for setting specific functions and volume control | 3C |
| S111s4 | Voice control system ON button | 3D |
| S111s6 | Mute button | 3D |
| X115 | USB electrical connector | 22K |
| X115-1 | USB electrical connector 1 | 22K |
| X115-2 | USB electrical connector 2 | 22K |
| X39/45 | AUX jack electrical connector | 20K |
| X39/6 | Headphones electrical connector (cabled) | 21B |
