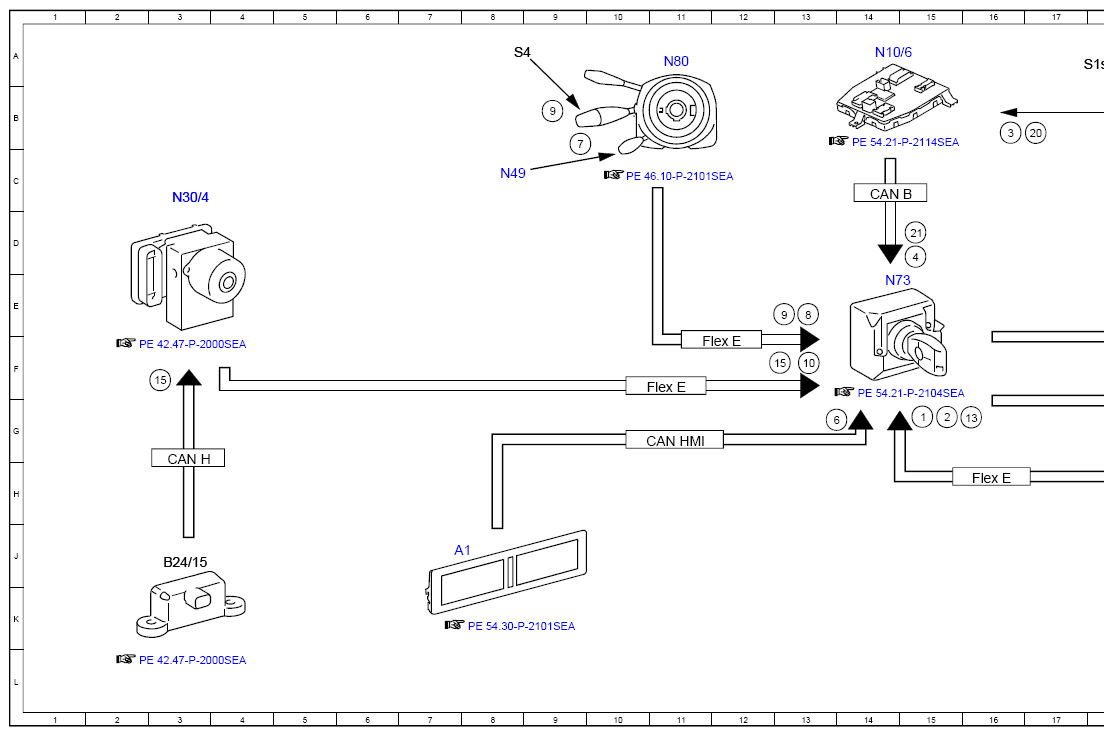

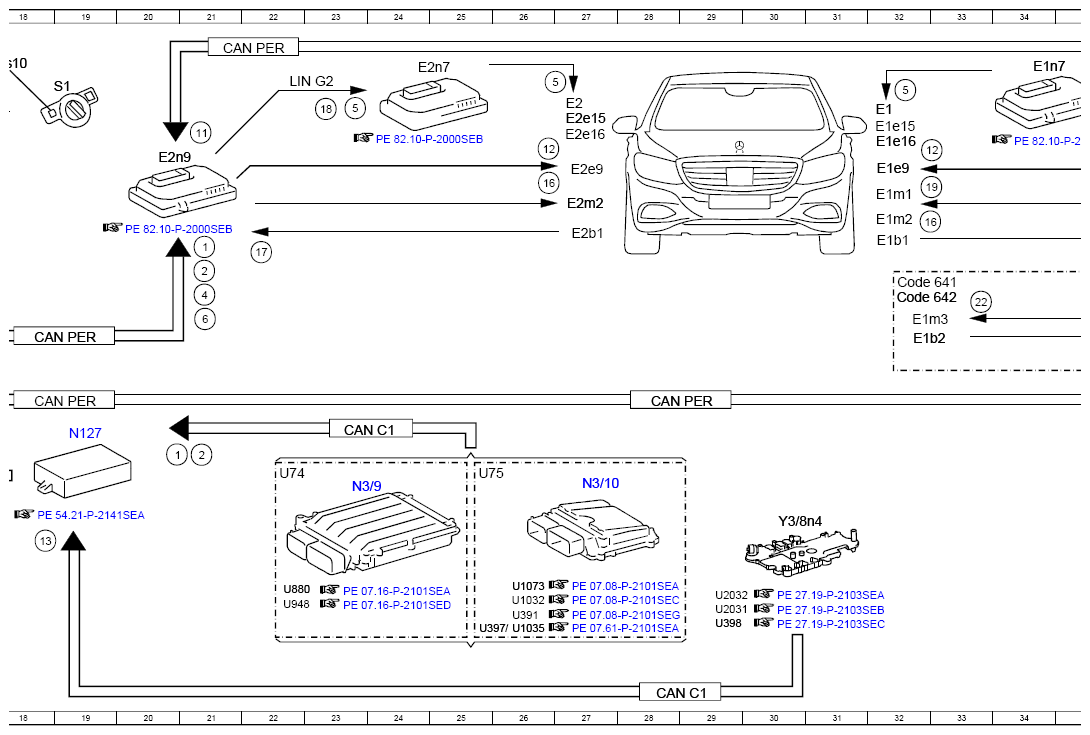

Function Schematic For Intelligent Light System - PE82.10-P-2067-97SEA
Model 217 Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic)
Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 20G |
| 1 | Engine running, signal | 21D |
| 1 | Engine running, signal | 39D |
| 1 | Engine running, signal | 15G |
| 10 | Wheel speed, signal | 13F |
| 10 | Wheel speed, signal | 39E |
| 11 | Synchronization, signal | 21B |
| 12 | Cornering illumination, actuation | 26C |
| 12 | Cornering illumination, actuation | 32C |
| 13 | Gear range, status | 18J |
| 13 | Gear range, status | 16G |
| 14 | Reverse gear, status | 39E |
| 15 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 3F |
| 15 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 13F |
| 15 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 39e |
| 16 | Active curve illumination actuator motor, actuation | 26C |
| 16 | Active curve illumination actuator motor, actuation | 32D |
| 17 | Active curve lights position sensor, signal | 22D |
| 17 | Active curve lights position sensor, signal | 37D |
| 18 | Increase light output, request | 23B |
| 18 | Increase light output, request | 36B |
| 19 | Headlamp range adjustment actuator motor, actuation | 32C |
| 2 | Drivetrain operational, signal | 21G |
| 2 | Drivetrain operational, signal | 21E |
| 2 | Drivetrain operational, signal | 39E |
| 2 | Drivetrain operational, signal | 15G |
| 20 | Rear fog light button, status | 17B |
| 21 | Rear fog light, request | 15D |
| 21 | Rear fog light, request | 39F |
| 22 | Light distribution actuator motor, actuation | 33E |
| 23 | Light distribution position sensor, signal | 37F |
| 3 | Exterior lights switch, status | 16B |
| 4 | Low beams, request | 39E |
| 4 | Low beams, request | 21E |
| 4 | Low beams, request | 15D |
| 5 | Low beams, actuation | 26B |
| 5 | Low beams, actuation | 32B |
| 5 | Low beams, actuation | 36B |
| 5 | Low beams, actuation | 23B |
| 6 | Intelligent Light System, status | 13G |
| 6 | Intelligent Light System, status | 21E |
| 6 | Intelligent Light System, status | 39E |
| 7 | Steering wheel angle sensor, signal | 9B |
| 8 | Steering wheel angle, signal | 13E |
| 8 | Steering wheel angle, signal | 39F |
| 9 | Combination switch, status | 9B |
| 9 | Combination switch, status | 13E |
| 9 | Combination switch, status | 39D |
| A1 | Instrument cluster | 7J |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 3J |
| CAN B | Interior CAN | 14C |
| CAN C1 | Drive train CAN | 23G |
| CAN C1 | Drive train CAN | 28L |
| CAN H | Vehicle dynamics CAN | 3H |
| CAN MM] | User interface CAN | 11G |
| CAN PER | Peripherals CAN | 18G |
| CAN PER | Peripherals CAN | 22A |
| CAN PER | Peripherals CAN | 36A |
| CAN PER | Peripherals CAN | 28G |
| CAN PER | Peripherals CAN | 36G |
| CAN PER | Peripherals CAN | 18F |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 32E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 32E |
| E1 | Left front lamp unit | 32B |
| E1b1 | Left active curve illumination position sensor | 32D |
| E1b2 | Left light distribution position sensor | 32F |
| E1e15 | Left low beam (short range) | 32B |
| E1e16 | Left low beam (long range) | 32B |
| E1e9 | Left cornering illumination | 32C |
| E1m1 | Left headlamp range adjustment actuator motor | 32C |
| E1m2 | Left active curve illumination actuator motor | 32D |
| E1m3 | Left light distribution actuator motor | 32E |
| E1n7 | Actuation module for left front exterior lights LED | 34A |
| E1n9 | Left headlamp control unit | 38C |
| E2 | Right front lamp unit | 27B |
| E2b1 | Right active curve illumination position sensor | 27D |
| E2e15 | Right low beam (short range) | 27B |
| E2e16 | Right low beam (long range) | 27B |
| E2e9 | Right cornering illumination | 27C |
| E2m2 | Right active curve illumination actuator motor | 27C |
| E2n7 | Actuation module for right front exterior lights LED | 24A |
| E2n9 | Right headlamp control unit | 20C |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 16H |
| LIN G1 | Left headlamp LIN | 36B |
| LIN G2 | Right headlamp LIN | 22B |
| N10/6 | Front SAM control unit | 14A |
| N127 | Drivetrain control unit | 19G |
| N3/10 | ME-SFI [ME] control unit | 27H |
| N3/9 | CDI control unit | 23H |
| N30/4 | Electronic Stability Program control unit | 3C |
| N49 | Steering wheel angle sensor | 8C |
| N73 | Electronic ignition switch control unit | 14E |
| N80 | Steering column module control unit | 11A |
| S1 | Exterior lights switch | 18B |
| S1s10 | Rear fog light button | 17A |
| S4 | Combination switch | 8A |
| U1032 | Valid for engine 278 and 157 | 26K |
| U1035 | Valid for gasoline engine 279 | 26K |
| U1073 | Valid for gasoline engine 276.9 | 26K |
| U2031 | Valid for transmission 724 | 29K |
| U2032 | Valid for transmission 722 | 29K |
| U391 | Valid for gasoline engine 276.8 | 26K |
| U397 | Valid for gasoline engine 277 | 25K |
| U398 | Valid for transmission 725 (NAG3) | 29K |
| U74 | Valid for diesel engines | 22H |
| U75 | Valid for gasoline engines | 25H |
| U880 | Valid for diesel engine 642 | 22K |
| U948 | Valid for diesel engine 651 | 22K |
| Y3/8n4 | Fully integrated transmission control, control unit | 30J |
