Overview Of System Components, Telematics - GF82.85-P-9999LF
Model 217, 222 up to model year 2018

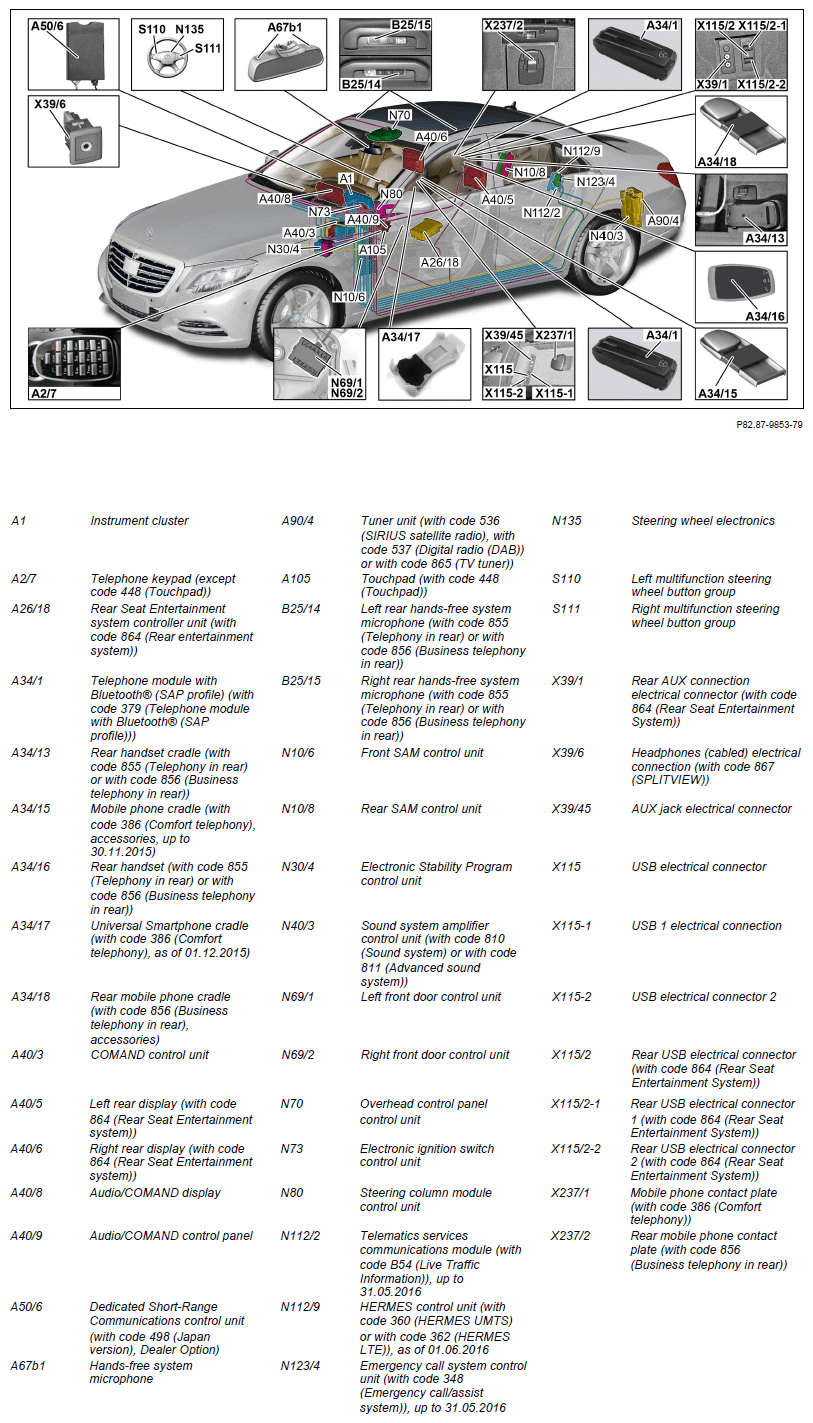

Components except telematics antenna system and except speaker system, shown on model 222.0

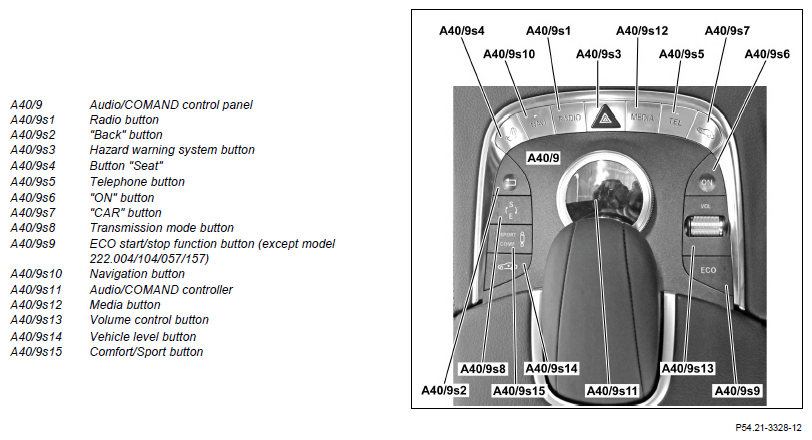

Detailed representation of Audio/COMAND control panel, shown on model 222.0 except models 222.004/057 and except code 487 (Active Body Control (ABC))

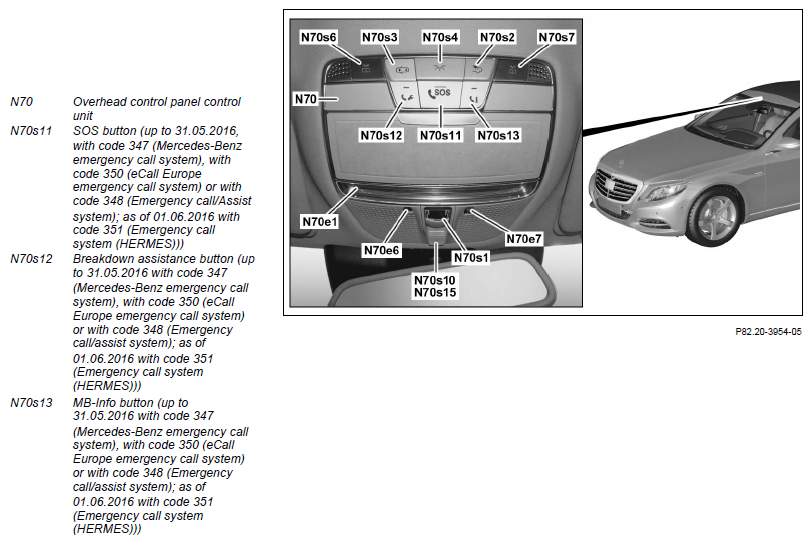

Detailed representation of overhead control panel control module, shown on model 222.0, valid for model 222 and model 217.3

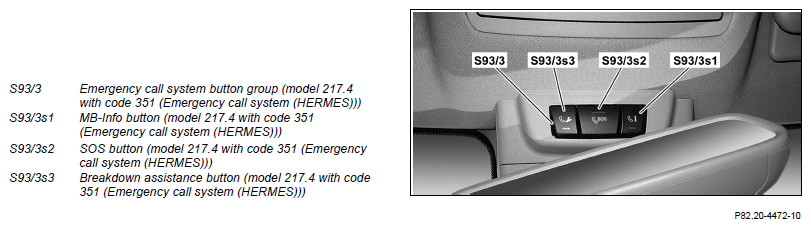

Shown on emergency call system button group (S93/3) on model 217.4 with code 351 (Emergency call system (HERMES))

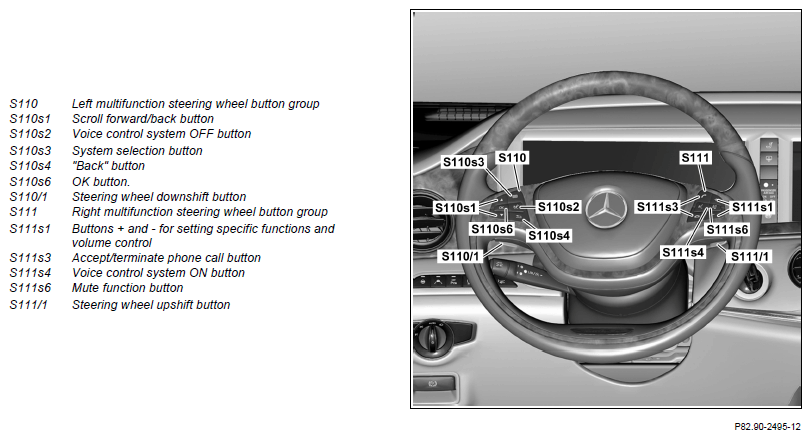

Detailed representation of left multifunction steering wheel button group and right multifunction steering wheel button group, shown on model 222.0

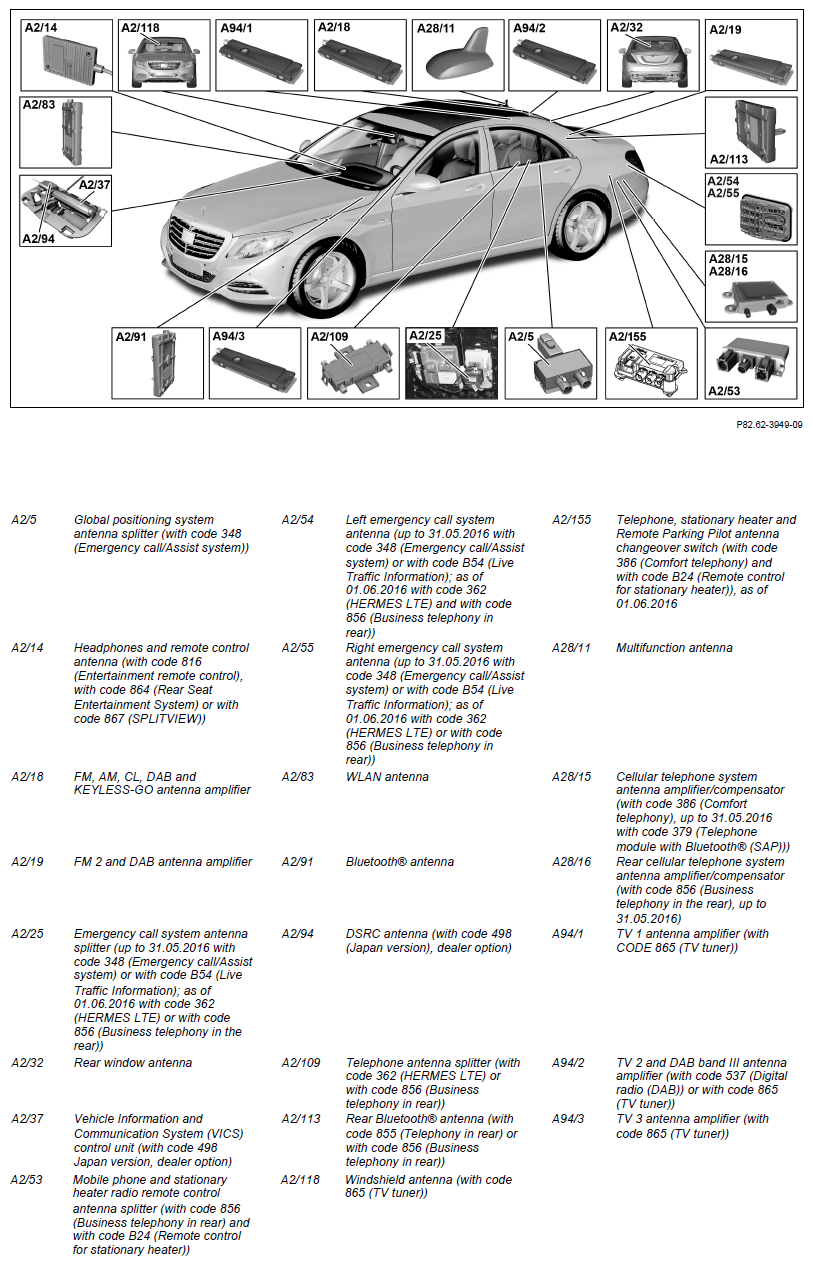

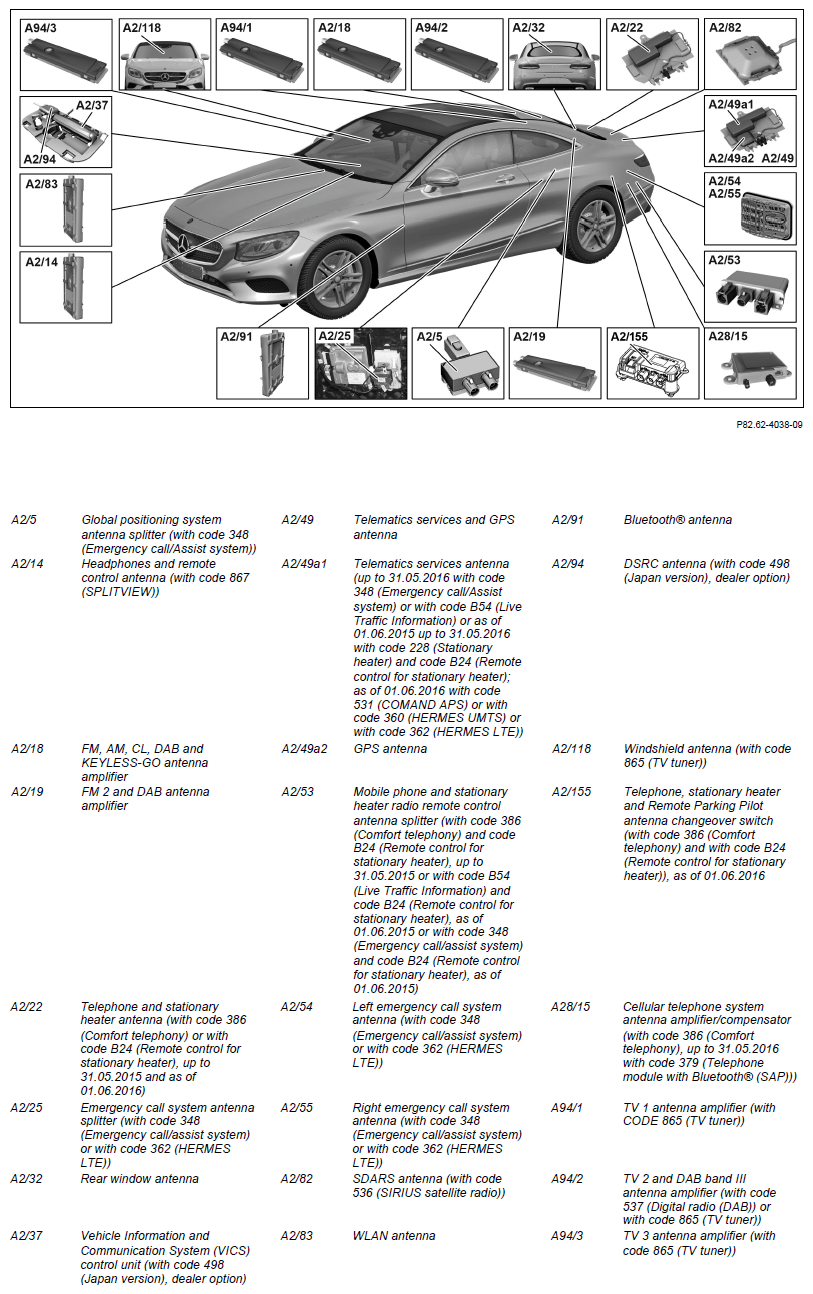

Telematics antenna system, shown on model 222.0

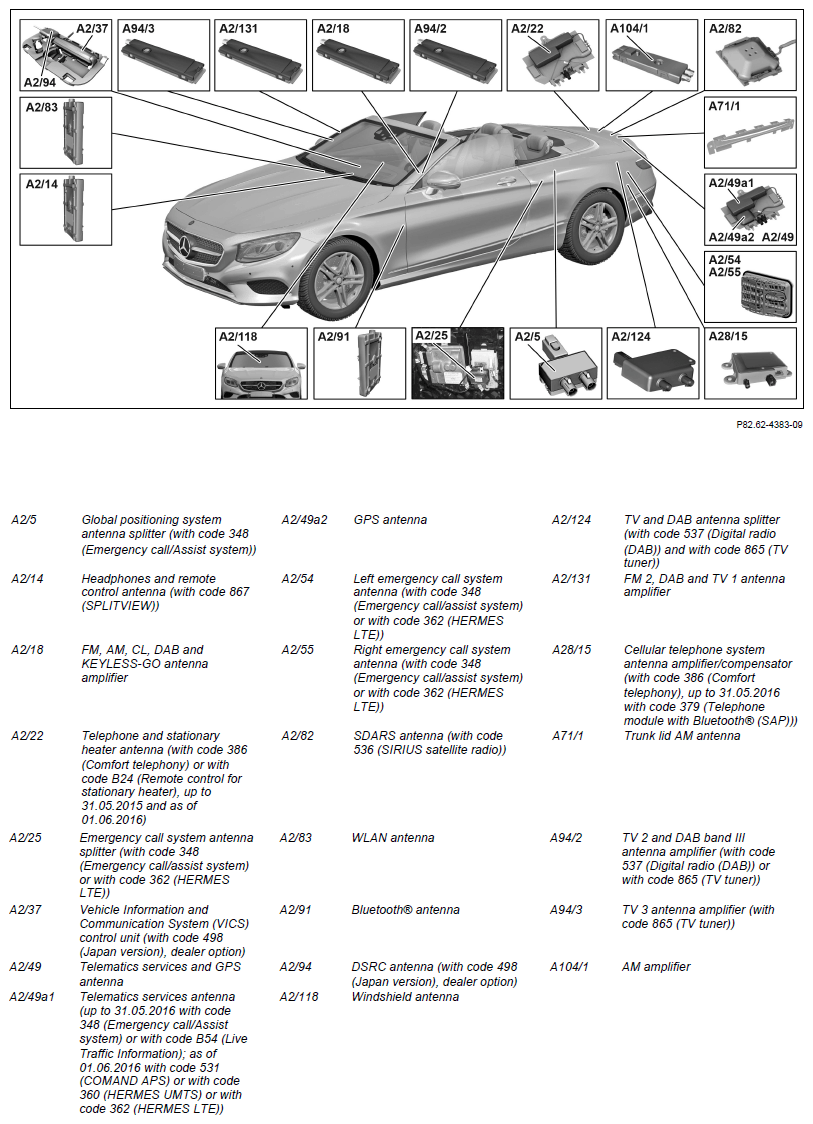

Telematics antenna system, shown on model 217.3
Telematics antenna system, shown on model 217.4

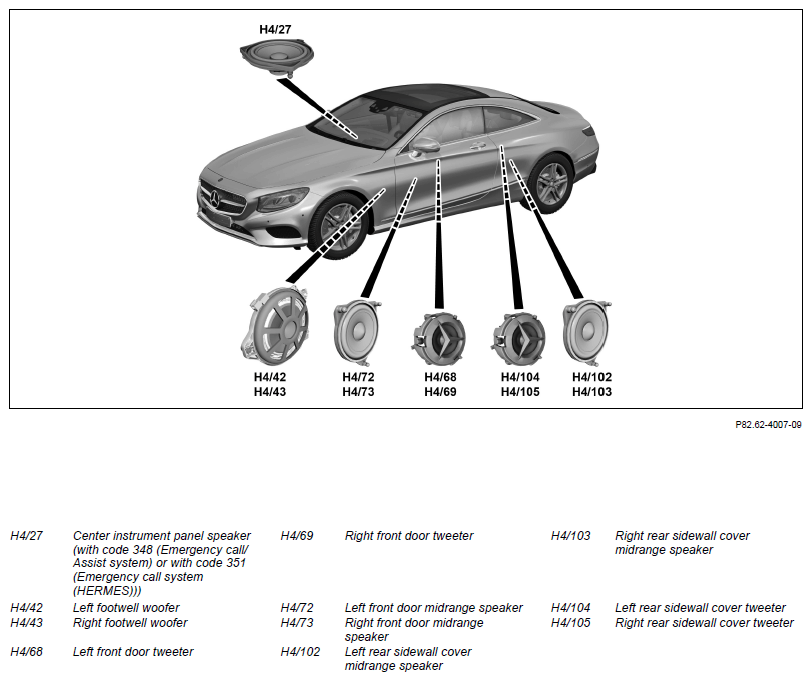

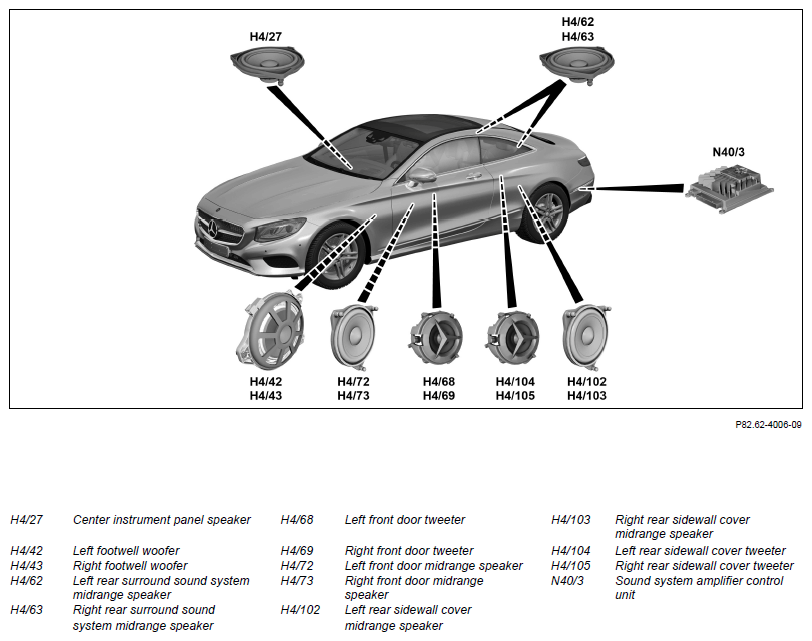

Speaker system except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 222.0

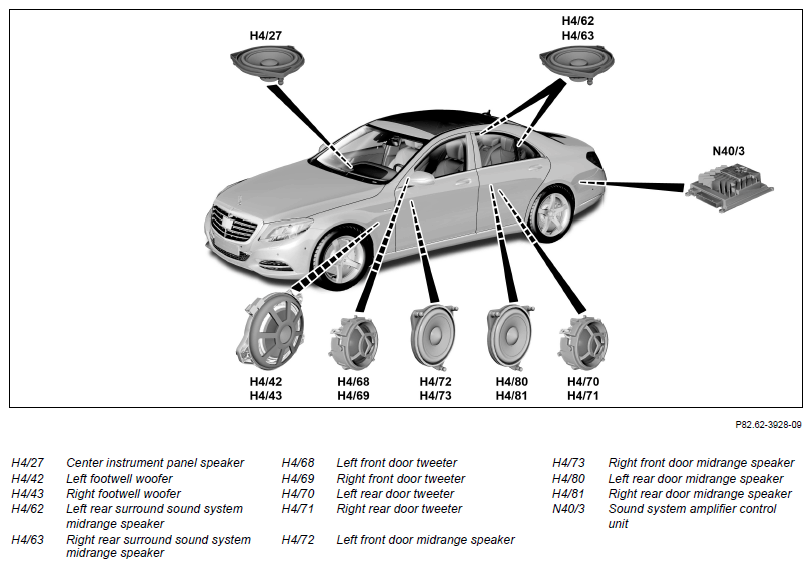

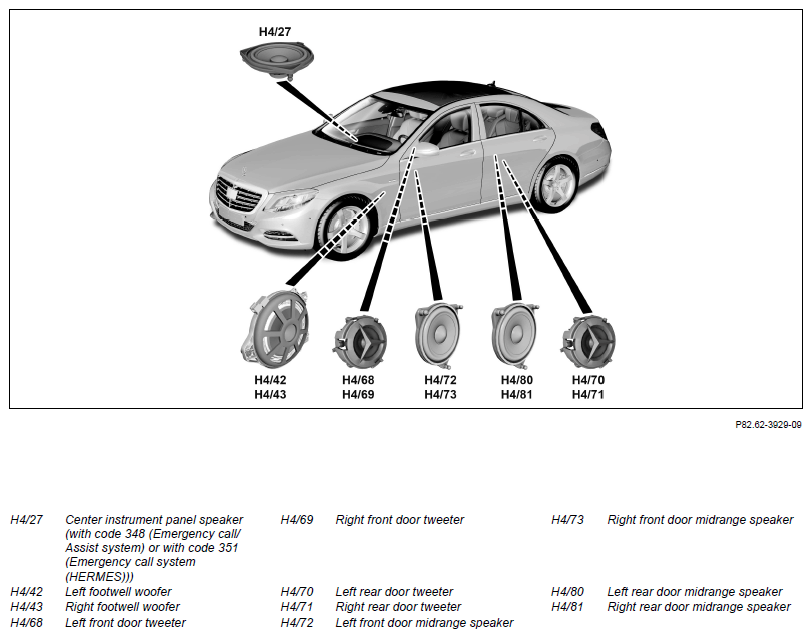

Speaker system, except code 810 (Sound system) and except code 811 (Advanced sound system), shown on model 217.3, also valid for model 217.4

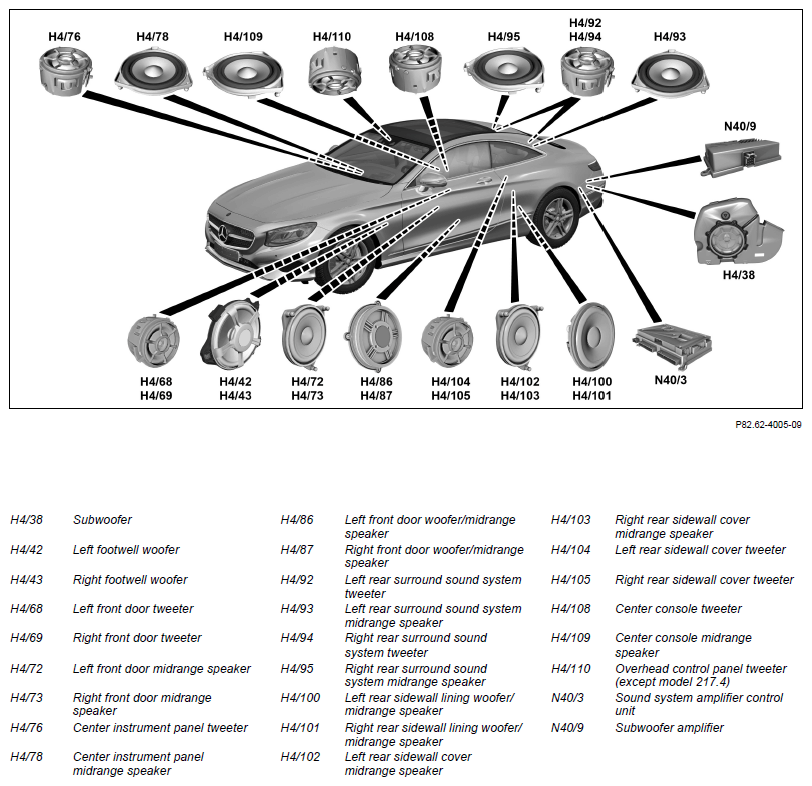

Speaker system with code 810 (Sound system), shown on model 222.0
Speaker system with code 810 (Sound system), shown on model 217.3, also valid for model 217.4

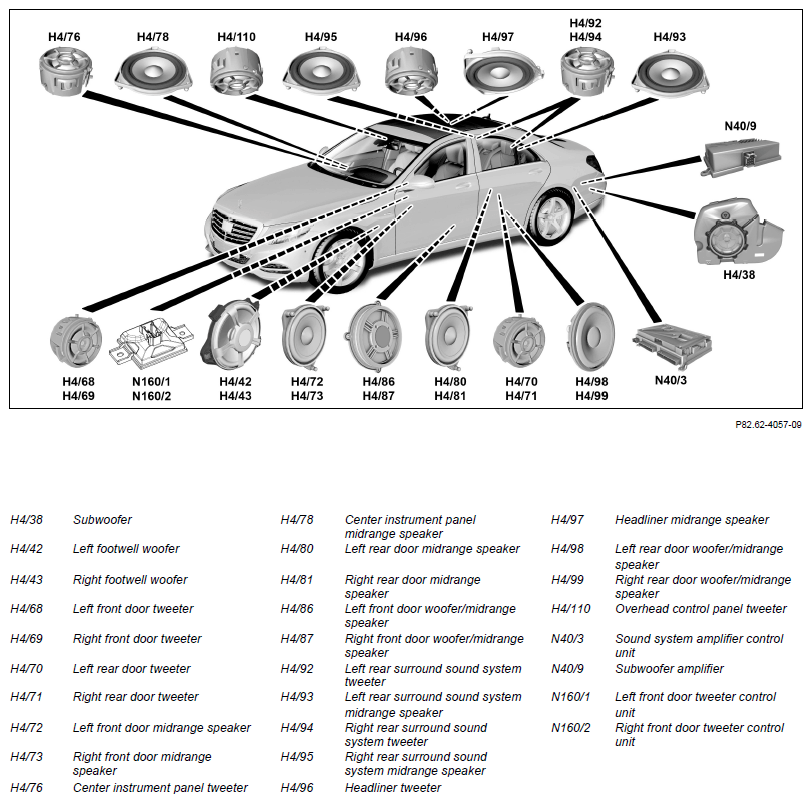

Speaker system with code 811 (Advanced sound system), shown on model 222.0
Speaker system with code 811 (Advanced sound system), shown on model 217.3, also valid for model 217.4
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Rear entertainment system controller unit, component description | Model 222 up to model year 2018 with code 864 (Rear compartment entertainment package) A26/18 | GF82.90-P-4021LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Component description for rear display left/right | Model 222 up to model year 2018 with code 864 (Rear compartment entertainment package) A40/5, A40/6 | GF82.90-P-4020LF | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150LF | |
| Tuner unit, component description | Model 217, 222 up to model year 2018 with code 536 (SIRIUS satellite radio) Model 217, 222 up to model year 2018 with code 537 (Digital radio (DAB)) Model 217, 222 up to model year 2018 with code 865 (TV tuner) A90/4 |
GF82.60-P-5015LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for Electronic Stability Program control unit | Model 222.004/057/104/157/163 up to model year 2018 N30/4 | GF42.45-P-5119LFH | |
| Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 | GF42.45-P-5119LF | ||
| Component description for sound system amplifier control unit | Model 217, 222 up to model year 2018 with code 810 (Sound system) except code 811 (Advanced sound system) N40/3 | GF82.62-P-5010LF | |
| Model 217, 222 up to model year 2018 with code 811 (Advanced sound system) except code 810 (Sound system) N40/3 | GF82.62-P-5010LFA | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Telematics services communications module, component description | Model 217, 222 up to model year 2017 with code 350 (Ecall emergency call system, Europe) Model 217, 222 up to model year 2017 with code B54 (Live Traffic Information) N112/2 |
GF82.85-P-0220LF | |
| HERMES control unit, component description | Model 217, 222 up to model year 2018 with code 360 (HERMES UMTS) Model 217, 222 up to model year 2018 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Component description for emergency call system control unit | Model 217, 222 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212LFU | |
| Telephone keypad, component description | Model 217, 222 up to model year 2018 except code 448 (Touchpad) A2/7 | GF82.70-P-0101LF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501LF | |
| Touchpad, component description | Model 217, 222 up to model year 2018 with code 448 (Touchpad) A105 | GF54.21-P-4511LF | |
| Table of contents for function description, telematics | GF82.85-P-0993LF |
