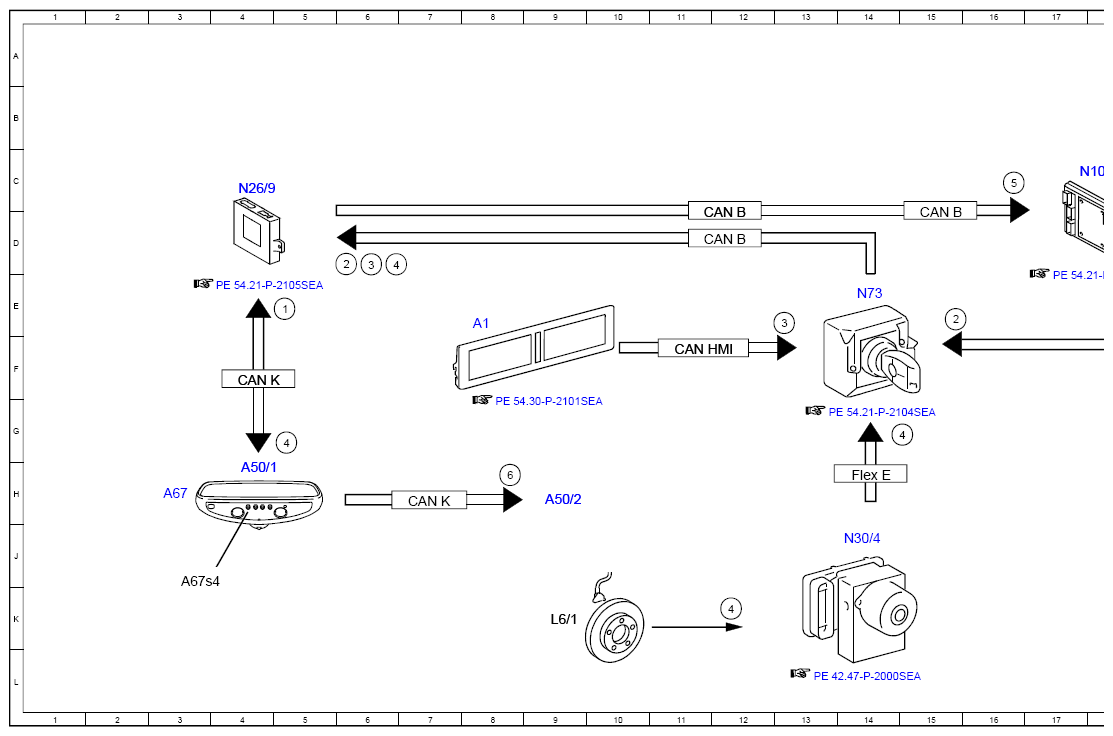

Electrical Function Schematic For Mirror Taximeter - PE82.25-P-2064-97SEA
Model 222 with code 338 (Odometer in rear-view mirror) with code 965 (Taxi/rental car - electrical pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Mirror taximeter button 1, status | 5E |
| 2 | Front passenger seat occupied recognition, status | 6D |
| 2 | Front passenger seat occupied recognition, status | 15E |
| 3 | Vehicle speed, signal | 6D |
| 3 | Vehicle speed, signal | 13E |
| 4 | Wheel speed, signal | 6D |
| 4 | Wheel speed, signal | 5G |
| 4 | Wheel speed, signal | 15G |
| 4 | Wheel speed, signal | 12K |
| 5 | Interior lamp, request | 16C |
| 6 | Card reader and printer, request | 6H |
| A1 | Instrument cluster | 8E |
| A50/1 | Mirror taximeter | 4H |
| A50/2 | Card reader and printer | 9H |
| A67 | Inside rearview mirror | 3H |
| A67s4 | Mirror taximeter button 1 | 3J |
| CAN B | Interior CAN | 15D |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 12D |
| CAN HMI | User interface CAN | 19F |
| CAN HMI | User interface CAN | 11F |
| CAN K | Multifunction CAN | 4F |
| CAN K | Multifunction CAN | 7H |
| Flex E | Chassis FlexRay | 14H |
| L6/1 | Left front axle rpm sensor | 9K |
| N10/6 | Front SAM control unit | 18C |
| N2/10 | Supplemental restraint system control unit | 19G |
| N26/9 | Special-purpose vehicle multifunction control unit | 4C |
| N30/4 | Electronic Stability Program control unit | 14J |
| N73 | Electronic ignition switch control unit | 14E |
