Remove/Install Wiper System - AR82.30-P-6400LF
Model 217, 222

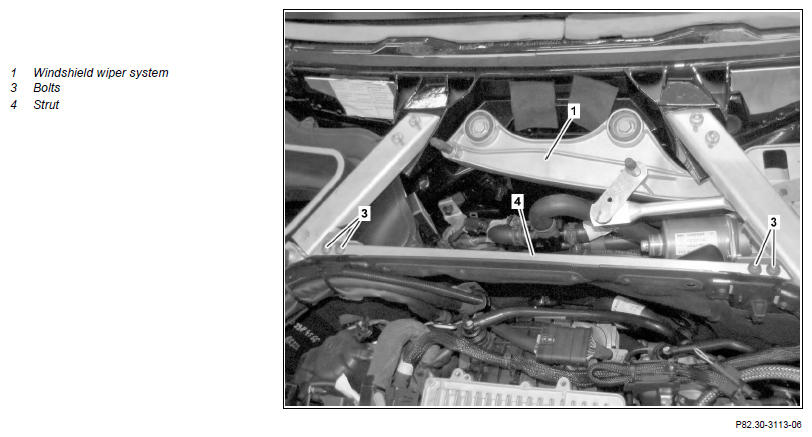

Shown on Model 222
Shown on Model 222
Shown on Model 222
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove wiper arms. | AR82.30-P-6100LF | |

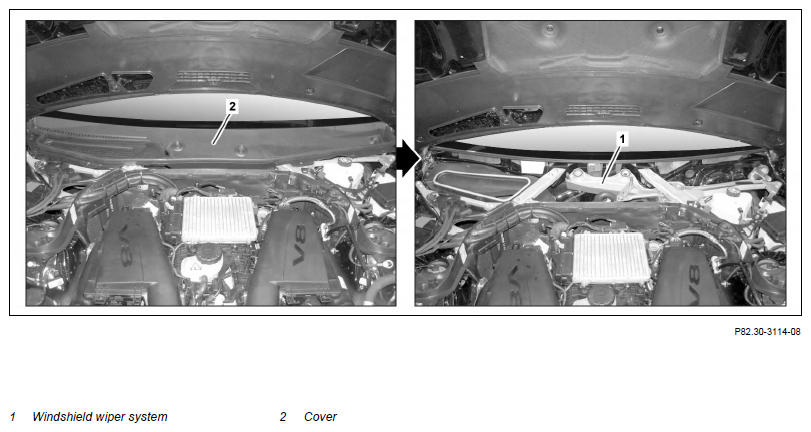

| 2 | Remove cover (2). | ||
| 3 | Unscrew bolts (3). | ||
| 4 | Remove strut (4). | ||

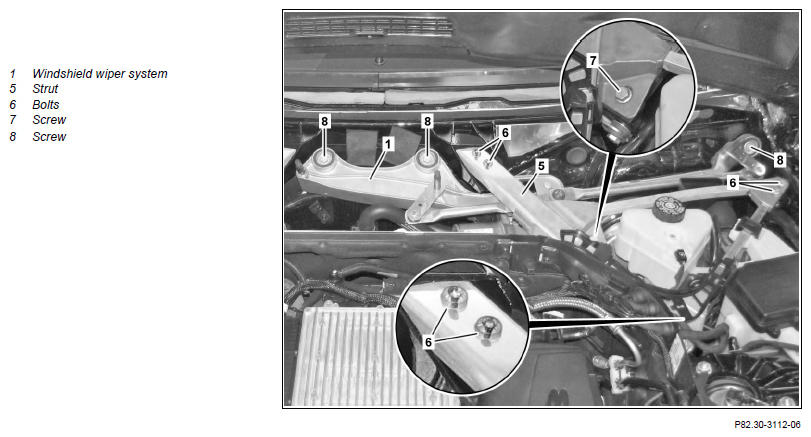

| 5 | Remove screws (6, 7). | *BA62.25-P-1001-01B | |
| 6 | Remove strut (5). | ||
| 7 | Remove bolts (8). | *BA82.30-P-1001-01P | |
| 8 | Lift up windshield wiper system (1) and disconnect electrical connector from motor of windshield wiper system (1). | ||
| 9 | Remove windshield wiper system (1). | ||
| 10 | Install in the reverse order |
FIREWALL
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA62.25-P-1001-01B | Bolt, reinforcement to firewall/longitudinal member/reinforcement, center | M6 | Nm | 9 | 9 |
| M8 | Nm | 30 | 30 | ||
WINDSHIELD WIPER
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA82.30-P-1001-01P | Bolt/nut, windshield wiper system to body | M6 | Nm | - | - |
| M8 | Nm | 11 | 11 | ||
