Remove/Install Tuner Unit - AR82.60-P-2002LF
Model 217, 222
up to Model year 2018
With Code 536 (Sirius satellite radio complete system)
Model 217, 222
up to Model year 2018
With Code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 217, 222
up to Model year 2018
With Code 865 (digital TV)
Shown on Model 222.004
Shown on Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove luggage compartment trim on left side | Model 217, 222 up to model year 2018 with code 536 (Sirius satellite radio complete system) Model 217, 222 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 217, 222 up to model year 2018 with code 865 (digital TV) |
|
| Model 217.4 up to model year 2018 with code 536 (Sirius satellite radio complete system) Model 217.4 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 217.4 up to model year 2018 with code 865 (digital TV) |
AR68.30-P-4800LCA | ||
| Model 217.3 up to model year 2018 with code 536 (Sirius satellite radio complete system) Model 217.3 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 217.3 up to model year 2018 with code 865 (digital TV) |
AR68.30-P-4600LC | ||
| Model 222 up to model year 2018 with code 865 (digital TV) except code 811 (Advanced sound system) |
AR68.30-P-4600LF | ||
| 2.2 | Remove woofer in rear passenger compartment | Model 222 up to model year 2018 with code 536 (Sirius satellite radio complete system) with code 811 (Advanced sound system) Model 222 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 811 (Advanced sound system) Model 222 up to model year 2018 with code 811 (Advanced sound system) with code 865 (digital TV) |
|
| AR82.62-P-7839LF | |||

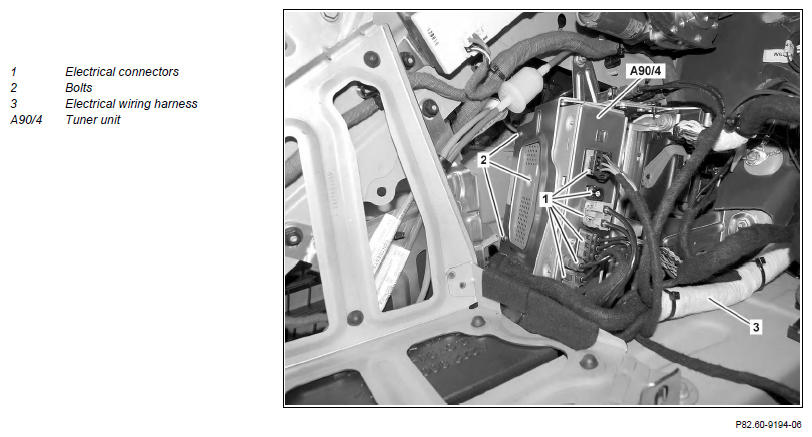

| 3.1 | Detach electrical wiring harness (3) | Model 217.3, 222 up to model year 2018 with code 536 (Sirius satellite radio complete system) Model 217.3, 222 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 217.3, 222 up to model year 2018 with code 865 (digital TV) |
|

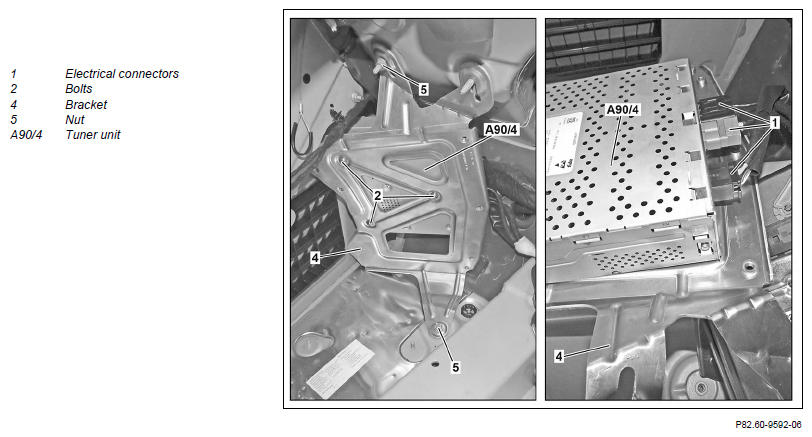

| 3.2 | Unscrew nuts (5) and remove holder (4) to rear | Model 217.4 up to model year 2018 with code 536 (Sirius satellite radio complete system) Model 217.4 up to model year 2018 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 217.4 up to model year 2018 with code 865 (digital TV) |
|
| 4 | Separate electrical connections (1) | ||
| 5 | Unscrew screws/bolts (2) and remove tuner unit (A90/4) | ||
| 6 | Install in the reverse order |
