Remove/Install Telephone Control Unit - AR82.70-P-7380LFM
Model 217, 222
As Of Model year 2018
With Code 379 (Telephone module with Bluetooth® (SAP profile))
Model 222
As Of Model year 2018
With Code 855 (Telephony in rear passenger compartment)
Model 222
As Of Model year 2018
With Code 856 (Telephone handset in rear armrest)
Shown in Model 222 except for code P21 (air quality package)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of the telephone control unit (N123/9) | When replacing the telephone control unit (N123/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Open the glove compartment | ||

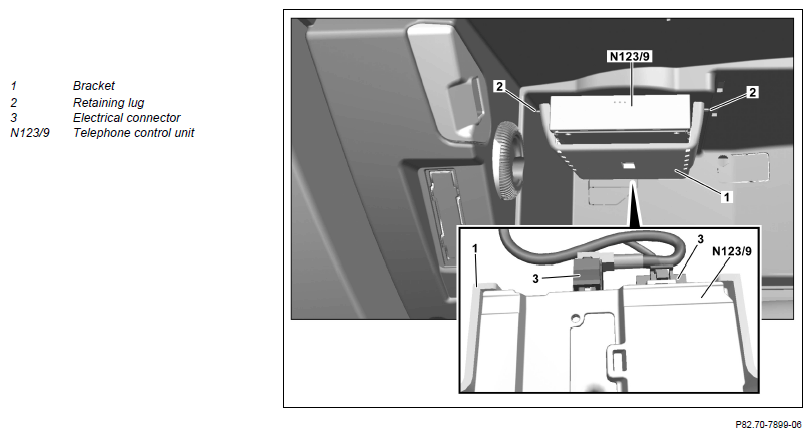

| 3 | Release retaining lugs (2) and pull holder (1) to the rear | ||
| 4 | Remove the holder (1) with the telephone control unit (N123/9) until the electrical connectors (3) are accessible | ||
| 5 | Detach electrical connectors (3) | ||
| 6 | Remove telephone control unit (N123/9) from the holder (1) | When replacing the telephone control unit (N123/9). | |
| 7 | Install in the reverse order |
