Remove/Install Telematics Services Communications Module Control Unit - AR82.85-P-0020LF
Model 222.0/1/9
With Code B54 (Live Traffic Information)

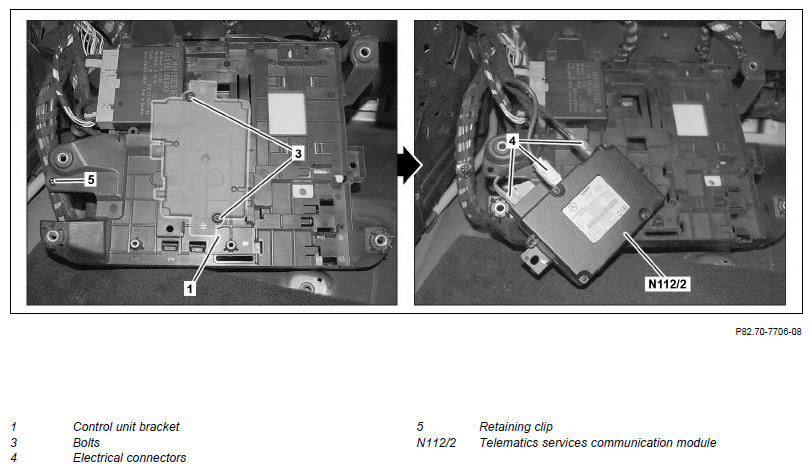

Fig 1: Telematics Services Communications Module Control Unit Components Location - Model 222.1 With Code B54
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of the telematics services communications module (N112/2) using the diagnostic system | When replacing telematics services communications module (N112/2). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove panels at front in trunk | AR68.30-P-4600LF | |

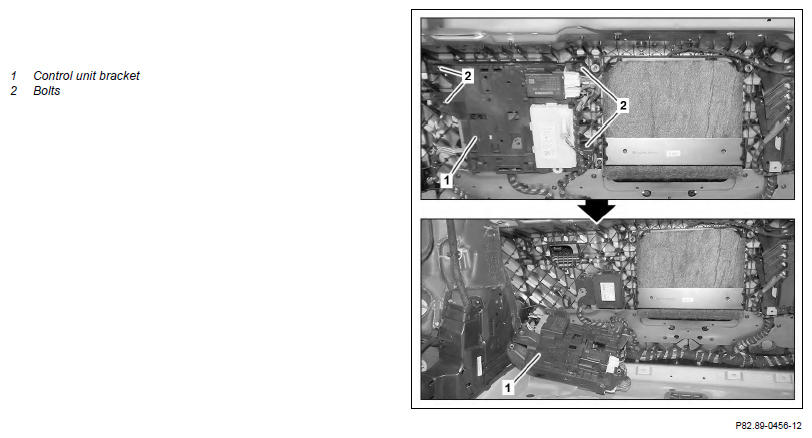

| 3 | Remove screws/bolts (2) and left control unit bracket (1) in trunk and fold down toward front | ||
| 4 | Unclip retaining clip (5) from control unit bracket (1) | ||
| 5 | Remove screws/bolts (3) of telematics services communications module (N112/2) | ||
| 6 | Remove telematics services communications module (N112/2) toward left out of control unit bracket (1) | ||
| 7 | Disconnect electrical connectors (4) at telematics services communications module (N112/2) | ||
| 8 | Install in the reverse order |
