Remove/Install Speaker In Overhead Control Panel - AR82.62-P-7883LFM
Model 217.3
Model 222
As Of Model year 2018
With Code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

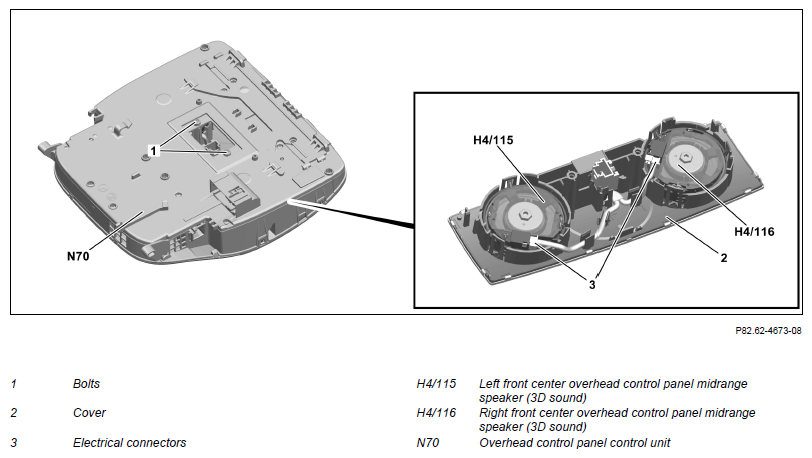

| 1 | Remove overhead control panel control unit (N70) | AR82.20-P-1000LF | |
| 2 | Remove bolts (1) | ||
| 3 | Remove panel (2) with left front overhead control panel center midrange speaker (3D sound) (H4/115) and right front overhead control panel center midrange speaker (3D sound) (H4/116) from overhead control panel (N70) | ||
| 4 | Release and disconnect electrical connections (3) | ||
| 5 | Unclip left front overhead control panel center midrange speaker (3D sound) (H4/115) and right front overhead control panel center midrange speaker (3D sound) (H4/116) from panel (2) | ||
| 6 | Install in the reverse order |
