Remove/Install Sound System Amplifier Control Unit - AR82.62-P-7723LF
Model 222
With Code 810 (Premium sound system)
Model 222
With Code 811 (High-End sound system)
MODIFICATION NOTES
| 15.09.2017 | As of model year 2018, with code 498 (Japan version), remove the TV tuner. | Operation step 3.2 |
Shown With Code 865 (TV tuner)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of sound system amplifier control unit (N40/3) | When replacing the sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Remove tuner unit (A90/4) | Model 222 up to model year 2018 with code 810 (Premium sound system) with code 865 (digital TV) Model 222 up to model year 2018 with code 811 (High-End sound system) with code 865 (digital TV) |
|
| AR82.60-P-2002LF | |||
| 3.2 | Remove TV tuner | Model 222 as of model year 2018 with code 498 (Japanese version) with code 810 (Premium sound system) with code 865 (digital TV) Model 222 as of model year 2018 with code 498 (Japanese version) with code 811 (High-End sound system) with code 865 (digital TV) |
|
| AR82.85-P-7366LFN | |||

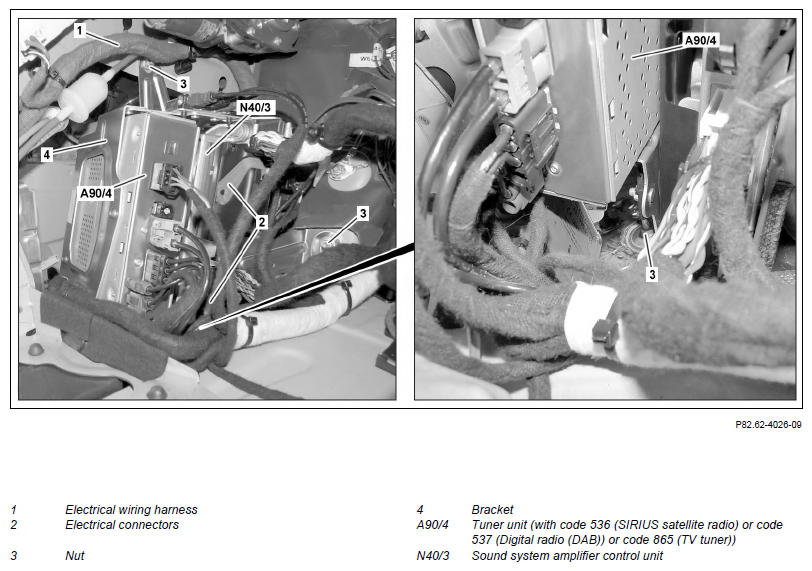

| 4 | Unfasten electrical wiring harness (1) and push to side | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Remove the sound system amplifier control unit (N40/3) with bracket (4) until the electrical connectors (2) can be accessed | ||
| 7 | Separate electrical connectors (2) | ||

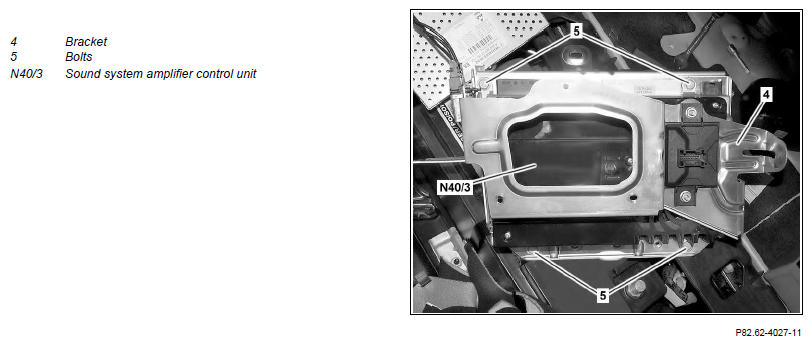

| 8 | Remove screws/bolts (5) and remove sound system amplifier control unit (N40/3) from bracket (4) | ||
| 9 | Install in reverse order |
