Remove/Install Rear Passenger Compartment Mobile Phone Cradle Control Unit - AR82.70-P-0012LFN
Model 222
As Of Model year 2018
With Code 224 (Individual rear seats)
With Code 898 (Wireless telephone charging in rear passenger compartment)
Model 222
As Of Model year 2018
With Code 224 (Individual rear seats)
With Code 899 (Multifunction telephony)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of rear mobile phone cradle control unit (N123/10) | When replacing the rear mobile phone cradle control unit (N123/10). | |
| AD00.00-P-2000-04B | |||

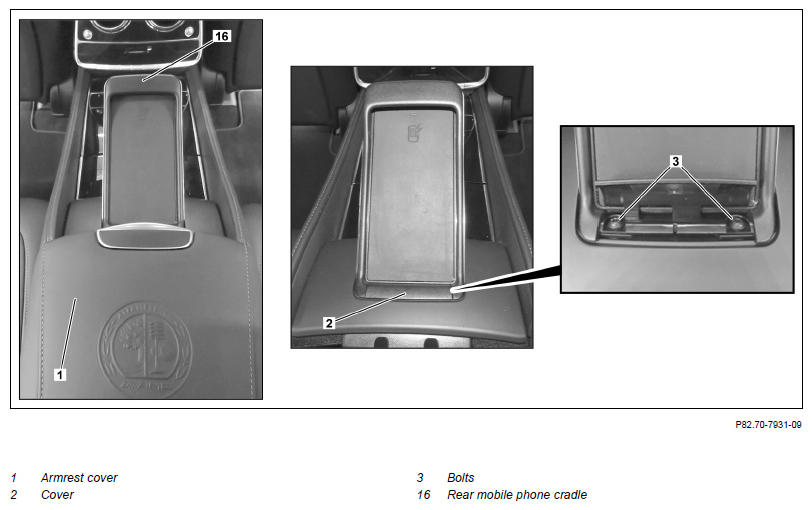

| 2 | Open armrest cover (1) | ||
| 3 | Unclip cover (2) and remove | ||
| 4 | Remove screws (3) | ||
| 5 | Unclip mobile phone cradle in rear passenger compartment (16) upwards | ||

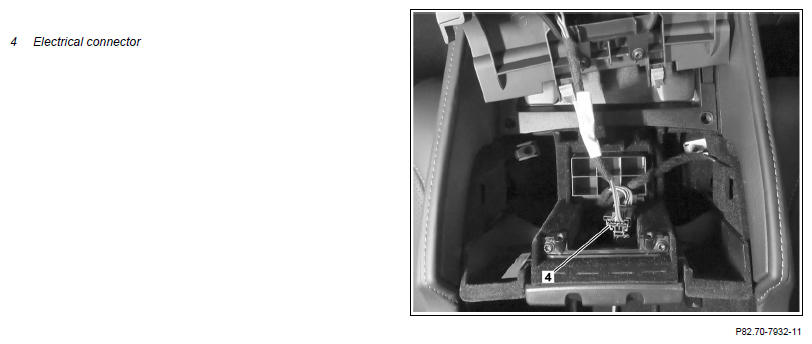

| 6 | Disconnect electrical connector (4) from center console in rear passenger compartment | ||
| 7 | Remove mobile phone cradle in rear passenger compartment (16) with cover (6) from vehicle | ||

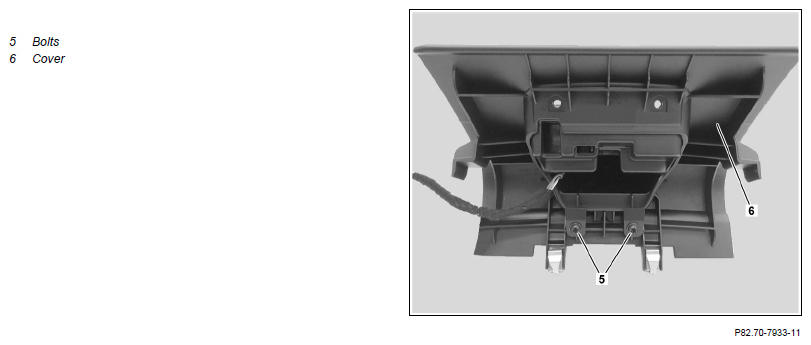

| 8 | Unscrew bolts (5) and remove covering (6) | ||

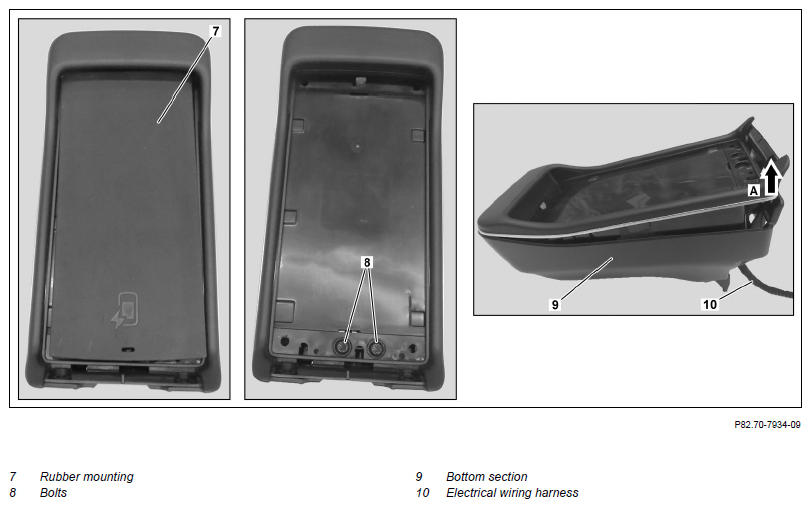

| 9 | Remove rubber mounting (7) | ||
| 10 | Remove bolt (8) | ||
| 11 | Remove frame (13) with control unit for mobile phone cradle in rear passenger compartment (N123/10) upwards (arrow A) from lower part (9) | ||

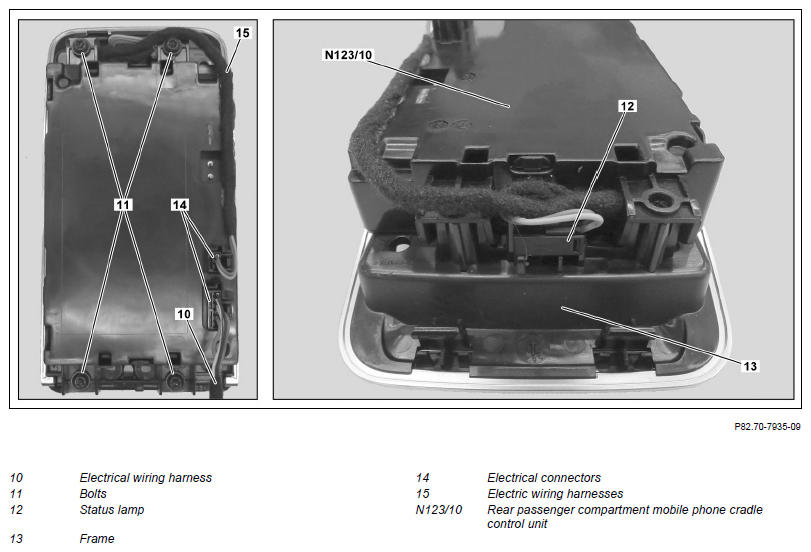

| 12 | Remove bolts (11) | ||
| 13 | Unclip status lamp (12) | ||
| 14 | Remove control unit for mobile phone cradle in rear passenger compartment (N123/10) from frame (13) | ||
| 15 | Disconnect electrical connectors (14) and remove electrical wiring harnesses (10, 15) | When replacing the rear mobile phone cradle control unit (N123/10). | |
| 16 | Install in the reverse order |
