Remove/Install Rear Passenger Compartment Mobile Phone Cradle Control Unit - AR82.70-P-0012LFM
Model 222
As Of Model year 2018
With Code 898 (Wireless telephone charging in rear passenger compartment)
Except Code 224 (Individual rear seats)
Model 222
As Of Model year 2018
With Code 899 (Multifunction telephony)
Except Code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of rear mobile phone cradle control unit (N123/10) | When replacing the rear mobile phone cradle control unit (N123/10). | |
| 2.1 | Unlock rear multimedia connection unit (A90/6) and slightly guide it out with the lines connected | 222 as of model year 2018 with code 864 (Rear Seat Entertainment System) | |
| AR82.60-P-1033LFM | |||
| 2.2 | Fold down the armrest in the rear | 222 as of model year 2018 except code 864 (Rear Seat Entertainment System) | |

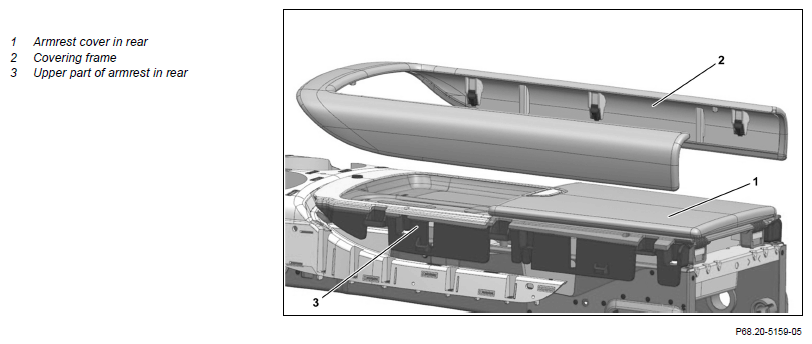

| 3 | Unclip covering frame (2) | ||

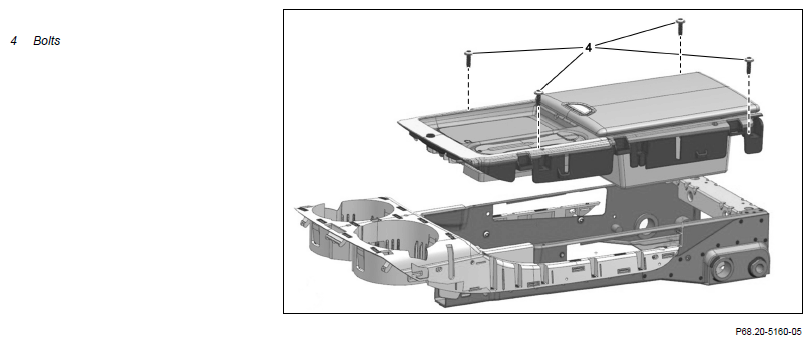

| 4 | Remove screws (4) | ||
| 5 | Close armrest cover in the rear (1) and fold up upper part of armrest in the rear (3) | ||

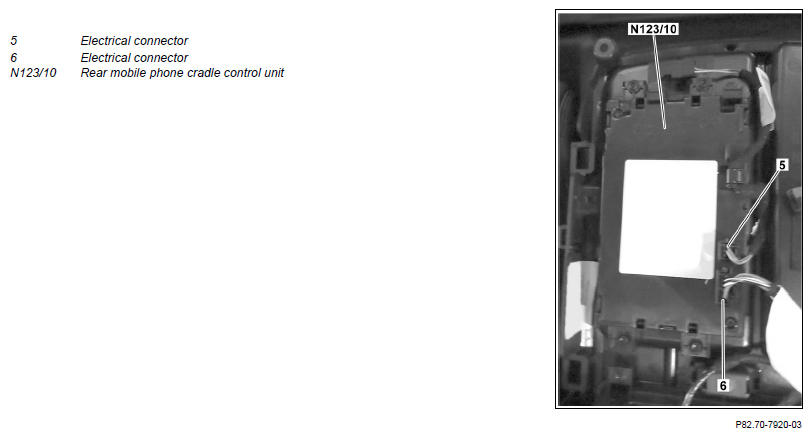

| 6 | Disconnect electrical connector (5) | ||
| 7 | Disconnect electrical connector (6) | ||
| 8 | Unclip the rear mobile phone cradle control unit (N123/10) and remove | ||
| 9 | Install in the reverse order |
