Remove/Install Rear Entertainment Controller Unit - AR82.60-P-7697LFA
Model 222.1/9
With Code 224 (Individual rear seats)
With Code P46 (Rear-Seat Entertainment Package)
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of Rear Seat Entertainment system controller unit (A26/18) with diagnostic system | When replacing Rear Seat Entertainment system controller unit (A26/18). | |
| AD00.00-P-2000-04B | |||
| 2 | Loosen right and left inner trim piece behind rear seat | AR68.30-P-1460LF | |
| 3 | Remove bolts (1) | ||

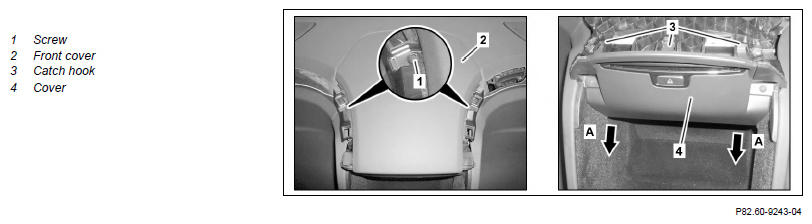

| 4 | Remove front cover (2) at rear shelf | ||
| 5 | Remove cover (4) | ||
| 6 | Remove bolts (5) | ||

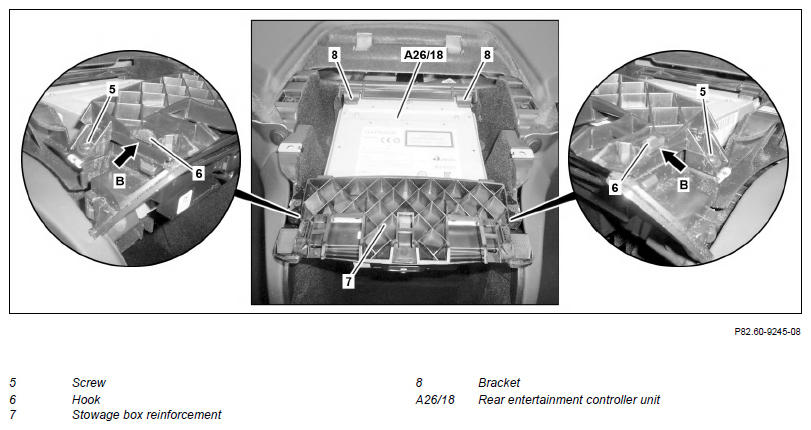

| 7 | Press hook (6) in direction of arrow (B) and remove stowage box reinforcement (7) | ||
| 8 | Lift Rear Seat Entertainment system controller unit (A26/18) at front and remove from bracket (8) | ||

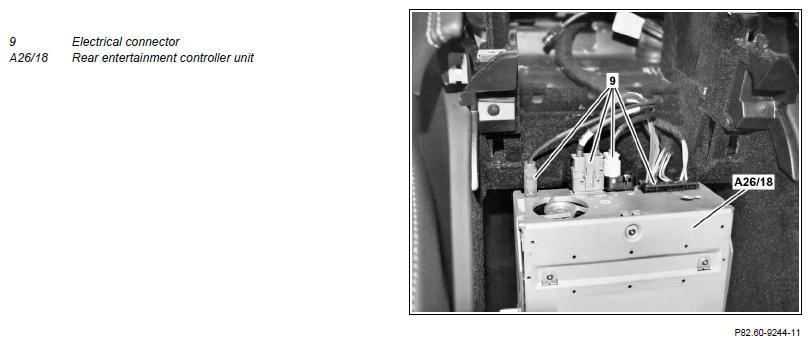

| 9 | Disconnect electrical connector (9) from Rear Seat Entertainment system controller unit (A26/18) | ||
| 10 | Install in the reverse order |
