Remove/Install Rear Entertainment Controller Unit - AR82.60-P-7697LF
Model 222
With Code P46 (Rear-Seat Entertainment Package)
Except Code 224 (Individual rear seats)
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform commissioning of Rear Seat Entertainment system controller unit (A26/18) | When replacing Rear Seat Entertainment system controller unit (A26/18). | |
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Remove cover on center console | Model 222.0/1 with code P46 (Rear-Seat Entertainment Package) except code 224 (Individual rear seats) |
AR68.20-P-2350LF |

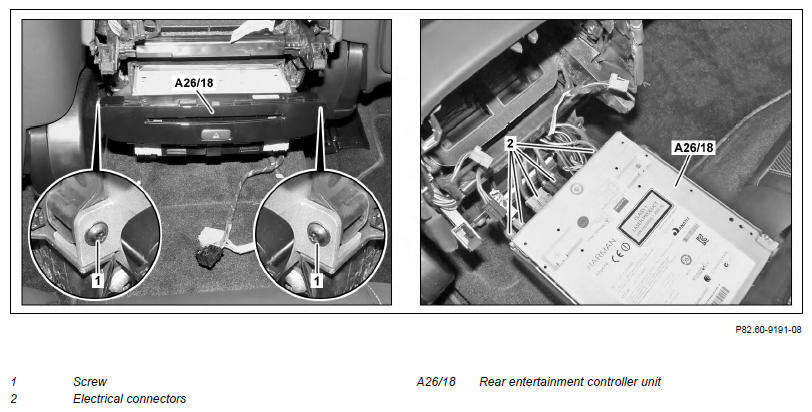

| 4 | Remove screw/bolts (1) | ||
| 5 | Guide Rear Seat Entertainment system controller unit (A26/18) out of center console until electrical connectors (2) are accessible | ||
| 6 | Separate electrical connectors (2) | ||
| 7 | Remove Rear Seat Entertainment system controller unit (A26/18) from vehicle | ||
| 8 | Install in the reverse order |
