Remove/Install Rear Axle Level Sensor - AR82.10-P-0005LF

Model 217

Model 222

Shown on Model 222

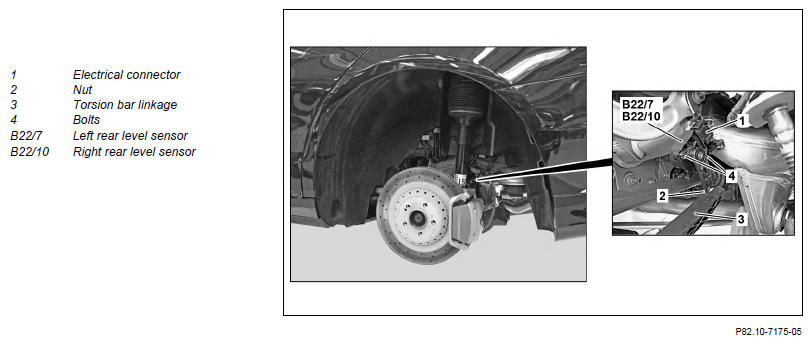

Fig 1: Rear Axle Level Sensor Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Lift vehicle on vehicle lift
2	Disconnect electrical connector (1) at left or right rear level sensor (B22/7 or B22/10)
3	Unscrew nut (2) and unhook torsion bar linkage (3) at left or right rear level sensor (B22/7 or B22/10)	Do not twist left or right rear level sensor (B22/7 or B22/10). Pay attention to installation position.
		Nut, level sensor to linkage	*BA82.10-P-1001-02F
4	Remove screws/bolts (4) and remove left right rear level sensor (B22/7 or B22/10)	Do not bend bracket.
		Bolt, level sensor to bracket	*BA82.10-P-1002-02F
5	Install in the reverse order
6	Calibrate left or right rear level sensor (B22/7 or B22/10) using diagnostic system	When replacing left or right rear level sensor (B22/7 or B22/10)
			AD00.00-P-2000-04B
7.1	Check headlamp adjustment	When replacing left or right rear level sensor (B22/7 or B22/10)
		Model 222	AP82.10-P-8260HA
7.2	Check headlamp adjustment	When replacing left or right rear level sensor (B22/7 or B22/10)
		Model 217	AP82.10-P-8260S

REAR AXLE LEVEL SENSOR

Number	Designation		Model 217	Model 222
BA82.10-P-1001-02F	Nut, level sensor to linkage	Nm	6	6

REAR AXLE LEVEL SENSOR

Number	Designation		Model 217	Model 222
BA82.10-P-1002-02F	Bolt, level sensor to bracket	Nm	5	5
