Remove/Install Panic Alarm System Control Unit (GAS) - AR82.25-P-1206LFS
Model 222.1
With Code Z07 (B7 armoring on special protection version)
With Code Z22 (Panic alarm system)
Shown On Vehicle With Code Z21 (Fire extinguishing system)

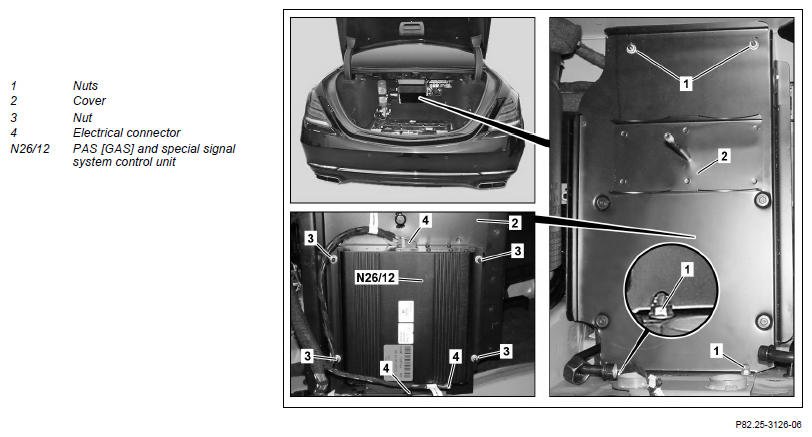

Fig 1: Panic Alarm System Control Unit (Gas) Components Location - Model 222.1 With Code Z07, Z22 (Shown On Vehicle With Code Z21)
| Remove/install | |||
| 1 | Switch off ignition, detach transmitter key from electronic ignition switch control unit | ||
| 2 | Remove fire extinguisher agent reservoir | Model 222.1 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) with code Z22 (Panic alarm system) |
|
| AR86.10-P-0100LFS | |||
| 3 | Remove trunk floor paneling and equipment carrier plate | Model 222.1 with code Z07 (B7 armoring on special protection version) with code Z22 (Panic alarm system) with code Z25 (Emergency fresh air system with equipment carrier plate) |
|
| AR68.30-P-4600LF | |||
| 4 | Unscrew nuts (1) and lay cover (2) down to side | ||
| 5 | Disconnect electrical connectors (4) from PAS [GAS] and special signal system control unit (N26/12) | ||
| 6 | Unscrew nuts (3) and remove PAS [GAS] and special signal system control unit (N26/12) | ||
| 7 | Install in the reverse order |
