Remove/Install Multimedia Connection Unit In Rear Stowage Compartment - AR82.60-P-1033LFM
Model 222.0/1/9
As Of Model year 2018
With Code 864 (Rear compartment entertainment package)
Shown in Model 222.1 Without Code 224 (individual rear seat system design)

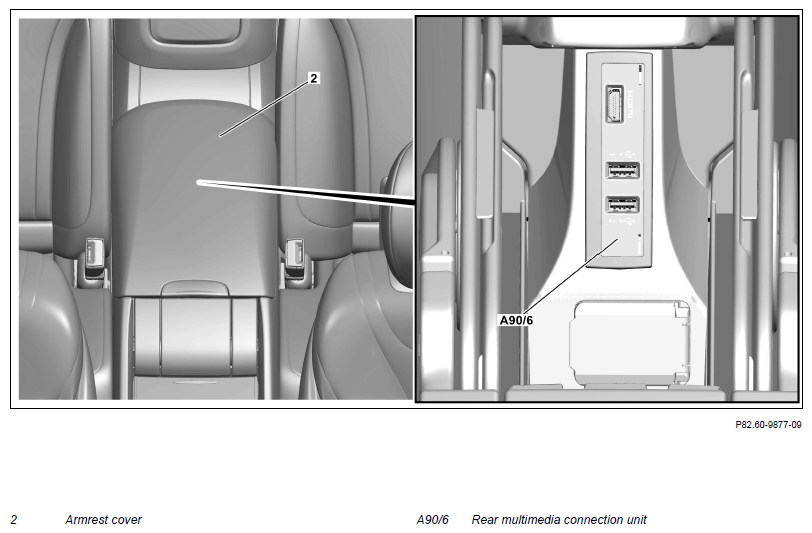

Fig 1: Multimedia Connection Unit In Rear Stowage Compartment Components Location - Model 222.1 As Of Model Year 2018 With Code 864 (Shown Without Code 224)
Fig 2: Multimedia Connection Unit In Rear Stowage Compartment Components Location - Model 222.1 As Of Model Year 2018 With Code 864 (Shown With Code 224)
Shown in Model 222.1 With Code 224 (individual rear seat system design)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open armrest cover (2) | ||
| 2 | Fold up the folding tables in the rear armrest | Model 222.1/9 as of model year 2018 with code 224 (Rear individual seat design) with code 449 (folding tables in the rear) with code 864 (Rear compartment entertainment package) |
|
| 3.1 | Remove the rear multimedia connection unit (A90/6) and disconnect the electrical connectors (3) | Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package) except code 224 (Rear individual seat design) |
|

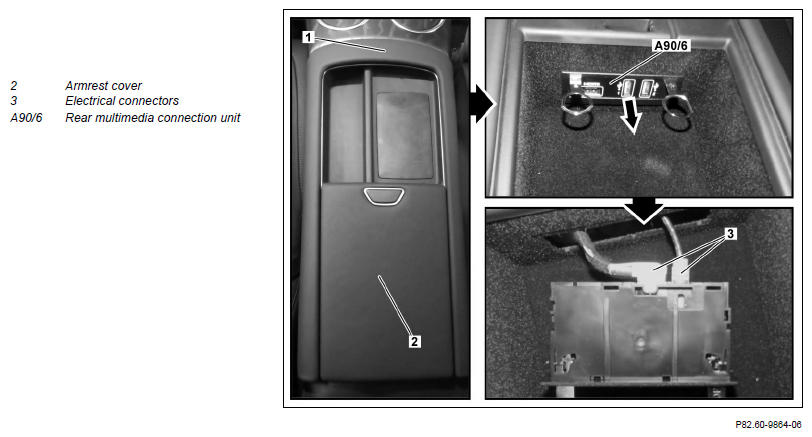

| Fig 3 | |||
| 3.2 | Remove the rear multimedia connection unit (A90/6) and disconnect the electrical connectors to the rear | Model 222 as of model year 2018 with code 224 (Rear individual seat design) with code 864 (Rear compartment entertainment package) |
|
| Fig 3 | |||
| 4 | Install in the reverse order |
