Remove/Install Multimedia Connection Unit In Rear Stowage Compartment - AR82.60-P-1033LF
Model 222.1/9
up to Model year 2018
With Code 224 (Individual rear seats)
With Code P46 (Rear-Seat Entertainment Package)
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open armrest cover (2) | ||
| 2 | Set folding tables in rear center console (1) upright | Model 222.1/9 up to model year 2018 with code 224 (Individual rear seats) with code 449 (Folding table in the rear, left and right) with code P46 (Rear-Seat Entertainment Package) |
|

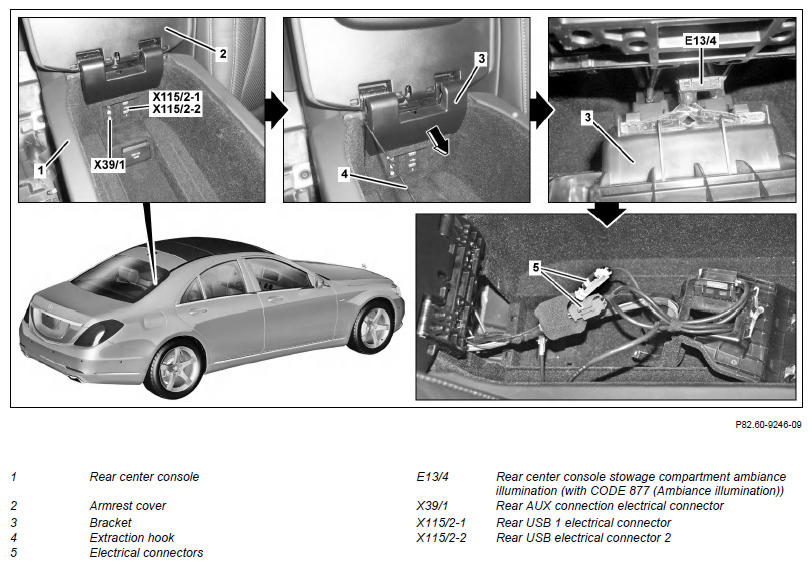

| 3 | Unclip bracket (3) with extraction hook (4) | Fig 1 | |
| 4.1 | Fold bracket (3) forward (arrow) and remove rear center console stowage compartment ambiance illumination (E13/4) from bracket (3) | Model 222.1/9 up to model year 2018 with code 224 (Individual rear seats) with code 877 (Ambient lighting) with code P46 (Rear-Seat Entertainment Package) |
|
| 4.2 | Fold bracket (3) forwards until electrical connections (5) are accessible | Model 222.1/9 up to model year 2018 with code 224 (Individual rear seats) with code P46 (Rear-Seat Entertainment Package) except code 877 (Ambient lighting) |
|
| 5 | Disconnect electrical connectors (5) | ||
| 6 | Unclip rear USB electrical connection 1 (X115/2-1), rear USB electrical connection 2 (X115/2-2), rear AUX connection electrical connection (X39/1) forwards out of bracket (3), and remove |
||
| 7 | Install in the reverse order |
