Remove/Install Mobile Phone Cradle Control Unit - AR82.70-P-0007LFM
Model 217, 222
With Code 897 (Front wireless telephone charging)
Model 217, 222
With Code 899 (Multifunction telephony)
MODIFICATION NOTES
| 01.08.2017 | Disconnect electrical connection (6). | Operation step 3 |
Shown on Model 222 With Code 582 (Rear air conditioning system) and code 897 (Wireless mobile phone charging)
Shown on Model 222 With Code 582 (Rear air conditioning system) and code 897 (Wireless mobile phone charging)
Shown on Model 222, Except Code 582 (Rear air conditioning system) and code 897 (Wireless mobile phone charging)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of mobile phone cradle control unit (N123/8) | When replacing the mobile phone cradle control unit (N123/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove center stowage compartment (2) | Model 217.4 as of model year 2018 with code 897 (Front wireless telephone charging) Model 217.4 as of model year 2018 with code 899 (Multifunction telephony) |
AR68.10-P-1620LFA |
| Model 217.3, 222 as of model year 2018 with code 897 (Front wireless telephone charging) Model 217.3, 222 as of model year 2018 with code 899 (Multifunction telephony) |
AR68.10-P-1620LFM | ||

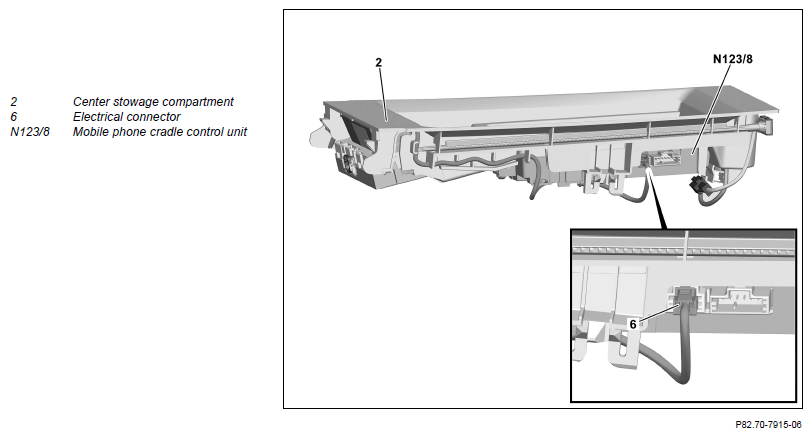

| 3 | Disconnect electrical connector (6) | ||

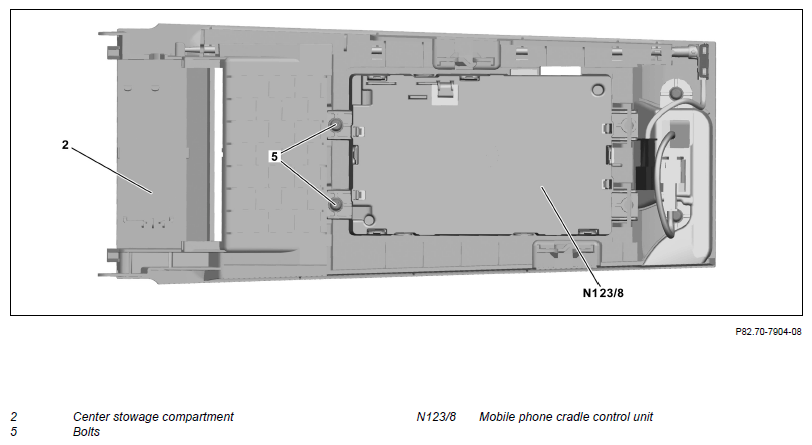

| 4.1 | Loosen the screws (5) and remove the mobile telephone holder (N123/8) | Model 222 with code 582 (Rear air conditioner) with code 897 (Front wireless telephone charging) Model 222 with code 582 (Rear air conditioner) with code 899 (Multifunction telephony) |
|

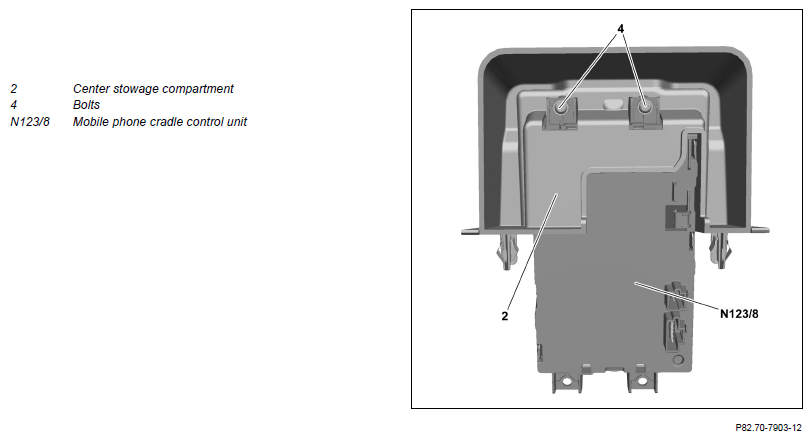

| 4.2 | Loosen the screws (4) and remove the mobile telephone holder (N123/8) | Model 217, 222 with code 897 (Front wireless telephone charging) Model 217, 222 with code 899 (Multifunction telephony) |
|
| 5 | Install in reverse order |
