Remove/Install Logo Projector - AR82.10-P-0003LF
Model 222
With Code 586 (Logo projection via door illumination)
MODIFICATION NOTES
| 19.03.2020 | Special tool changed. | Operation step 3. |
Shown on Model 222.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open corresponding door. | ||
| 3 | Unclip logo projector (1). | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|

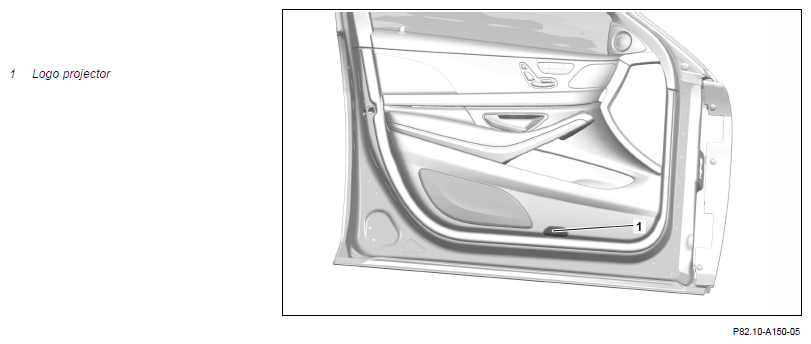

| Fig 1 | |||
| 4 | Release and disconnect electrical connector o logo projector (1), and remove logo projector (1). | ||
| 5 | Install in the reverse order. |
