Remove/Install Inner Fan Motor Of Front Headlamp Unit - AR82.10-P-4744LFM

Model 217

Model 222

up to Model year 2018

With Code 640 (SAE dynamic LED headlamps, right-hand traffic)

Model 222

up to Model year 2018

With Code 641 (Dynamic LED headlamps, left-hand traffic)

Model 222

up to Model year 2018

With Code 642 (Dynamic LED headlamps, right-hand traffic)

Model 222

With Code 631 (Static LED headlamps, left-hand traffic)

Model 222

With Code 632 (Headlamps, LED, static, right-side traffic)

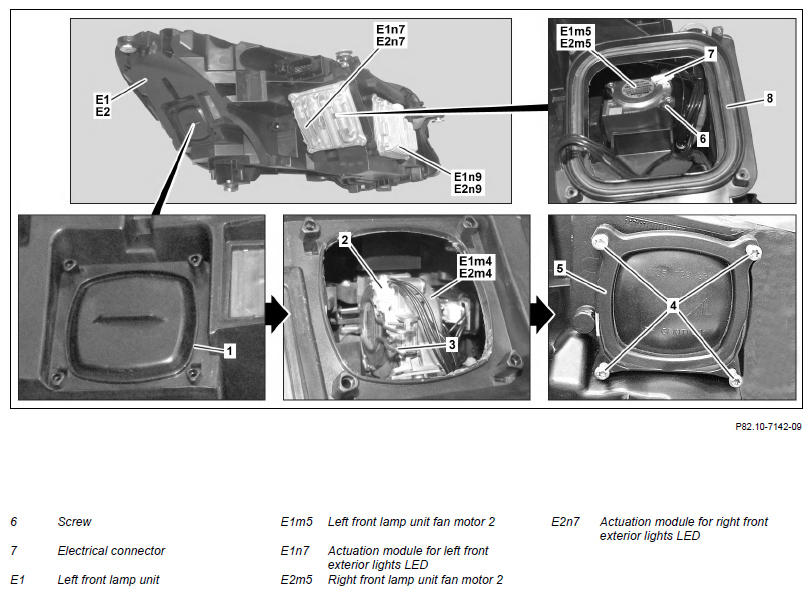

Front left lamp unit shown (E1) to Model J. 2018

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove front left LED matrix lamp unit control unit (E1n11) and/or front right LED matrix lamp unit control unit (E2n11)	Model 222 as of model year 2018 with code 631 (Static LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 632 (Headlamps, LED, static, right-side traffic)
1.2	Remove left front exterior lights LED actuation module (E1 n7) or right front exterior lights LED actuation module (E2n7)	Model 217 Model 222 up to model year 2018 with code 631 (Static LED headlamps, left-hand traffic) Model 222 up to model year 2018 with code 632 (Headlamps, LED, static, right-side traffic) Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps right-hand traffic) Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic)
			AR82.10-P-4650LF
2	Remove bolt (6)
3	Pull out fan motor 2 of the front left lamp unit (E1 m5) and/or fan motor 2 of the front right lamp unit (E2m5) until the electrical connection (7) is accessible
4	Release and disconnect electrical connection (7)
5	Remove fan motor 2, left front lamp unit (E1m5) or fan motor 2, right front lamp unit (E2m5)
6	Install in the reverse order
