Remove/Install Head Unit - AR82.85-P-1101LFM
Model 217, 222
As Of Model year 2018
Shown on Model 222 from Model year 2018
Shown on Model 222 from Model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1 | Perform initial startup of head unit (A26/17) | When replacing head unit (A26/17). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and keep transmitter key outside transmitter range (at least 2 m) | ||
| 3 | Remove electronic ignition control unit | AR54.21-P-0038LFM | |

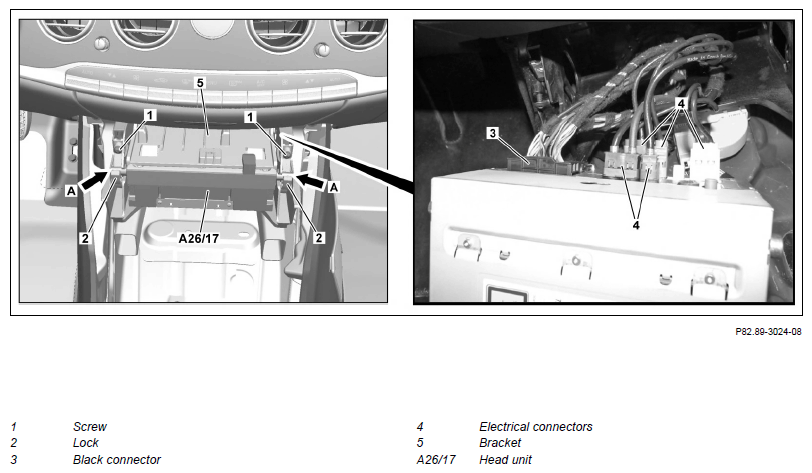

| 4 | Loosen bolts (1) on locks (2) | ||
| 5 | Guide head unit (A26/17) at locks (2) out of instrument panel | ||
| 6 | Remove head unit (A26/17) from locks (2) far enough to access black connector (3) and electrical connectors (4) | ||
| 7 | Disconnect black connector (3) and electrical connectors (4) | ||
| 8 | Remove head unit (A26/17) from vehicle | ||

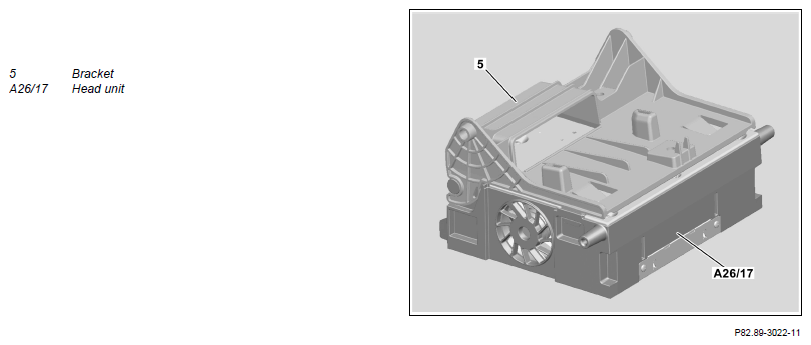

| 9 | Unclip bracket (5) and remove from head unit (A26/17) | When replacing head unit (A26/17). | |
| 10 | Install in the reverse order |
