Remove/Install HERMES Control Unit - AR82.95-P-0019LF
Model 217, 222
With Code 360 (HERMES UMTS)
With Code 362 (HERMES communications module LTE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove front trunk lining. | Model 217.3 with code 360 (HERMES UMTS) with code 362 (HERMES communications module LTE) |
AR68.30-P-4600LC |
| Model 217.4 with code 360 (HERMES UMTS) with code 362 (HERMES communications module LTE) |
AR68.30-P-4602LCA | ||
| Model 222 with code 360 (HERMES UMTS) with code 362 (HERMES communications module LTE) |
AR68.30-P-4600LF | ||

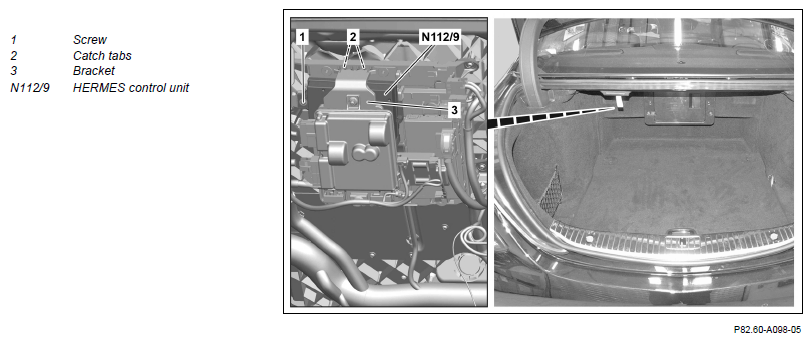

| 3 | Release catch tabs (2) and remove holder (3) with connected control units. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 4 | Unscrew screw (1) and remove HERMES control unit (N112/9). | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 5 | Release and disconnect electrical connectors from HERMES control unit (N112/9) and remove HERMES control unit (N112/9). | ||
| 6 | Install in the reverse order. | ||
| 7 | Carry out commissioning of HERMES control unit (N112/9). | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B |
