Remove/Install GSM-Net Compensator - AR82.70-P-0040LF
Model 222.0/1/9
With Code 856 (Telephone handset in rear armrest)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove left paneling in trunk | Model 222.0/1/9 with code 856 (Telephone handset in rear armrest) except code 811 (High-End sound system) |
|
| AR68.30-P-4600LF | |||
| 1.2 | Remove woofer | Model 222.0/1/9 with code 811 (High-End sound system) with code 856 (Telephone handset in rear armrest) |
|
| AR82.62-P-7839LF | |||
| 2 | Remove bolts (1) | Model 222.0/1/9 with code 811 (High-End sound system) with code 856 (Telephone handset in rear armrest) |
|

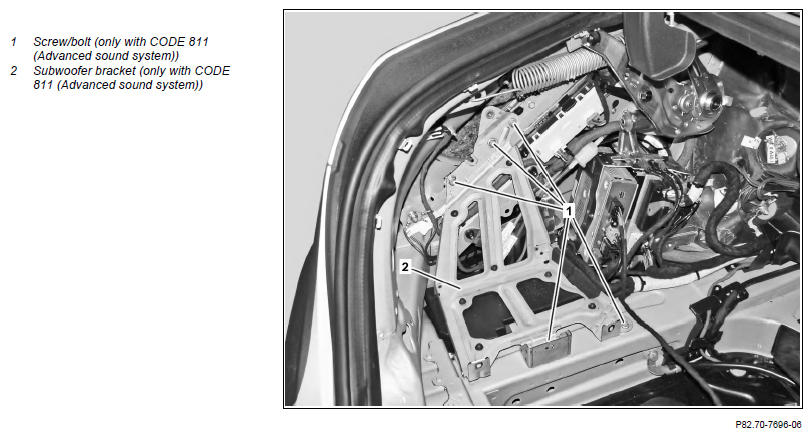

| 3 | Remove subwoofer bracket (2) | Model 222.0/1/9 with code 811 (High-End sound system) with code 856 (Telephone handset in rear armrest) |
|

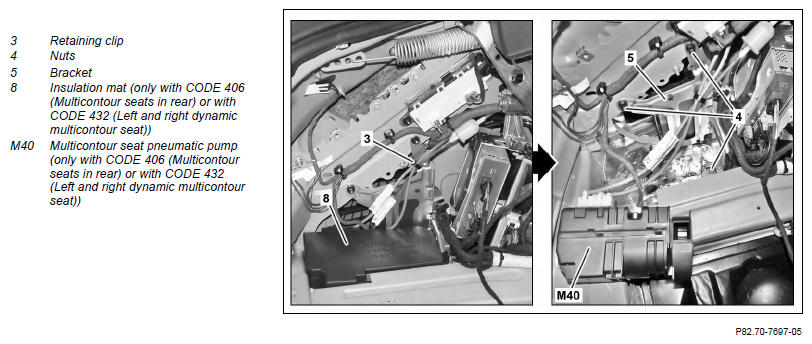

| 4 | Unclip retaining clip (3) from bracket (5) | ||
| 5 | Remove insulating mat (8) | Model 222.0/1/9 with code 406 (Rear multicontour seat) with code 856 (Telephone handset in rear armrest) Model 222.0/1/9 with code 432 (Dynamic seats left and right) with code 856 (Telephone handset in rear armrest) |
|
| 6 | Lift multicontour seat pneumatic pump (M40) with connected lines and place to one side | Model 222.0/1/9 with code 406 (Rear multicontour seat) with code 856 (Telephone handset in rear armrest) Model 222.0/1/9 with code 432 (Dynamic seats left and right) with code 856 (Telephone handset in rear armrest) |
|
| 7 | Unscrew nuts (4) | ||
| 8 | Lift bracket (5) | ||
| 9 | Unscrew nuts (6) | ||
| 10 | Disconnect electrical connectors (7) | ||

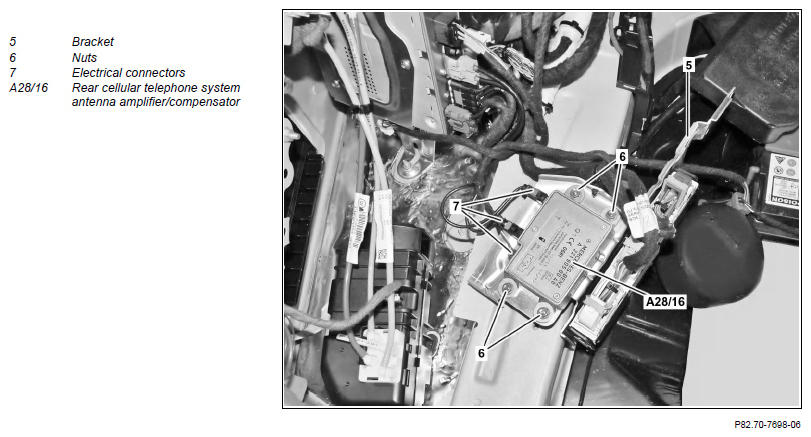

| 11 | Remove rear cellular telephone system antenna amplifier/compensator (A28/16) from bracket (5) | ||
| 12 | Install in the reverse order |
