Remove/Install Driving Lights Actuation Module - AR82.10-P-4650LF
Model 217
Model 222
up to Model year 2018
With Code 631 (Static LED headlamps, left-hand traffic)
Model 222
up to Model year 2018
With Code 632 (Headlamps, LED, static, right-side traffic)
Model 222
up to Model year 2018
With Code 640 (SAE dynamic LED headlamps, right-hand traffic)
Model 222
up to Model year 2018
With Code 641 (Dynamic LED headlamps, left-hand traffic)
Model 222
up to Model year 2018
With Code 642 (Dynamic LED headlamps, right-hand traffic)

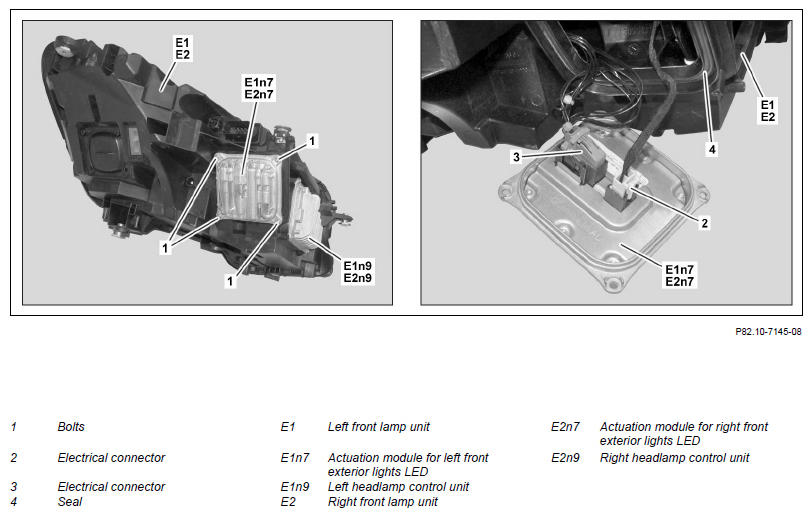

Shown on Model 222.004, left front lamp unit (E1)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) | When replacing the left front actuation module LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove left front lamp unit (E1) or right front lamp unit (E2) | Model 217 | AR82.10-P-4730LC |
| Model 222 | AR82.10-P-4730LF | ||
| 3 | Remove bolts (1) | ||
| 4 | Pull out left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) until electrical connectors are accessible (2, 3) | ||
| 5 | Release and disconnect electrical connectors (2, 3) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) | ||
| 6 | Install in the reverse order |
