Remove/Install Display In Rear - AR82.60-P-7720LF
Model 222
With Code P46 (Rear-Seat Entertainment Package)
MODIFICATION NOTES
| 27.06.2017 | Teaching components added. | Operation steps 8 and 9. |
Shown on Model 222 up to Model year 2018
Shown on Model 222 up to Model year 2018
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

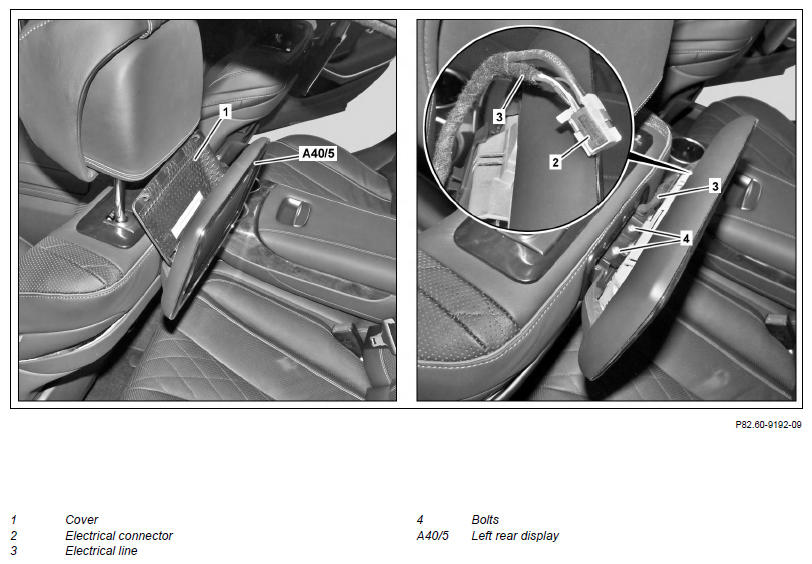

| 2 | Take off cover (1) | ||
| 3 | Disconnect electrical connection (2) | ||

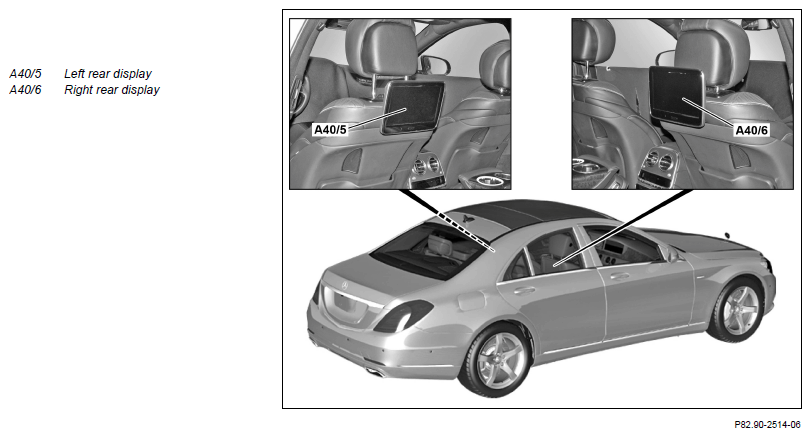

| 4 | Pull out the electrical line (3) from the guide at the left rear display (A40/5) or the right rear display (A40/6) | ||
| 5 | Remove screws (4) | ||
| 6 | Remove left rear display (A40/5) or right rear display (A40/6) from respective seat | ||
| 7 | Install in the reverse order | ||
| Teach components | |||
| 8 | Teach the radio frequency headphones (H8/3) to the left rear display (A40/5) | When renewing the left rear display (A40/5), one or both radio frequency headphones (H8/3). | |
| AD00.00-P-2000-04B | |||
| 9 | Teach the radio frequency headphones (H8/3) and the COMAND remote control at the right rear display (A40/6) | When renewing the right rear display (A40/6), one or both radio frequency headphones (H8/3) or the COMAND remote control. | |
| AD00.00-P-2000-04B |
