Remove/Install COMAND Display - AR82.85-P-7429LF
Model 217, 222
up to Model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

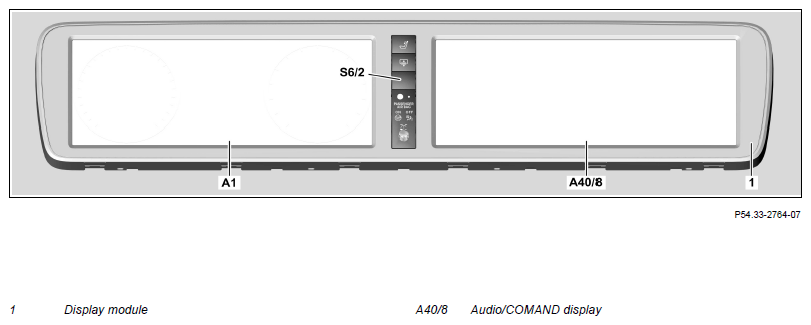

| 1 | Remove display module (1) | AR54.30-P-6023LF | |
| 2 | Unclip instrument cluster illumination (A1e100 from display module (1) | ||

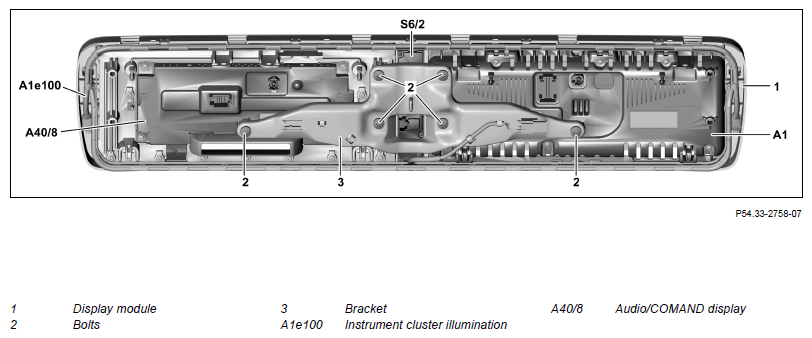

| 3 | Unscrew bolts (2) and remove bracket (3) with instrument cluster illumination (A1e100) | ||

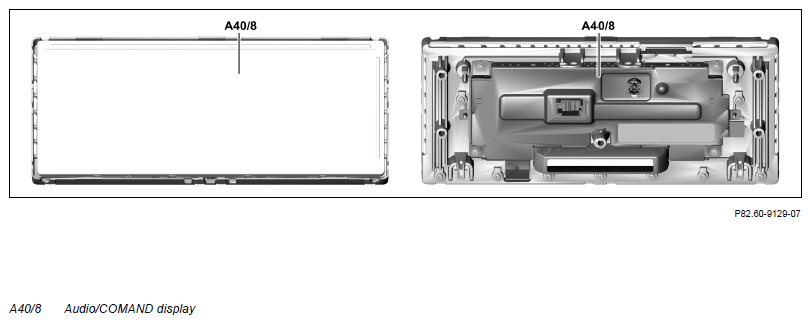

| 4 | Remove Audio/COMAND display (A40/8) | ||
| 5 | Install in the reverse order |
