Remove/Install Bass Speaker Amplifier Module - AR82.62-P-7839LF
Model 222
With Code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 2 | Remove panels at left in trunk | Model 222.0/1 with code 811 (High-End sound system |
AR68.30-P-4600LF |

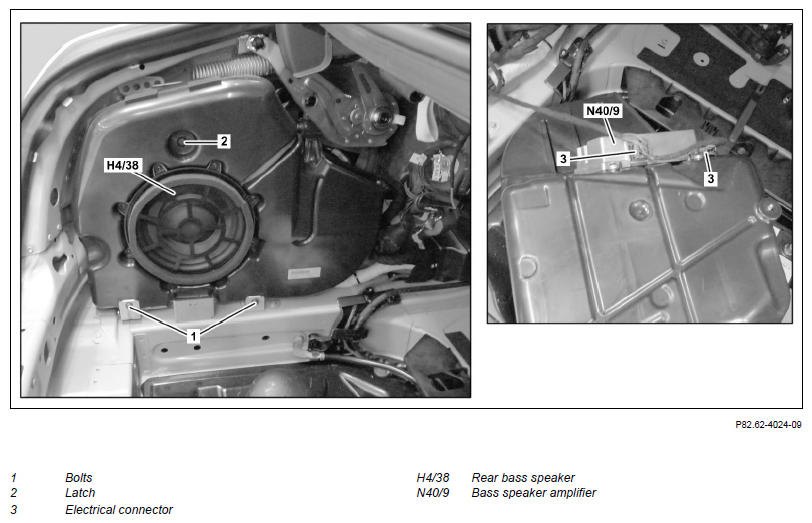

| 3 | Open latch (2) | ||
| 4 | Remove screws/bolts (1) and remove bass box together with rear bass speaker (H4/38) until electrical connectors (3) are accessible | *BA82.62-P-1002-04B | |
| 5 | Disconnect electrical connectors (3) and remove bass box together with rear bass speaker (H4/38) from vehicle | ||

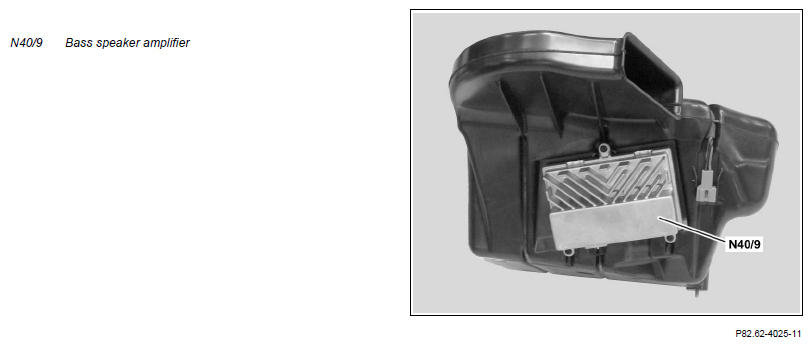

| 6 | Transfer bass speaker amplifier (N40/9) | Only when replacing rear bass speaker (H4/38). | |
| 7 | Install in the reverse order | ||
| 8 | Perform function test |
SPEAKER
| Number | Designation | Model 222 | ||
|---|---|---|---|---|
| BA82.62-P-1002-04B | Bolt, woofer to bracket | M6x12 | Nm | 6 |
