Remove/Install Antenna Amplifier Module - AR82.62-P-8300LF
Model 217.3, 222
Shown on Model 222 With Code 413 (Panoramic sliding sunroof)
Shown on Model 222 With Code 413 (Panoramic sliding sunroof)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

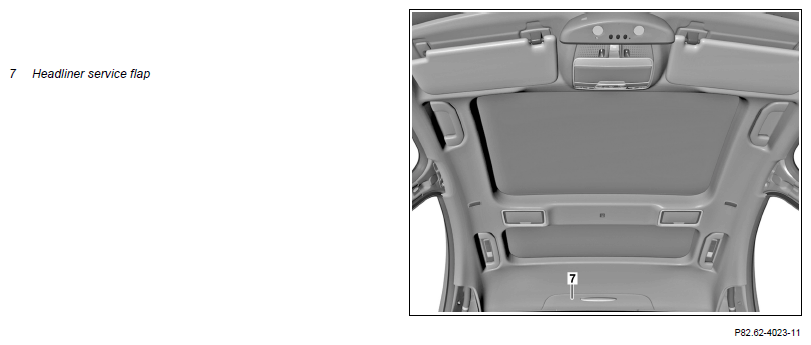

| 1.1 | Remove roof lining service flap (7) using assembly wedge. | Model 222.0/1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 except code Z07 (B7 armoring on special protection version) |
|
| Fig 2 | |||
| 1.2 | Remove headliner. | Model 217.3 Model 222.0/1 except code 413 (Panoramic sliding sunroof/glass roof) |
|
| Model 217.3 | AR68.30-P-4300LC | ||
| Model 222.0 except code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LF | ||
| Model 222.1 except code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LFN | ||
| 1.3 | Remove rear section of roof lining. | Model 222.9 with code Z07 (B7 armoring on special protection version) |
|
| AR68.30-P-4307LFS | |||
| 2 | Release and disconnect electrical connectors (6). | Avoid strain relief on electrical lines. Otherwise there will be damage to the contact strips. |
|
| 3 | Loosen bolt (5). | ||

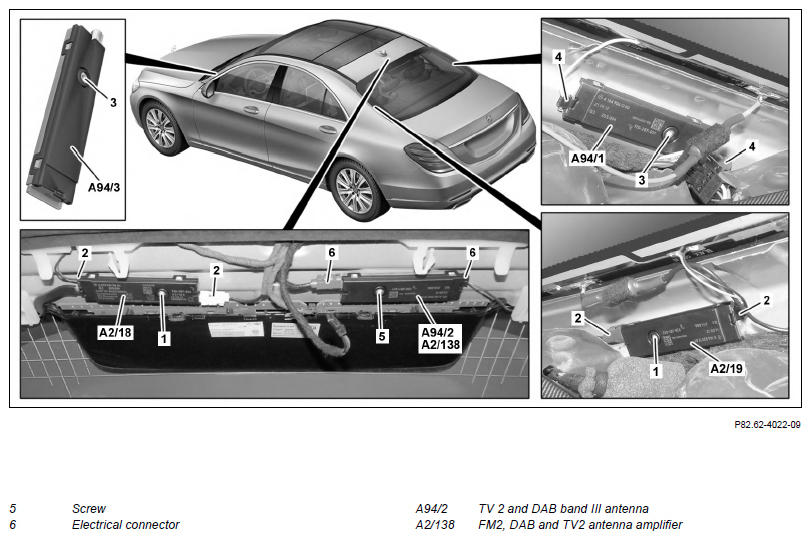

| 4 | Unclip TV 2 and DAB band III antenna amplifier (A94/2) or FM2, DAB and TV2 antenna amplifier (A2/138) and remove. | ||
| 5 | Install in the reverse order. |
