Remove/Install Ambient Lighting Display Cluster - AR82.20-P-5583LF

Model 222

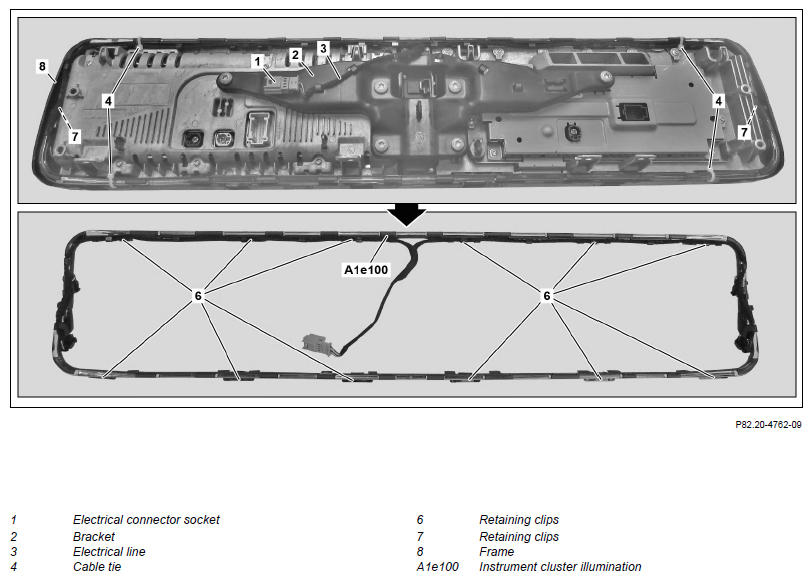

Fig 1: Ambient Lighting Display Cluster Components Location - Model 222

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

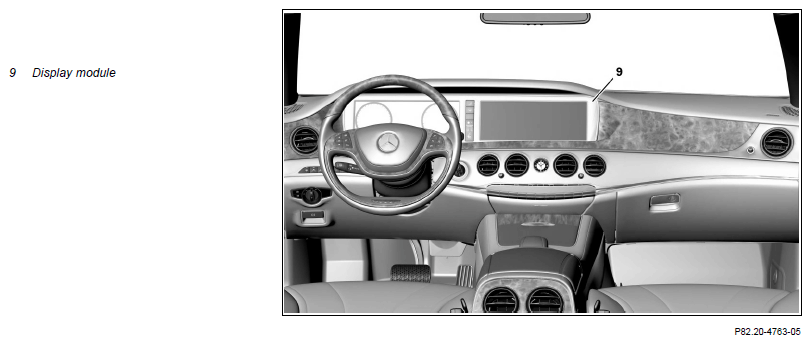

1	Remove display module (9) and put down on a soft and clean surface		AR54.30-P-6023LF
2	Release electrical connector socket (1), remove from holder (2) and route electrical line (3) out of holder (2)	The electrical connector socket (1) as well as the electric line (3) are part of the instrument cluster illumination (A1e100).
3	Cut through cable ties (4)	: Replace cable ties (4). : Check they are mounted without any chafing and correctly.
4	Use suitable tool to unclip instrument cluster illumination (A1e100) at retaining clamps (6, 7)	Make sure that the frame (8) is not damaged. Otherwise, it has to be replaced. Do not kink or bend the instrument cluster illumination (A1e100). Otherwise, the component part may be damaged. The retaining clamps (6) remain on the instrument cluster illumination (A1e100). The retaining clips (7) remain on the frame (8).
5	Install in the reverse order
