Windshield Washer System - Inspect Fluid Level, Adjust To Correct Level - AP82.35-P-8210HA

Model 217, 222

Show on Model 222.186

Courtesy of MERCEDES-BENZ USA

	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Check/correct

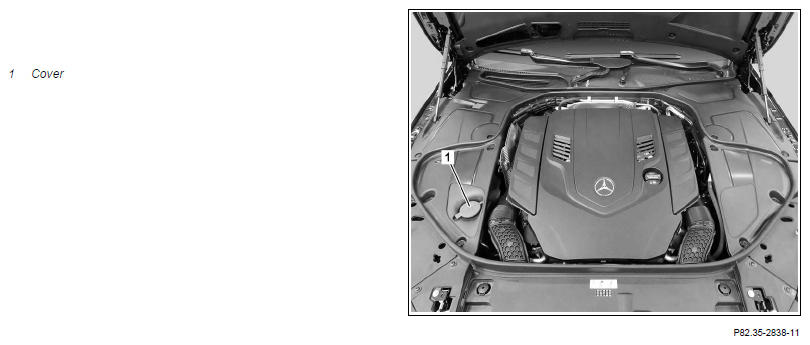

1	Remove cover (1) and check fluid level in washer fluid reservoir; correct if necessary
	Windshield washer fluid concentrate		BB00.40-P-0371-00A
		Use summer/winter cleaner as well as its mixing ratio to match the given ambient temperature.
2	Seal washer fluid reservoir with cover (1)
