Overview Of System Components For Energizing Convenience Control - GF82.90-P-9992LF
Model 217, 222 with code P72 (ENERGIZING comfort control)

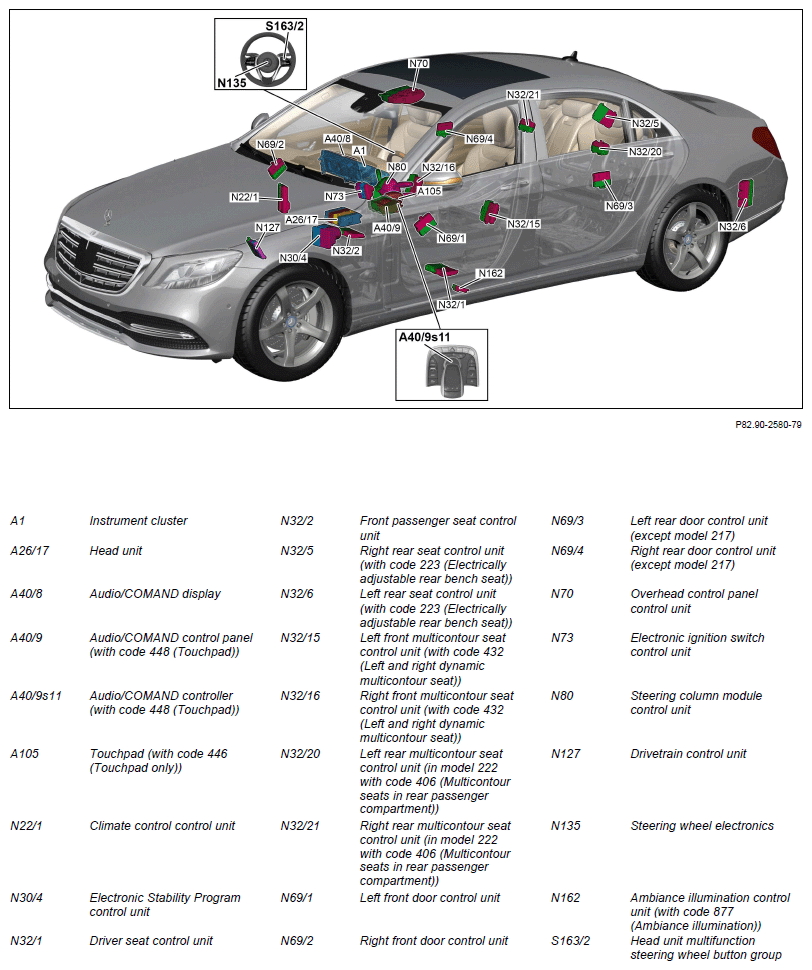

Overview of system components
| Component description for instrument cluster | Model 217, 222 as of model year 2018 with code P72 (ENERGIZING comfort control) A1 | GF54.30-P-6000LFM | |
| Head unit, component description | Model 217, 222 as of model year 2018 with code P72 (ENERGIZING comfort control) A26/17 | GF82.85-P-3140LFM | |
| Component description for Audio/COMAND display | Model 217, 222 as of model year 2018 with code P72 (ENERGIZING comfort control) A40/8 | GF54.30-P-6150LFM | |
| Component description for Audio/COMAND control panel | Model 217, 222 as of model year 2018 with code 448 (Touchpad) with code P72 (ENERGIZING comfort control) A409, A40/9s11 | GF54.21-P-4501LFM | |
| Touchpad, component description | Model 217, 222 with code 446 (Touchpad only) with code P72 (ENERGIZING comfort control) Model 217, 222 with code 448 (Touchpad) with code P72 (ENERGIZING comfort control) A105 |
GF54.21-P-4511LF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.173) as of model year 2018 with code P72 (ENERGIZING comfort control) N30/4 | GF42.45-P-5119LFM | |
| Model 222.173 as of model year 2018 with code P72 (ENERGIZING comfort control) N30/4 | GF42.45-P-5119LFA | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) with code P72 (ENERGIZING comfort control) N32/5 | GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) with code P72 (ENERGIZING comfort control) N32/6 | GF91.29-P-5285LF | |
| Multicontour seat control unit (MCS), component description | Model 217 with code 432 (Left and right dynamic multicontour seat) with code P72 (ENERGIZING comfort control) Model 222 with code 432 (Left and right dynamic multicontour seat) with code P72 (ENERGIZING comfort control) except code 406 (Rear multicontour seat) N32/15, N32/16 |
GF91.25-P-5201LF | |
| Multicontour seat control unit (MCS), component description | Model 222 with code 406 (Rear multicontour seat) with code P72 (ENERGIZING comfort control) N32/20, N32/21 | GF91.25-P-5201LFA | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 with code P72 (ENERGIZING comfort control) N69/3, N69/4 | GF72.29-P-6021LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 as of model year 2018 with code P72 (ENERGIZING comfort control) N80 | GF54.21-P-6051LFM | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 with code P72 (ENERGIZING comfort control) Model 217, 222 (except 222.163/173) with engine 276.8, 277, 279 with code P72 (ENERGIZING comfort control) Model 222 with engine 176.9, 177.9, 256.9 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141LF | |
| Model 222.173 with engine 276.8 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141MMK | ||
| Model 222 with engine 656.9 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141OIA | ||
| Steering wheel electronics control unit, component description | Model 217, 222 as of model year 2018 with code P72 (ENERGIZING comfort control) N135 | GF82.90-P-4006LFM | |
| Ambiance illumination control unit, component description | Model 217, 222 with code 877 (ambient lighting) with code P72 (ENERGIZING comfort control) N162 | GF82.20-P-5161LF | |
| Table of contents for function description of ENERGIZING convenience control | GF82.90-P-0996LF |
