Telephone Keypad, Component Description - GF82.70-P-0101LF
Model 217, 222 up to model year 2018 except code 448 (Touchpad)
Shown model 222.0

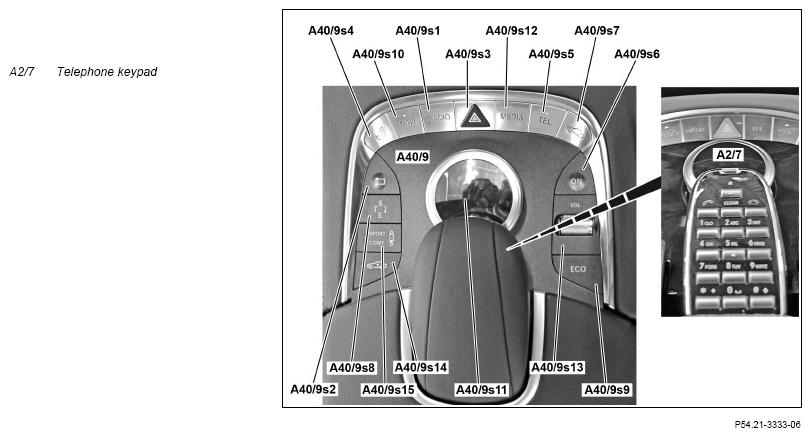

Location
The telephone keypad is located in the hand rest of the center console. The telephone keypad is equipped with a heated cover that must be opened before use.
Tasks
The telephone keypad forwards signals for button operation to the Audio/COMAND control panel (A40/9) via the telephone keypad LIN (LIN A2).
The buttons of the telephone keypad are not only used for the telephone functions, but for additional functions depending on the context; furthermore, they can be assigned as favorite buttons with a specific function by the user.
Function
The favorites function is enabled (the integrated LED illuminates in red) and disabled again (the integrated LED goes off) using the star button. The assignment of the favorite buttons is shown on the Audio/COMAND display (A40/8).
The assignment of a button on the telephone keypad that has been touched by the user (but not yet pressed) is highlighted on the Audio/COMAND display.
