Seam Sealing Following Repair, Side Damage - Ar97.10-P-4000-03LF

MODEL 222

1. Seal connecting flanges in repaired areas with body sealant.

   Observe standard sealing. Seal only primed body parts. Insert plastic stop plug and rubber grommets with sealant.

2. Seal spot welds and rivets in repaired area with seam sealant material.

   Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant. It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.

   When sealing seams we differentiate between:

   • smoothing/wiping (A)
   • sealing/spreading (B)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

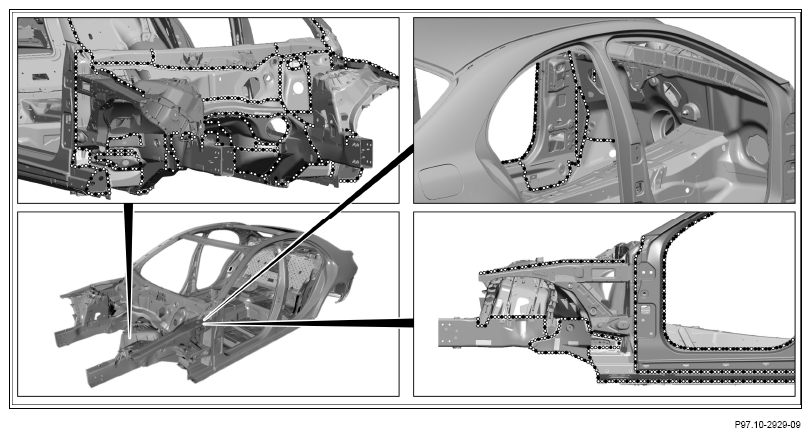

Area of front end and A-pillar, shown on MODEL 222.0

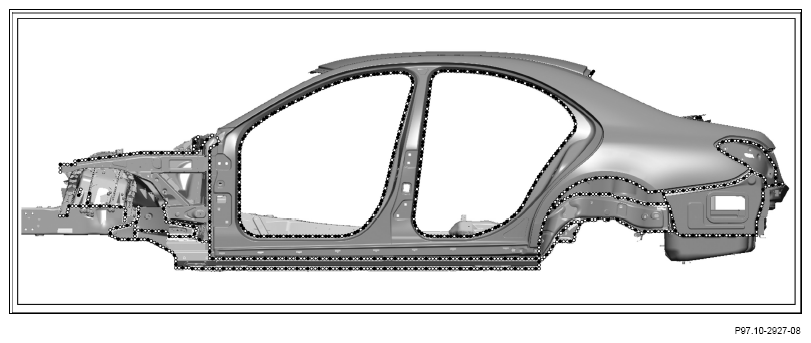

Courtesy of MERCEDES-BENZ USA

Area of B-pillar, rear fender and longitudinal member, shown on MODEL 222.0

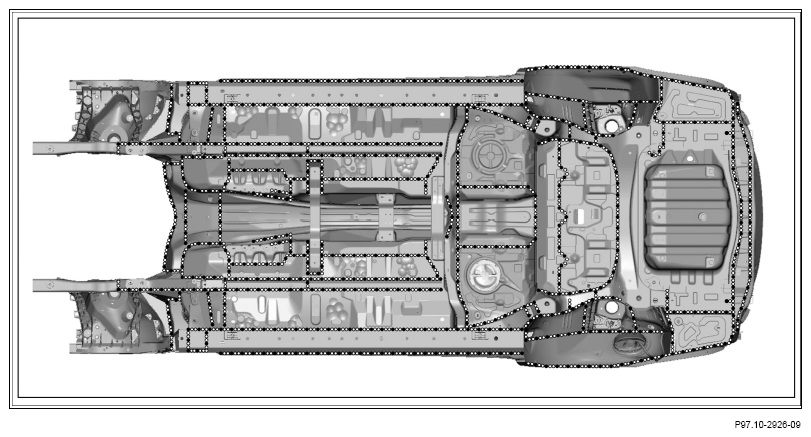

Courtesy of MERCEDES-BENZ USA

Area of underfloor and wheel well, shown on MODEL 222.0
