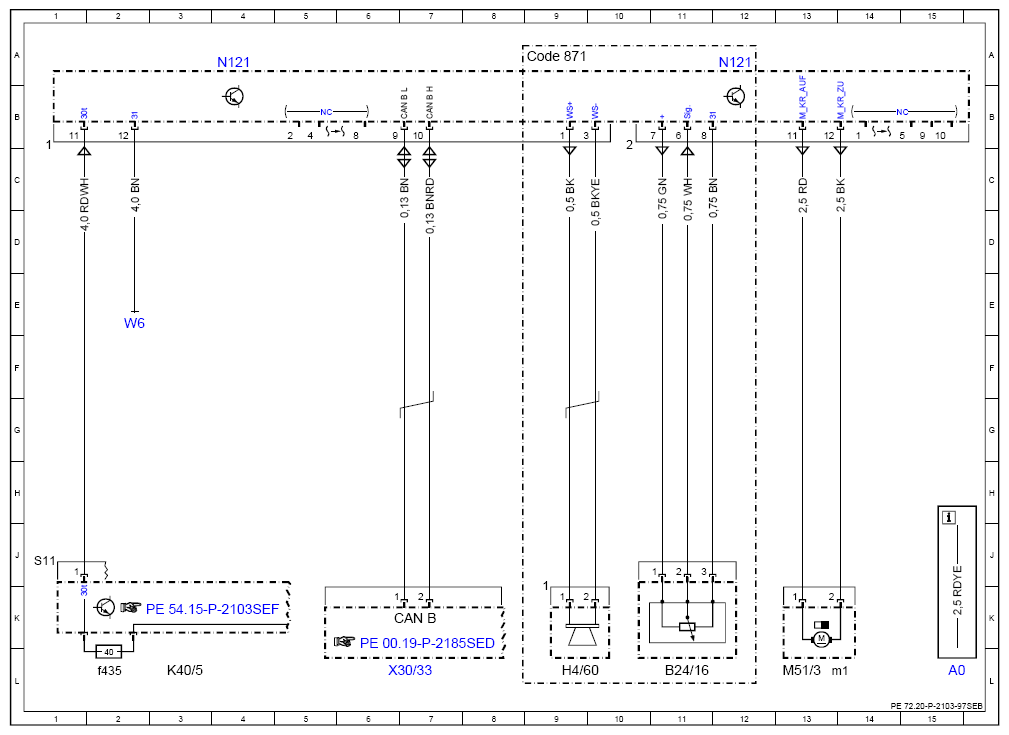

Wiring Diagram For Trunk Lid Control Unit - PE72.20-P-2103-97SEB
Model 217, 222 as of model year 2018 with code 881 (Remote boot-lid closing) Control unit N121
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| B24/16 | Trunk lid position sensor | 11L |
| CAN B | Interior CAN | 7K |
| Code 871 | Sensor system for trunk lid opening/closing | 9A |
| H4/60 | Trunk lid control warning buzzer | 9L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f435 | Fuse 435 | 2L |
| M51/3 | Trunk lid control drive unit | 13L |
| M51/3m1 | Trunk lid control electric motor | 13L |
| N121 | Trunk lid control, control unit | 4A |
| N121 | Trunk lid control, control unit | 12A |
| W6 | Left wheel arch trunk ground point | 2E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 7L |
