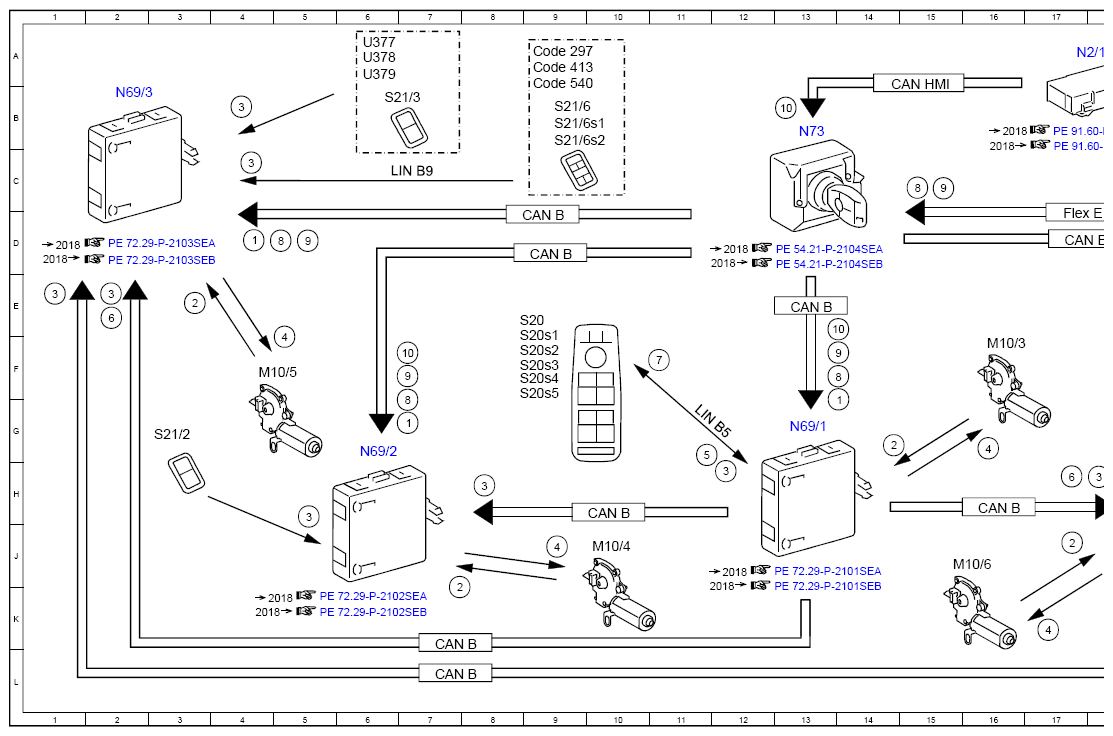

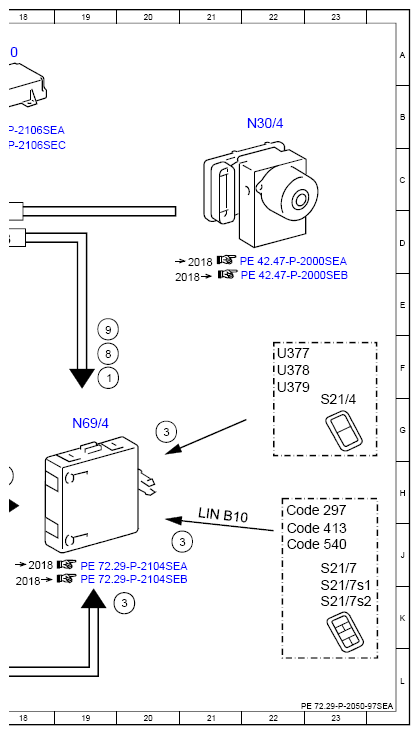

Electrical Function Diagram For Power Windows - PE72.29-P-2050-97SEA
Model 222
except code Z11 (Left front power window with special protection)
except code Z12 (Right front power window with special protection)
except code Z13 (Left rear power window with special protection)
except code Z14 (Right rear power window with special protection)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7G |
| 1 | Circuit 15, status | 19F |
| 1 | Circuit 15, status | 4D |
| 1 | Circuit 15, status | 13G |
| 10 | Crash, signal | 13B |
| 10 | Crash, signal | 7F |
| 10 | Crash, signal | 13E |
| 2 | Power window motor Hall sensor, signal | 7K |
| 2 | Power window motor Hall sensor, signal | 14G |
| 2 | Power window motor Hall sensor, signal | 17J |
| 2 | Power window motor Hall sensor, signal | 3E |
| 3 | Power window switch, status | 5H |
| 3 | Power window switch, status | 12H |
| 3 | Power window switch, status | 18H |
| 3 | Power window switch, status | 8H |
| 3 | Power window switch, status | 21J |
| 3 | Power window switch, status | 4B |
| 3 | Power window switch, status | 2E |
| 3 | Power window switch, status | 20G |
| 3 | Power window switch, status | 4C |
| 3 | Power window switch, status | 1E |
| 3 | Power window switch, status | 20K |
| 4 | Power window motor, actuation | 9J |
| 4 | Power window motor, actuation | 16G |
| 4 | Power window motor, actuation | 17K |
| 4 | Power window motor, actuation | 5F |
| 5 | Child safety lock switch, status | 11G |
| 6 | Rear side window child safety lock, status | 17H |
| 6 | Rear side window child safety lock, status | 2E |
| 7 | Rear side window child safety lock readiness indicator, request | 11F |
| 8 | PRE-SAFE®, status | 15C |
| 8 | PRE-SAFE®, status | 7G |
| 8 | PRE-SAFE®, status | 19F |
| 8 | PRE-SAFE®, status | 5D |
| 8 | PRE-SAFE®, status | 13F |
| 9 | Adjust PRE-SAFE®, request | 5D |
| 9 | Adjust PRE-SAFE®, request | 7F |
| 9 | Adjust PRE-SAFE®, request | 13F |
| 9 | Adjust PRE-SAFE®, request | 15C |
| 9 | Adjust PRE-SAFE®, request | 19E |
| CAN B | Interior CAN | 9D |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 16H |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 9D |
| CAN B | Interior CAN | 7K |
| CAN B | Interior CAN | 7L |
| CAN HMI | User interface CAN | 15B |
| Code 297 | Roller sun blinds in rear doors | 9A |
| Code 297 | Roller sun blinds in rear doors | 22H |
| Code 413 | Panoramic sliding sunroof | 9A |
| Code 413 | Panoramic sliding sunroof | 22J |
| Code 540 | Electric roller sun blind for rear window | 9B |
| Code 540 | Electric roller sun blind for rear window | 22J |
| Flex E | Chassis FlexRay | 17D |
| LIN B10 | Right rear door LIN | 21H |
| LIN B5 | Left front door LIN | 11G |
| LIN B9 | Left rear door LIN | 7C |
| M10/3 | Left front power window motor | 16F |
| M10/4 | Right front power window motor | 10J |
| M10/5 | Left rear power window motor | 4F |
| M10/6 | Right rear power window motor | 16J |
| N2/10 | Supplemental restraint system control unit | 17A |
| N30/4 | Electronic Stability Program control unit | 22B |
| N69/1 | Left front door control unit | 13G |
| N69/2 | Right front door control unit | 6G |
| N69/3 | Left rear door control unit | 2B |
| N69/4 | Right rear door control unit | 19G |
| N73 | Electronic ignition switch control unit | 13B |
| S20 | Power window and outside mirror adjustment switch group, driver side | 8E |
| S20s1 | Power window switch, driver side | 8F |
| S20s2 | Power window switch, front passenger side | 8F |
| S20s3 | Left rear power window switch | 8F |
| S20s4 | Right rear power window switch | 8F |
| S20s5 | Rear side window child safety lock switch | 8F |
| S21/2 | Power window switch, front passenger side | 3G |
| S21/3 | Left rear door power window switch | 6B |
| S21/4 | Right rear door power window switch | 23G |
| S21/6 | Left rear door switch group | 9B |
| S21/6s1 | Left rear side window roller sun blind and power window switch | 9B |
| S21/6s2 | Right rear side window roller sun blind and power window switch | 9B |
| S21/7 | Right rear door switch group | 23J |
| S21/7s1 | Right rear side window roller sun blind and power window switch | 23K |
| S21/7s2 | Left rear side window roller sun blind and power window switch | 23K |
| U377 | Not valid for panoramic sliding sunroof | 6A |
| U377 | Not valid for panoramic sliding sunroof | 22F |
| U378 | Not valid for rear window roller sun blind | 22F |
| U378 | Not valid for rear window roller sun blind | 6A |
| U379 | Not valid for rear door roller sun blinds | 22F |
| U379 | Not valid for rear door roller sun blinds | 6A |
