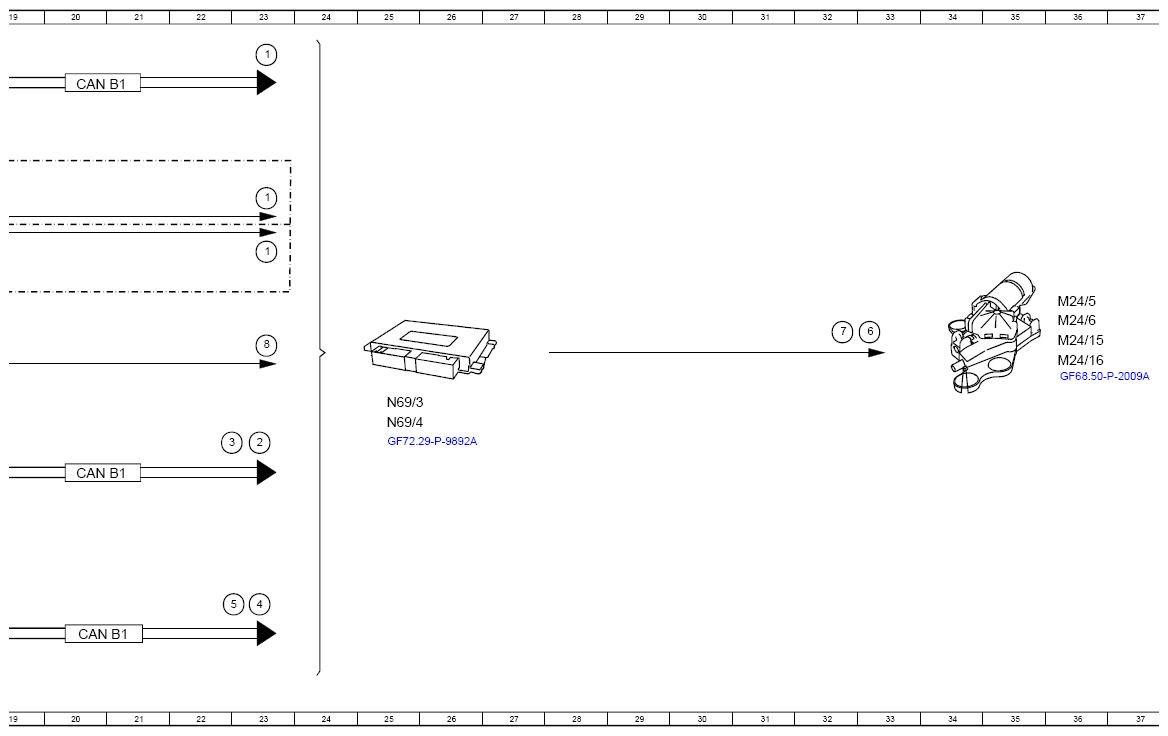

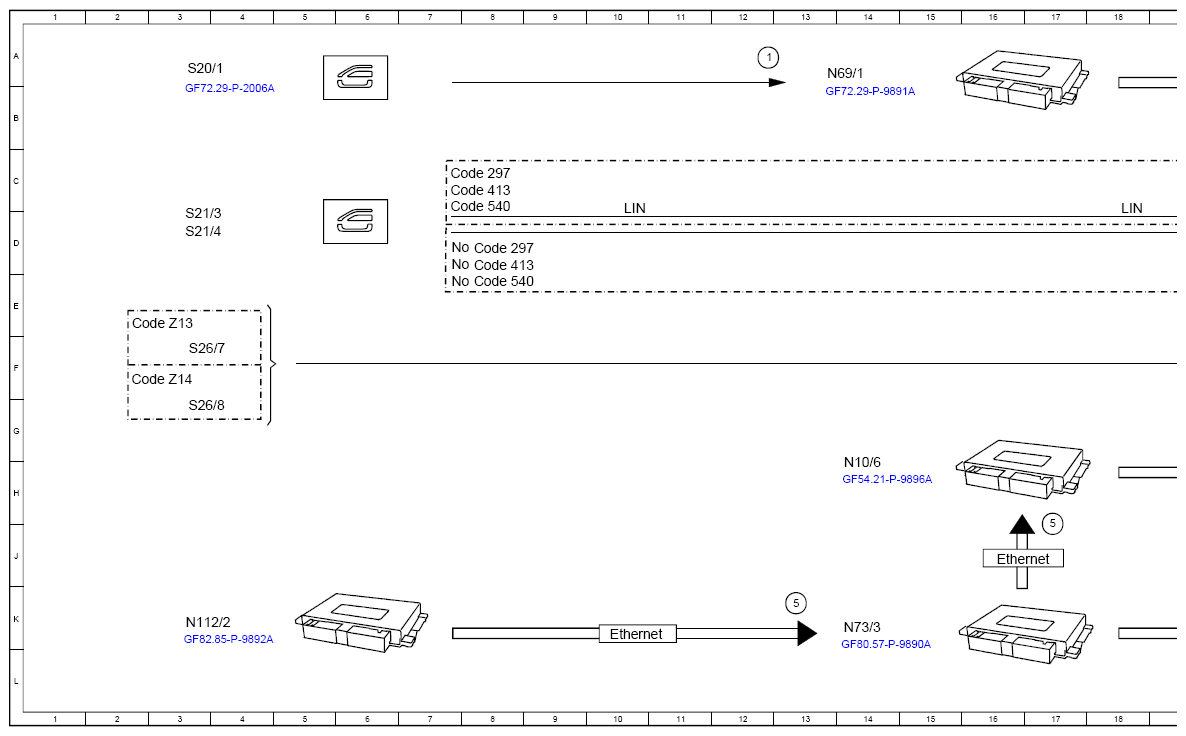

(Extend/Retract Rear Passenger Compartment Side Window Roller Sunblind, Function Schematic - PE68.50-P-2500-97B)
Model 214, 223, 296 with code 297 (Electric roller sun blind in left and right rear door)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Side window roller sun blind switch, status | 12A |
| 1 | Side window roller sun blind switch, status | 23A |
| 1 | Side window roller sun blind switch, status | - |
| 1 | Side window roller sun blind switch, status | - |
| 2 | Convenience feature, status | - |
| 3 | Convenience feature direction, signal | - |
| 4 | Circuit 15, status | - |
| 5 | Rear door roller sun blind motor, request | - |
| 5 | Rear door roller sun blind motor, request | - |
| 5 | Rear door roller sun blind motor, request | - |
| 6 | Rear door roller sun blind motor, actuation | - |
| 7 | Rear side window roller sunblind motor, actuation | - |
| 8 | Rear door hydraulic power window limit switch, status | - |
| CAN B1 | CAN 1 for vehicle interior | 20K |
| CAN B1 | CAN 1 for vehicle interior | 20H |
| CAN B1 | CAN 1 for vehicle interior | 20B |
| Code 297 | Electric roller sunblinds in left and right rear doors | 7C |
| Code 297 | Electric roller sunblinds in left and right rear doors | 8D |
| Code 413 | Panoramic sliding sunroof/glass roof | 7C |
| Code 413 | Panoramic sliding sunroof/glass roof | 8D |
| Code 540 | Electric rear window roller blind | 7C |
| Code 540 | Electric rear window roller blind | 8E |
| Code Z13 | Left rear window lifter on special protection vehicle | 2E |
| Code Z14 | Right rear window lifter on special protection vehicle | 2F |
| Ethernet | Ethernet | 10K |
| Ethernet | Ethernet | 16J |
| LIN | Local Interconnect Network | 10D |
| LIN | Local Interconnect Network | 18D |
| M24/15 | Roller sun blind motor | 36F |
| M24/16 | Roller sun blind motor | 36F |
| M24/5 | Roller sun blind motor | 36E |
| M24/6 | Roller sun blind motor | 36E |
| N10/6 | Front signal acquisition and actuation module control unit | 14H |
| N112/2 | Telematics services communication module | 3K |
| N69/1 | Left front door control unit | 13A |
| N69/3 | Left rear door control unit | 25G |
| N69/4 | Right rear door control unit | 25G |
| N73/3 | Electronic ignition switch control unit | 14K |
| S20/1 | Button group for power window and outside mirror adjustment, driver-side door | 3A |
| S21/3 | Button group for left rear door power window | 3D |
| S21/4 | Button group for right rear door power window | 3D |
| S26/7 | Left rear door hydraulic window lifter limit switch | 3F |
| S26/8 | Right rear door hydraulic window lifter limit switch | 3G |
