Remove/Install Inside Rearview Mirror - AR68.40-P-0001LF
Model 222.0/1/9

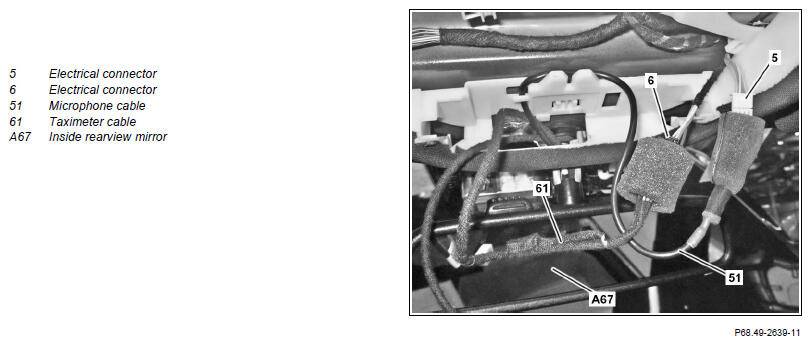

Shown on vehicle with CODE 338 (Mirror travel distance recorder)
Shown on vehicle with CODE 338 (Mirror travel distance recorder)
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit | AR82.20-P-1000LF | |

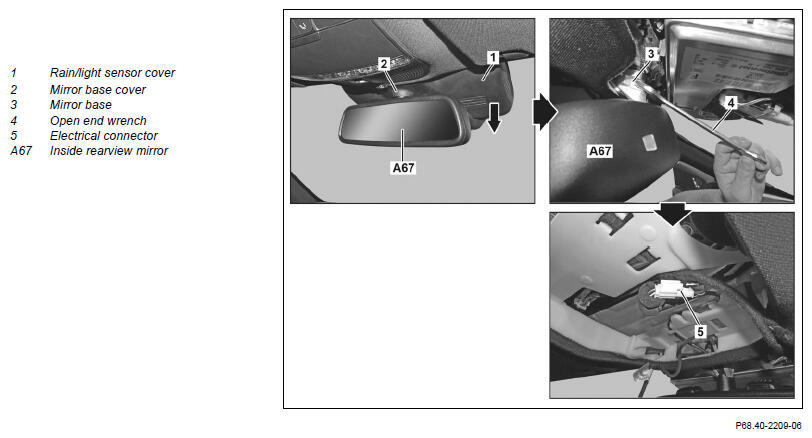

| 2 | Unclip rain/light sensor cover (1) in direction of arrow and remove | ||
| 3 | Unclip mirror base cover (2) and remove | ||

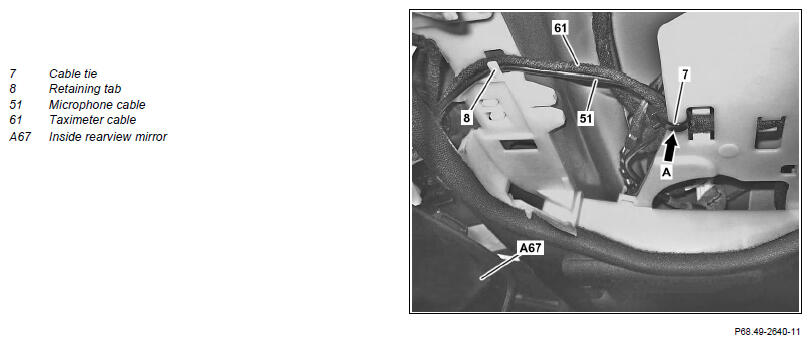

| 4 | Remove cable tie (7) from mounting point (arrow A) | MODEL 222.0/1 with CODE 338 (Mirror odometer) |
|
| 5 | Unhook taximeter cable (61) from retaining tab (8) | MODEL 222.0/1 with CODE 338 (Mirror odometer) |
|
| 6 | Unhook microphone cable (51) from retaining tab (8) | ||
| 7 | Disconnect electrical connection (5) | ||
| 8 | Disconnect electrical connector (6) | MODEL 222.0/1 with CODE 338 (Mirror odometer) |
|
| 9 | Turn inside rearview mirror (A673) on mirror base (4) to right with open end wrench and remove from mirror holder | ||
| 10 | Adjust inside rearview mirror to national version | AR68.40-P-0001-01A | |
| 11 | Install in the reverse order |
