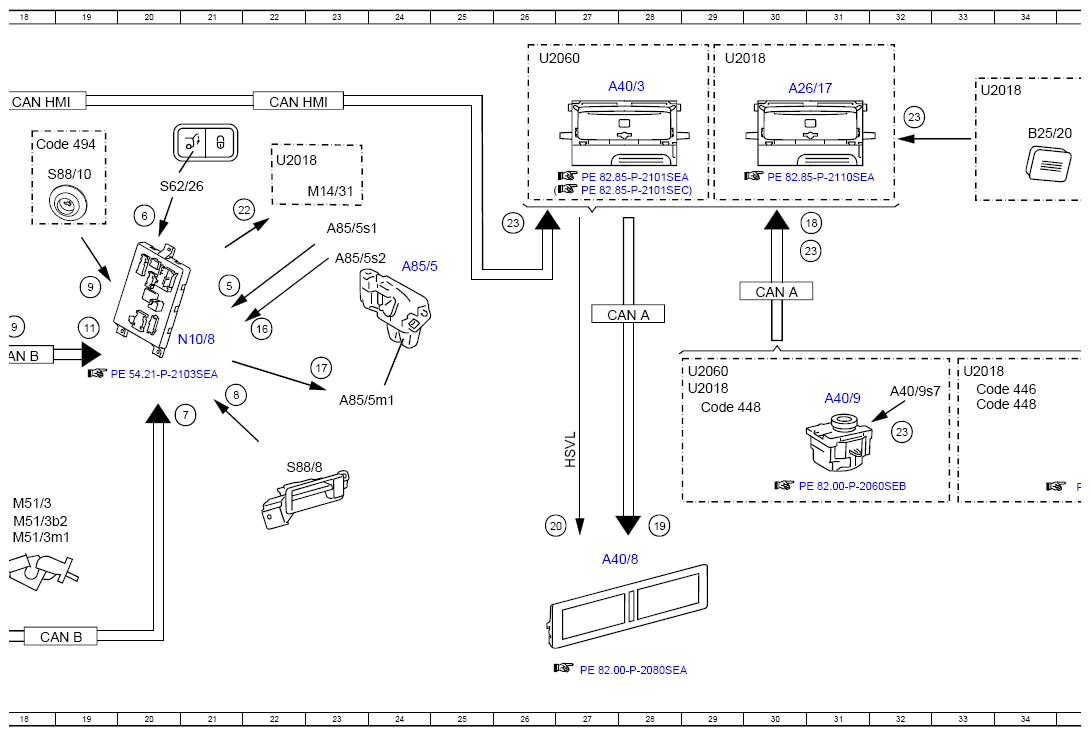

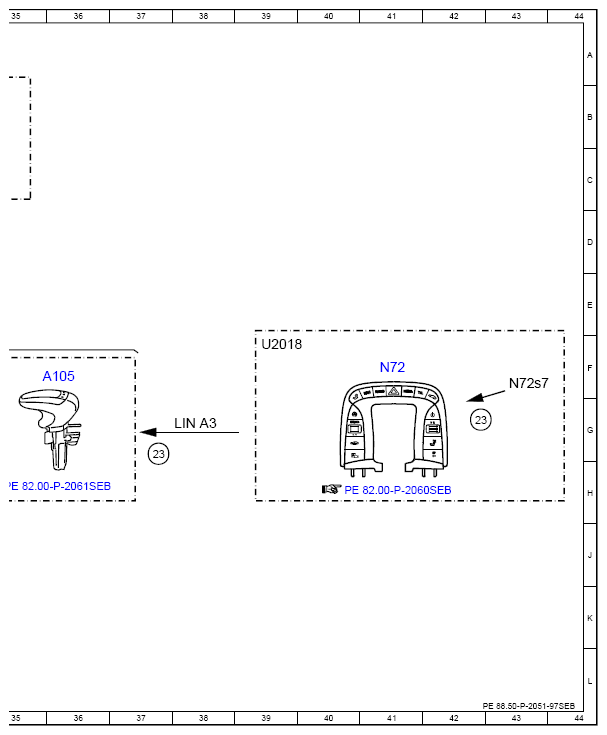

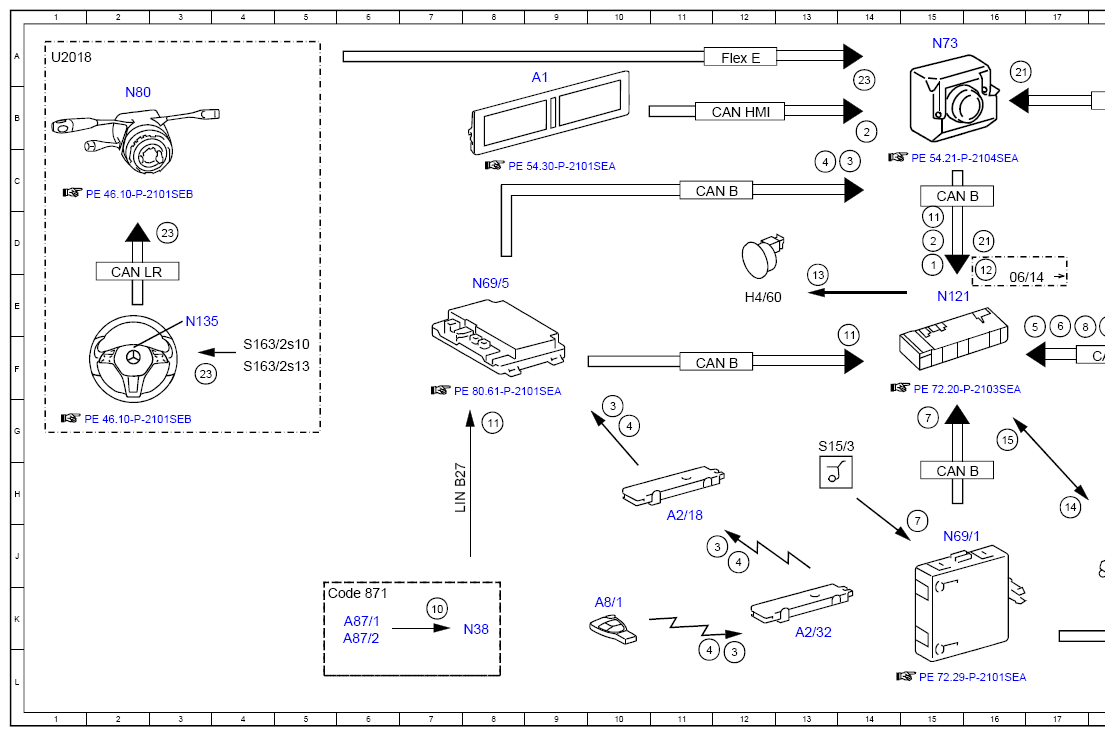

Electrical Function Schematic For Trunk Lid Control - PE88.50-P-2051-97SEB
Model 217.3
Model 222 with code 881 (Remote boot-lid closing)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15D |
| 10 | Rear switching module sensor, signal | 7K |
| 11 | Open trunk lid/liftgate, request | 15D |
| 11 | Open trunk lid/liftgate, request | 14F |
| 11 | Open trunk lid/liftgate, request | 8G |
| 11 | Open trunk lid/liftgate, request | 19E |
| 12 | Close trunk lid/liftgate, request | 16D |
| 13 | Trunk lid/liftgate control warning buzzer, actuation | 13E |
| 14 | Trunk lid/liftgate control drive unit, actuation | 17H |
| 15 | Position: data, signal | 16G |
| 16 | Trunk lid lock safety catch switch, status | 22E |
| 17 | Trunk lid lock motor, actuation | 23F |
| 18 | Audio/COMAND control panel, status | 31D |
| 19 | Audio/COMAND display, actuation | 28J |
| 2 | Vehicle speed, signal | 15D |
| 2 | Vehicle speed, signal | 14B |
| 20 | Low voltage differential signal video signal data transfer, signal | 26J |
| 21 | Opening angle limiter, request | 16D |
| 21 | Opening angle limiter, request | 16A |
| 22 | Trunk lid/liftgate lock element, actuation | 21D |
| 23 | Operation, signal | 14A |
| 23 | Operation, signal | 26D |
| 23 | Operation, signal | 32G |
| 23 | Operation, signal | 3D |
| 23 | Operation, signal | 3F |
| 23 | Operation, signal | 32B |
| 23 | Operation, signal | 37G |
| 23 | Operation, signal | 31D |
| 23 | Operation, signal | 42G |
| 3 | Transmitter key, signal | 14C |
| 3 | Transmitter key, signal | 10G |
| 3 | Transmitter key, signal | 12J |
| 3 | Transmitter key, signal | 12L |
| 4 | Access authorization code, signal | 13C |
| 4 | Access authorization code, signal | 10G |
| 4 | Access authorization code, signal | 12J |
| 4 | Access authorization code, signal | 11L |
| 5 | Trunk lid lock main catch switch, status | 17E |
| 5 | Trunk lid lock main catch switch, status | 21E |
| 6 | Trunk lid/liftgate control button, status | 20D |
| 6 | Trunk lid/liftgate control button, status | 17E |
| 7 | Driver-side trunk lid/1iftgate control button, status | 21G |
| 7 | Driver-side trunk lid/liftgate contro1 button, status | 15G |
| 7 | Driver-side trunk lid/1iftgate control button, status | 15J |
| 8 | Trunk lid/liftgate external operation switch, status | 21F |
| 8 | Trunk lid/liftgate external operation switch, status | 17E |
| 9 | Trunk lid emergency opening switch, status | 19E |
| 9 | Trunk lid emergency opening switch, status | 18E |
| A1 | Instrument cluster | 9A |
| A105 | Touchpad | 36F |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 11H |
| A2/32 | Rear window antenna | 13K |
| A26/17 | Head unit | 30B |
| A40/3 | COMAND control unit | 27 B |
| A40/8 | Audio/COMAND display | 27J |
| A40/9 | Audio/COMAND control panel | 31G |
| A40/9s7 | "CAR" button | 32F |
| A8/1 | Transmitter key | 10K |
| A85/5 | Trunk lid lock | 24D |
| A85/5m1 | Trunk lid lock motor | 23G |
| A85/5s1 | Trunk lid lock main catch switch | 23D |
| A85/5s2 | Trunk lid lock safety catch switch | 23D |
| A87/1 | Rear switching module upper sensor | 6K |
| A87/2 | Rear switching module lower sensor | 6K |
| B25/20 | Driver hands-free system microphone | 34B |
| CAN A | Telematics CAN | 28E |
| CAN A | Telematics CAN | 30E |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 15C |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 15H |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 11C |
| CAN MM! | User interface CAN | 12B |
| CAN HMI | User interface CAN | 22B |
| CAN HMI | User interface CAN | 18B |
| CAN LR | Steering wheel CAN | 2E |
| Code 446 | Touchpad only | 33F |
| Code 448 | Touchpad | 33G |
| Code 448 | Touchpad | 29G |
| Code 494 | USA version | 18B |
| Code 871 | Sensor system for trunk lid opening/closing | 5K |
| Flex E | Chassis FlexRay | 12A |
| H4/60 | Trunk lid control warning buzzer | 12E |
| HSVL | High-speed video link | 27G |
| LIN A3 | LCP LIN | 38G |
| LIN B27 | KEYLESS-GO LIN | 7H |
| Ml 4/31 | Trunk lid locking element | 23C |
| M51/3 | Trunk lid control drive unit | 18H |
| M51/3b2 | Trunk lid control position sensor | 18J |
| M51/3m1 | Trunk lid control electric motor | 18J |
| N10/8 | Rear SAM control unit | 21F |
| N121 | Trunk lid control, control unit | 15E |
| N135 | Steering wheel electronics | 3E |
| N38 | Rear switching module | 8K |
| N69/1 | Left front door control unit | 15J |
| N69/5 | KEYLESS-GO control unit | 8E |
| N72 | Lower control panel | 41F |
| N72s7 | "CAR" button | 43F |
| N73 | Electronic ignition switch control unit | 15A |
| N80 | Steering column module control unit | 2B |
| S15/3 | Driver trunk lid control button | 13G |
| S163/2s10 | Head unit finger navigation pad | 4F |
| S163/2s13 | Back button | 4F |
| S62/26 | Trunk lid control button | 20C |
| S88/10 | Trunk lid emergency opening switch | 19C |
| S88/8 | Trunk lid external operation switch | 22H |
| U2018 | Valid as of model year 2018 | 22C |
| U2018 | Valid as of model year 2018 | 29A |
| U2018 | Valid as of model year 2018 | 33B |
| U2018 | Valid as of model year 2018 | 33F |
| U2018 | Valid as of model year 2018 | 29F |
| U2018 | Valid as of model year 2018 | 39F |
| U2018 | Valid as of model year 2018 | 1A |
| U2060 | Valid up to model year 2018 | 26A |
| U2060 | Valid up to model year 2018 | 29F |
