Check Door Damper And Locking Eyes - AP72.00-P-7251SX
Model 221 with code Z07 (B7 armoring on special protection version)
Model 222 with code Z07 (B7 armoring on special protection version)

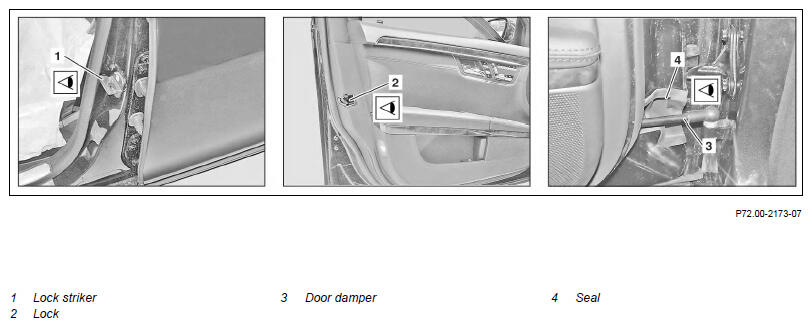

Left front door shown on model 221 with code Z07 (Highest protection)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Preparatory activity | |||
| 1 | Park the vehicle on a level, horizontal surface | Make sure that there is sufficient clearance in the door opening area. Otherwise the body can be damaged. |
|
| 2 | Open left front door, right front door and rear doors | ||
| Check | |||
| 3 | Check all lock strikers (1) as well as locks (2) for damage and tight seating | Do not apply oil or grease to the lock strikers (1) and locks (2). Otherwise increased wear can occur as a result of adhering dirt. If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check all door dampers (3) by opening and closing repeatedly in a controlled manner | Do not apply oil or grease to the door dampers (3). Otherwise increased wear can occur as a result of adhering dirt. If complaint present ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check seals (4) of door dampers (3) for damage, porous points and tight seating | If complaint present ↓ Rectify problem subject to separate repair order. |
|
| Finishing activity | |||
| 6 | Close left front door, right front door and rear doors |
