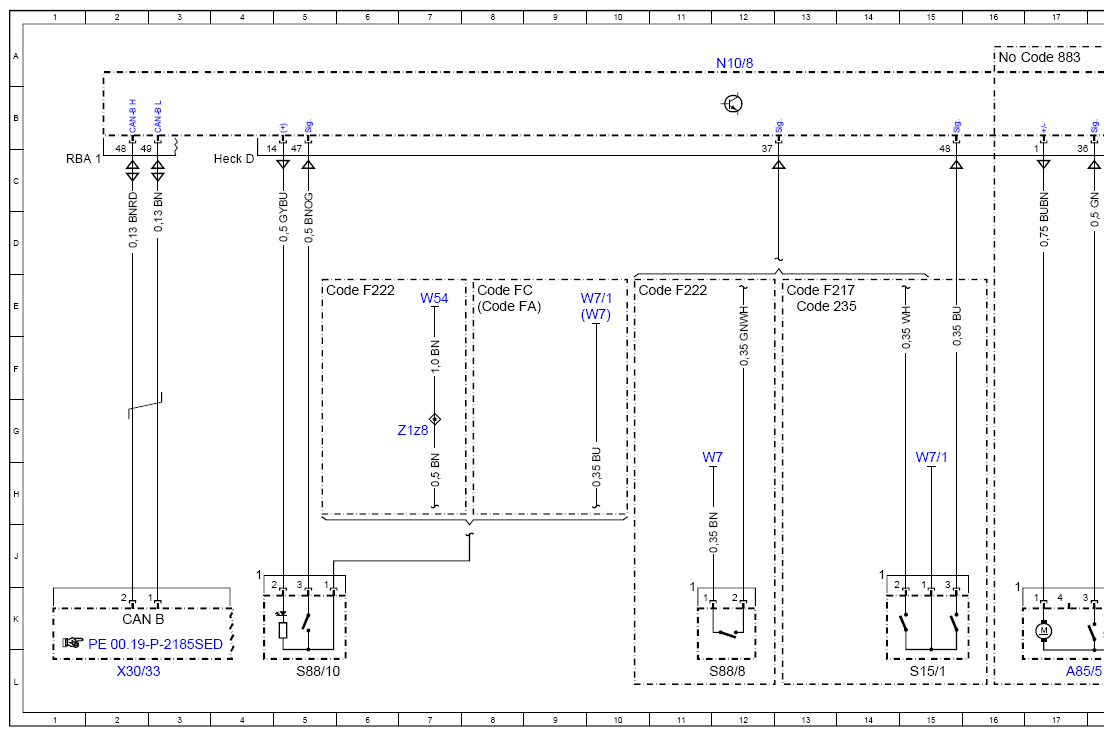

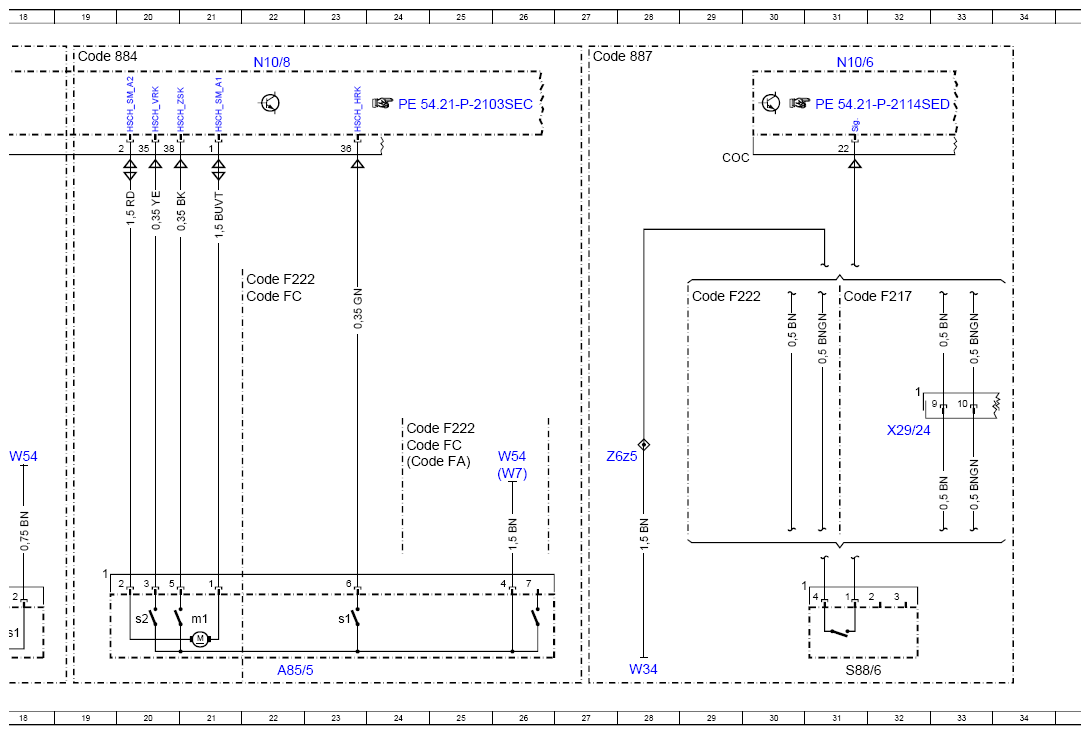

Wiring Diagram For Remote Trunk Opening, Emergency Opening, Internal Operation, External Operation - PE80.20-P-2002-97SEA
Model 217, 222 as of model year 2018
| Code: | Designation: | Position: |
|---|---|---|

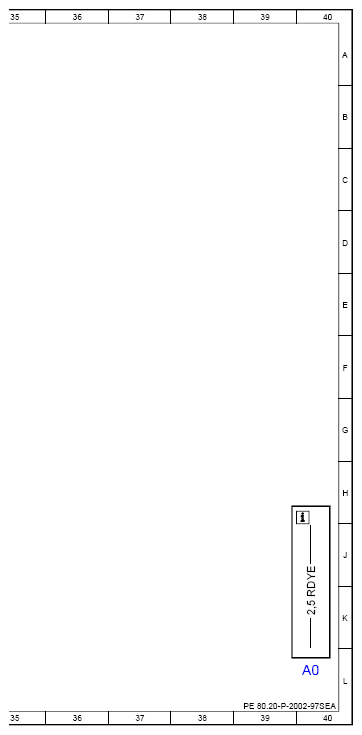

| A0 | Use of wiring diagrams | 40L |
| A85/5 | Trunk lid lock | 17L |
| A85/5 | Trunk lid lock | 22L |
| A85/5m1 | Trunk lid lock motor | 21K |
| A85/5s1 | Trunk lid lock main catch switch | 18K |
| A85/5s1 | Trunk lid lock main catch switch | 23K |
| A85/5s2 | Trunk lid lock safety catch switch | 20K |
| CAN B | Interior CAN | 2K |
| Code 235 | Active Park Assist | 13E |
| Code 883 | Power closing | 16A |
| Code 884 | Trunk lid additional lock incl. power closing | 19A |
| Code 887 | Valet parking | 27A |
| Code F217 | MODEL SERIES 217 | 13E |
| Code F217 | MODEL SERIES 217 | 31E |
| Code F222 | MODEL SERIES 222 | 5E |
| Code F222 | MODEL SERIES 222 | 10E |
| Code F222 | MODEL SERIES 222 | 22E |
| Code F222 | MODEL SERIES 222 | 24G |
| Code F222 | MODEL SERIES 222 | 29E |
| Code FA | CABRIOLET | 8E |
| Code FA | CABRIOLET | 24H |
| Code FC | COUPE | 8E |
| Code FC | COUPE | 22E |
| Code FC | COUPE | 24G |
| N10/6 | Front SAM control unit | 31A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 22A |
| S15/1 | Trunk lid release button | 15L |
| S88/10 | Trunk lid emergency opening switch | 5L |
| S88/6 | Separate trunk lid lock switch | 31L |
| S88/8 | Trunk lid external operation switch | 12L |
| W34 | Left footwell ground point | 28L |
| W54 | Right rear wheel well ground point | 7E |
| W54 | Right rear wheel well ground point | 26H |
| W54 | Right rear wheel well ground point | 18H |
| W7 | Right wheel house trunk ground point | 11H |
| W7 | Right wheel house trunk ground point | 10E |
| W7 | Right wheel house trunk ground point | 26H |
| W7/1 | Right tail lamp trunk ground point | 15H |
| W7/1 | Right tail lamp trunk ground point | 10E |
| X29/24 | Cockpit glove compartment electrical connector | 32G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 2L |
| Z1z8 | Circuit 31 connector sleeve | 7G |
| Z6z5 | Circuit 31 connector sleeve | 28G |
