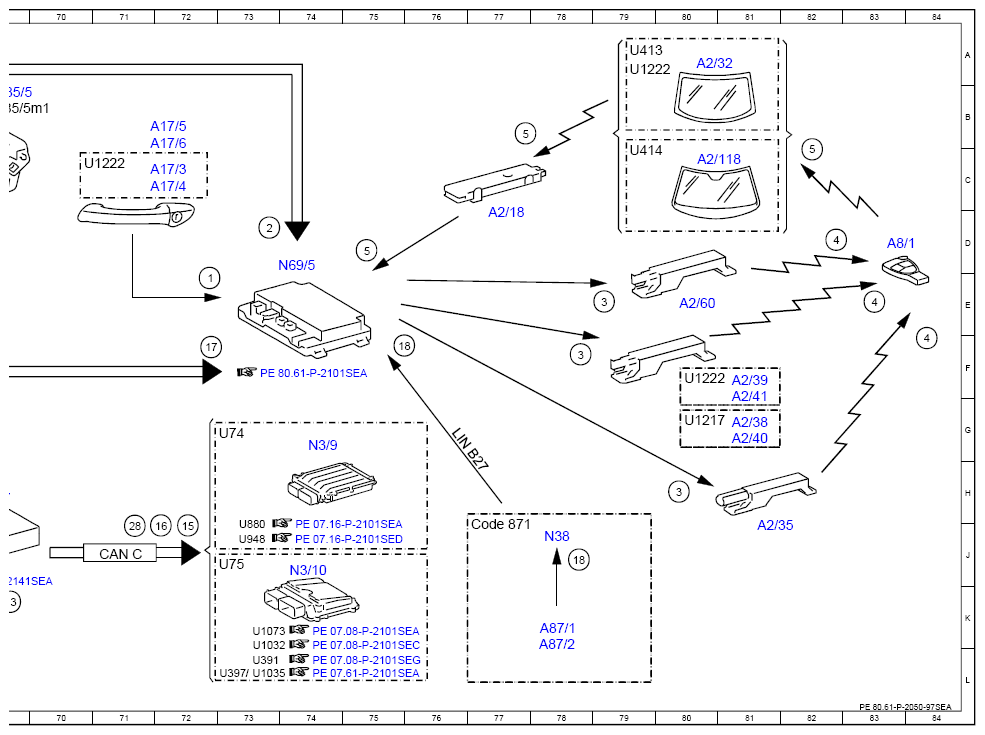

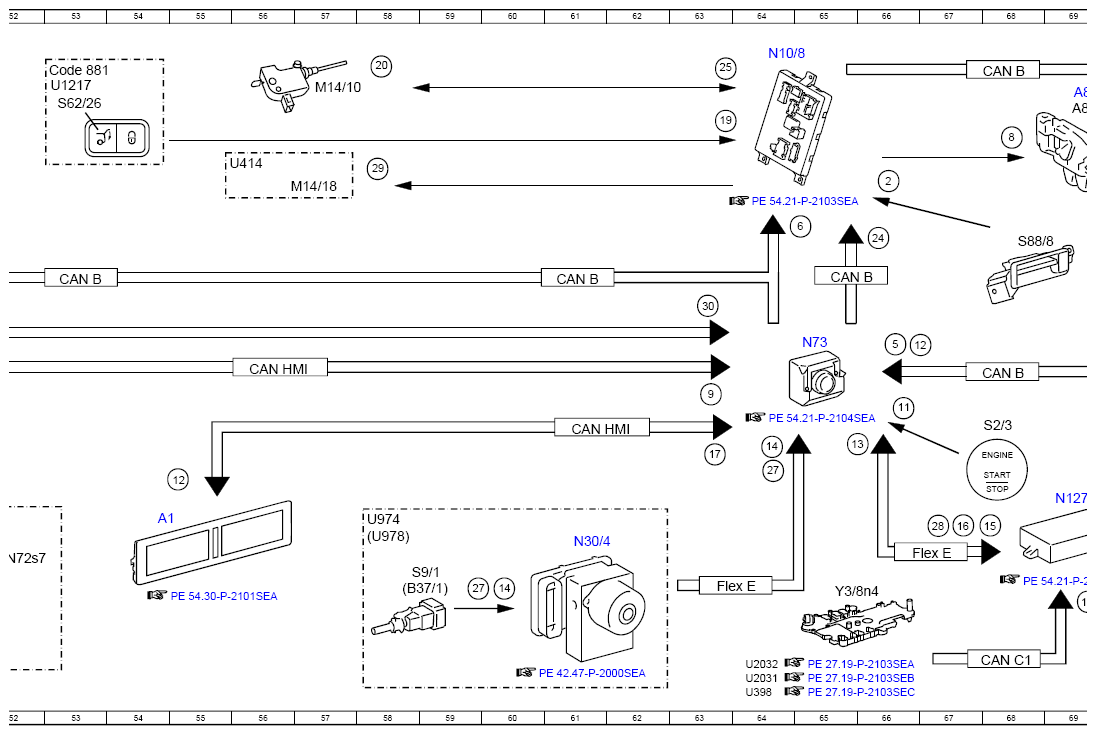

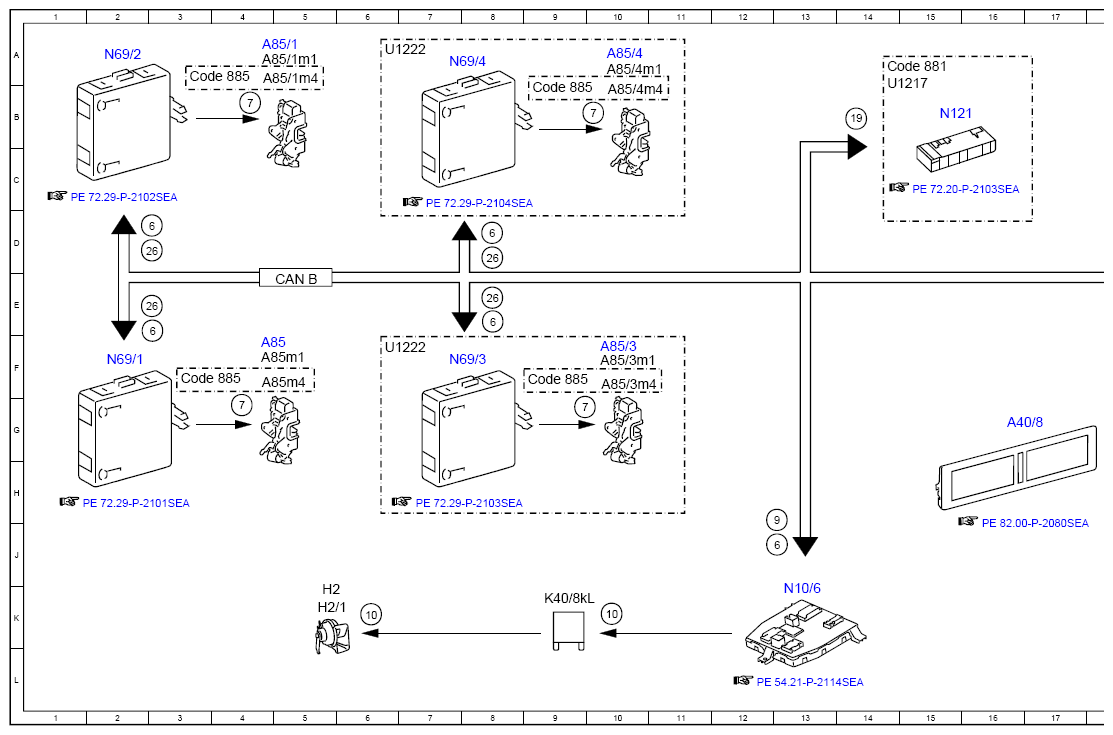

Function Schematic For Electric Keyless Go - PE80.61-P-2050-97SEA
Model 217, 222 with code 889 (KEYLESS-GO)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | KEYLESS-GO door handle, status | 72E |
| 10 | Fanfare horns, actuation | 6K |
| 10 | Fanfare horns, actuation | 10K |
| 11 | KEYLESS-GO start/stop button, status | 66G |
| 12 | Instrument cluster, message | 55H |
| 12 | Instrument cluster, message | 66F |
| 13 | Selector lever position, status | 69K |
| 13 | Selector lever position, status | 65G |
| 14 | Brake light switch, status | 60K |
| 14 | Brake light switch, status | 64G |
| 15 | Circuit 15C, status | 68J |
| 15 | Circuit 15C, status | 72J |
| 16 | Circuit 50, status | 67J |
| 16 | Circuit 50, status | 72J |
| 17 | Vehicle speed, signal | 63G |
| 17 | Vehicle speed, signal | 72F |
| 18 | Rear switching module sensor, signal | 78J |
| 18 | Rear switching module sensor, signal | 75F |
| 19 | Trunk lid/liftgate control button, status | 63B |
| 19 | Trunk lid/liftgate control button, status | 14B |
| 2 | Trunk lid/liftgate external operation switch, status | 66C |
| 2 | Trunk lid/liftgate external operation switch, status | 73D |
| 20 | Tank cap central locking actuator, actuation | 58A |
| 21 | Audio/COMAND control panel, status | 37H |
| 22 | Audio/COMAND display, actuation | 18H |
| 23 | Low voltage differential signal video signal data transfer, signal | 18G |
| 24 | Open trunk lid/liftgate, request | 66D |
| 25 | Tank cap central locking actuator, status | 63A |
| 26 | Additional locking, request | 3D |
| 26 | Additional locking, request | 3E |
| 26 | Additional locking, request | 8D |
| 26 | Additional locking, request | 8E |
| 27 | Pedal angle sensor, signal | 59K |
| 27 | Pedal angle sensor, signal | 64H |
| 28 | Engine stop enable, status | 67J |
| 28 | Engine stop enable, status | 71J |
| 29 | Glove compartment central locking actuator motor, actuation | 28C |
| 3 | KEYLESS-GO antenna, actuation | 80H |
| 3 | KEYLESS-GO antenna, actuation | 78F |
| 3 | KEYLESS-GO antenna, actuation | 79E |
| 30 | Operation, signal | 26F |
| 30 | Operation, signal | 30F |
| 30 | Operation, signal | 34H |
| 30 | Operation, signal | 31J |
| 30 | Operation, signal | 41J |
| 30 | Operation, signal | 47K |
| 30 | Operation, signal | 51K |
| 30 | Operation, signal | 63E |
| 30 | Operation, signal | 37H |
| 4 | Transmitter key, request | 84F |
| 4 | Transmitter key, request | 83E |
| 4 | Transmitter key, request | 82D |
| 5 | Access authorization code, signal | 66F |
| 5 | Access authorization code, signal | 82C |
| 5 | Access authorization code, signal | 77B |
| 5 | Access authorization code, signal | 75D |
| 6 | Open/close central locking, request | 3D |
| 6 | Open/close central locking, request | 3E |
| 6 | Open/close central locking, request | 8D |
| 6 | Open/close central locking, request | 8E |
| 6 | Open/close central locking, request | 13J |
| 6 | Open/close central locking, request | 65D |
| 7 | Central locking motor, actuation | 4B |
| 7 | Central locking motor, actuation | 4G |
| 7 | Central locking motor, actuation | 9G |
| 7 | Central locking motor, actuation | 10B |
| 8 | Trunk lid lock motor, actuation | 68B |
| 9 | Acoustic locking feedback, status | 63G |
| 9 | Acoustic locking feedback, status | 13J |
| A1 | Instrument cluster | 54J |
| A105 | Touchpad | 45J |
| A17/3 | Left rear KEYLESS GO door handle | 72C |
| A17/4 | Right rear KEYLESS GO door handle | 72C |
| A17/5 | Driver door KEYLESS-GO door handle | 72B |
| A17/6 | Front passenger door KEYLESS-GO door handle | 72B |
| A2/118 | Windshield antenna | 80C |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 77D |
| A2/32 | Rear window antenna | 80A |
| A2/35 | Trunk KEYLESS GO antenna | 81J |
| A2/38 | Left front door KEYLESS-GO antenna | 81G |
| A2/39 | Left rear door KEYLESS GO antenna | 81F |
| A2/40 | Right front door KEYLESS-GO antenna | 81G |
| A2/41 | Right rear door KEYLESS GO antenna | 81G |
| A2/60 | Center console KEYLESS-GO antenna | 80E |
| A26/17 | Head unit | 33J |
| A40/3 | COMAND control unit | 36J |
| A40/8 | Audio/COMAND display | 16G |
| A40/9 | Audio/COMAND control panel | 40J |
| A40/9s7 | "CAR" button | 41J |
| A8/1 | Transmitter key | 83D |
| A85 | Left front door lock | 4F |
| A85/1 | Right front door lock | 4A |
| A85/1m1 | Right front door central locking motor | 5A |
| A85/1m4 | Right front door additional door lock actuator motor | 5A |
| A85/3 | Left rear door lock | 10F |
| A85/3m1 | Left rear door central locking motor | 10F |
| A85/3m4 | Left rear door additional door lock actuator motor | 10F |
| A85/4 | Right rear door lock | 10A |
| A85/4m1 | Right rear door central locking motor | 10A |
| A85/4m4 | Right rear door additional door lock actuator motor | 10B |
| A85/5 | Trunk lid lock | 69B |
| A85/5m1 | Trunk lid lock motor | 69B |
| A85m1 | Left front door central locking motor | 5F |
| A85m4 | Left front door additional door lock actuator motor | 5F |
| A87/1 | Rear switching module upper sensor | 78K |
| A87/2 | Rear switching module lower sensor | 78L |
| B25/20 | Driver hands-free system microphone | 29K |
| B37/1 | Pedal angle sensor | 58K |
| CAN A | Telematics CAN | 39H |
| CAN A | Telematics CAN | 30H |
| CAN A | Telematics CAN | 21H |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 65E |
| CAN B | Interior CAN | 68F |
| CAN B | Interior CAN | 68A |
| CAN B | Interior CAN | 53E |
| CAN B | Interior CAN | 19E |
| CAN B | Interior CAN | 61E |
| CAN B | Interior CAN | 28C |
| CAN C | Engine CAN | 71J |
| CAN C1 | Drive train CAN | 68L |
| CAN HMI | User interface CAN | 61G |
| CAN HMI | User interface CAN | 56F |
| CAN LR | Steering wheel CAN | 28E |
| Code 446 | Touchpad only | 42J |
| Code 448 | Touchpad | 42J |
| Code 448 | Touchpad | 38J |
| Code 871 | Sensor system for trunk lid opening/closing | 77J |
| Code 881 | Trunk lid control | 53A |
| Code 881 | Trunk lid control | 14A |
| Code 885 | Increased theft protection | 3A |
| Code 885 | Increased theft protection | 9B |
| Code 885 | Increased theft protection | 3F |
| Code 885 | Increased theft protection | 9F |
| Flex E | Chassis FlexRay | 63K |
| Flex E | Chassis FlexRay | 67J |
| Flex E | Chassis FlexRay | 46F |
| H2 | Left fanfare horn | 5K |
| H2/1 | Right fanfare horn | 5K |
| HSVL | High-speed video link | 21G |
| HSVL | High-speed video link | 31G |
| K40/8kL | Fanfare horn relay | 9K |
| LIN A3 | LCP LIN | 47K |
| LIN B27 | KEYLESS-GO LIN | 76G |
| M14/10 | Tank cap central locking actuator | 57B |
| M14/18 | Glove compartment central locking actuator motor | 57C |
| N10/6 | Front SAM control unit | 13K |
| N10/8 | Rear SAM control unit | 64A |
| N121 | Trunk lid control, control unit | 15B |
| N127 | Drivetrain control unit | 69H |
| N135 | Steering wheel electronics | 27E |
| N3/10 | ME-SFI [ME] control unit | 74J |
| N3/9 | CDI control unit | 74G |
| N30/4 | Electronic Stability Program control unit | 61J |
| N38 | Rear switching module | 78J |
| N69/1 | Left front door control unit | 2F |
| N69/2 | Right front door control unit | 2A |
| N69/3 | Left rear door control unit | 7F |
| N69/4 | Right rear door control unit | 7A |
| N69/5 | KEYLESS-GO control unit | 73D |
| N72 | Lower control panel | 50J |
| N72s7 | "CAR" button | 52J |
| N73 | Electronic ignition switch control unit | 65F |
| N80 | Steering column module control unit | 32E |
| S163/2s10 | Head unit finger navigation pad | 28F |
| S163/2s13 | Back button | 28F |
| S2/3 | KEYLESS GO start/stop button | 68G |
| S62/26 | Trunk lid control button | 53B |
| S88/8 | Trunk lid external operation switch | 68D |
| S9/1 | Stop lamp switch | 58J |
| U1032 | Valid for engine 278 and 157 | 73L |
| U1035 | Valid for gasoline engine 279 | 73L |
| U1073 | Valid for gasoline engine 276.9 | 73K |
| U1217 | Valid for model series 217 | 80G |
| U1217 | Valid for model series 217 | 14B |
| U1217 | Valid for model series 217 | 53B |
| U1222 | Valid for model series 222 | 70C |
| U1222 | Valid for model series 222 | 6A |
| U1222 | Valid for model series 222 | 6F |
| U1222 | Valid for model series 222 | 80F |
| U1222 | Valid for model series 222 | 79A |
| U2018 | Valid as of model year 2018 | 32J |
| U2018 | Valid as of model year 2018 | 28J |
| U2018 | Valid as of model year 2018 | 42J |
| U2018 | Valid as of model year 2018 | 38J |
| U2018 | Valid as of model year 2018 | 48J |
| U2018 | Valid as of model year 2018 | 25D |
| U2031 | Valid for transmission 724 | 64L |
| U2032 | Valid for transmission 722 | 64L |
| U2060 | Valid up to model year 2018 | 35J |
| U2060 | Valid up to model year 2018 | 38J |
| U391 | Valid for gasoline engine 276.8 | 73L |
| U397 | Valid for gasoline engine 277 | 73L |
| U398 | Valid for transmission 725 (NAG3) | 64L |
| U413 | Valid for model 217.3 | 79A |
| U414 | Valid for model 217.4 | 55C |
| U414 | Valid for model 217.4 | 79C |
| U74 | Valid for diesel engines | 73G |
| U75 | Valid for gasoline engines | 73J |
| U880 | Valid for diesel engine 642 | 73J |
| U948 | Valid for diesel engine 651 | 73J |
| U974 | Not valid for hybrid drive | 58J |
| U978 | Valid for hybrid drive | 58J |
| Y3/8n4 | Fully integrated transmission control, control unit | 65K |
