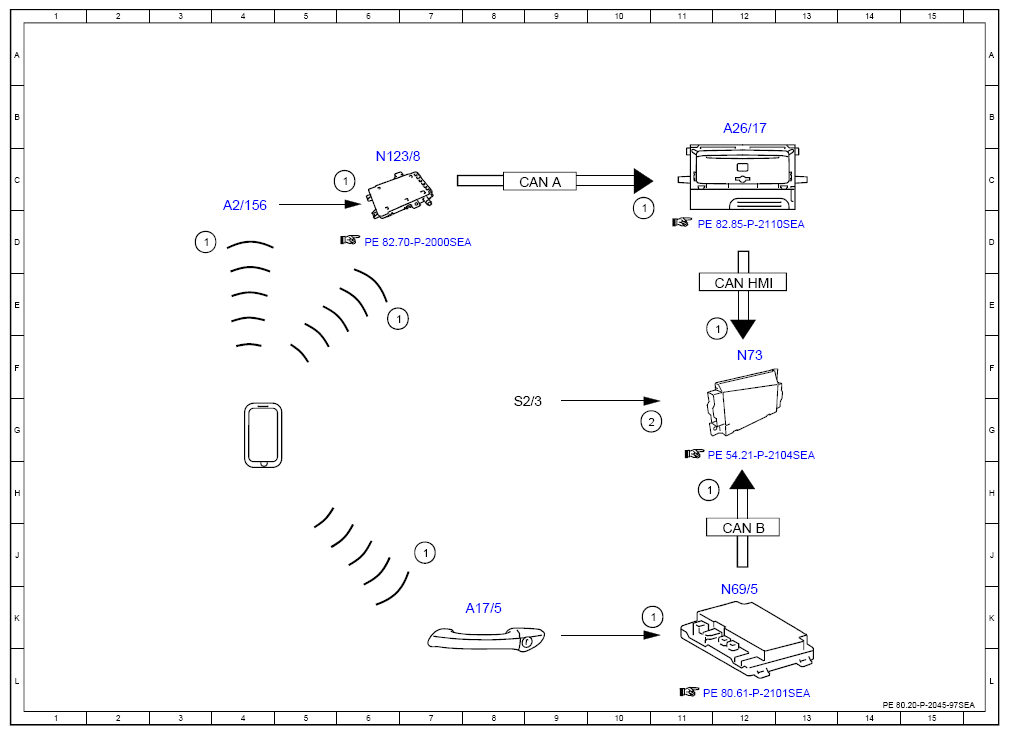

Electrical Function Schematic For Digital Key In Smartphone - PE80.20-P-2045-97SEA
Model 217, 222 as of model year 2018 with code 896 (Vehicle access and drive authorization via mobile phone)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 6E |
| 1 | Access authorization code, signal | 10D |
| 1 | Access authorization code, signal | 12E |
| 1 | Access authorization code, signal | 11H |
| 1 | Access authorization code, signal | 11K |
| 1 | Access authorization code, signal | 7J |
| 1 | Access authorization code, signal | 3D |
| 2 | KEYLESS-GO start/stop button, status | 10G |
| A17/5 | Driver door KEYLESS-GO door handle | 8K |
| A2/156 | Near Field Communication antenna | 4C |
| A26/17 | Head unit | 12B |
| CAN A | Telematics CAN | 9C |
| CAN B | Interior CAN | 12J |
| CAN HMI | User interface CAN | 12E |
| N123/8 | Mobile phone cradle control unit | 6C |
| N69/5 | KEYLESS-GO control unit | 12K |
| N73 | Electronic ignition switch control unit | 12F |
| S2/3 | KEYLESS GO start/stop button | 8G |
