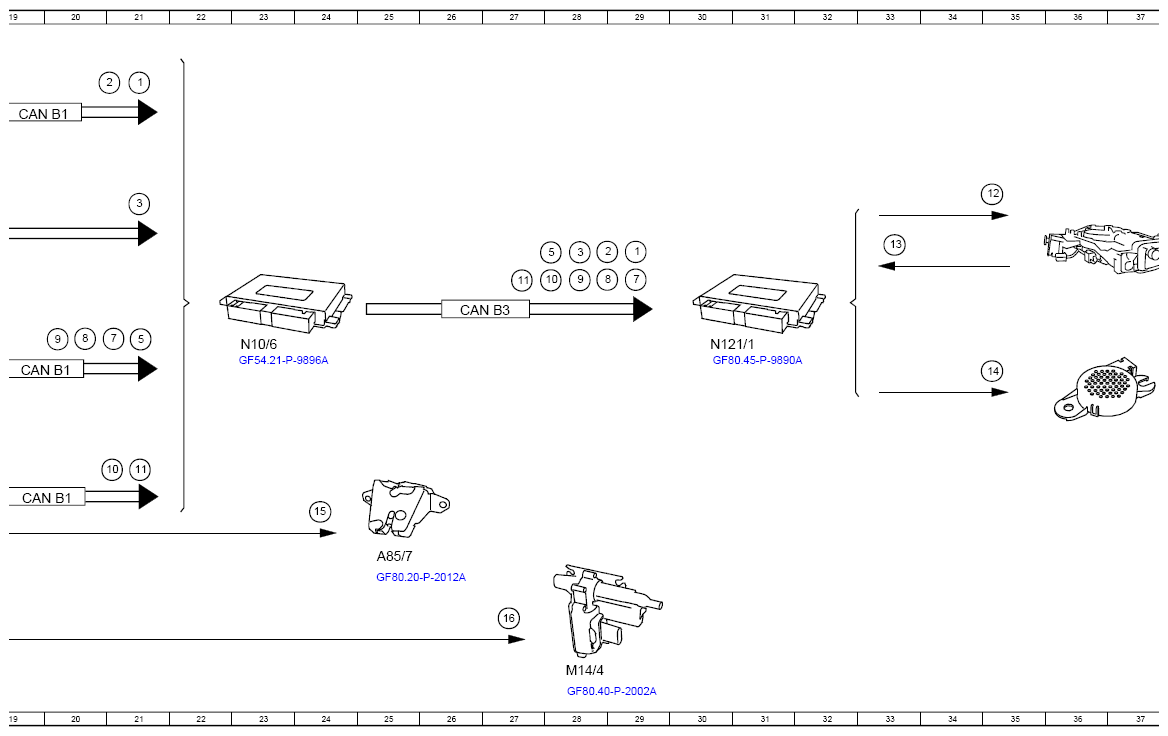

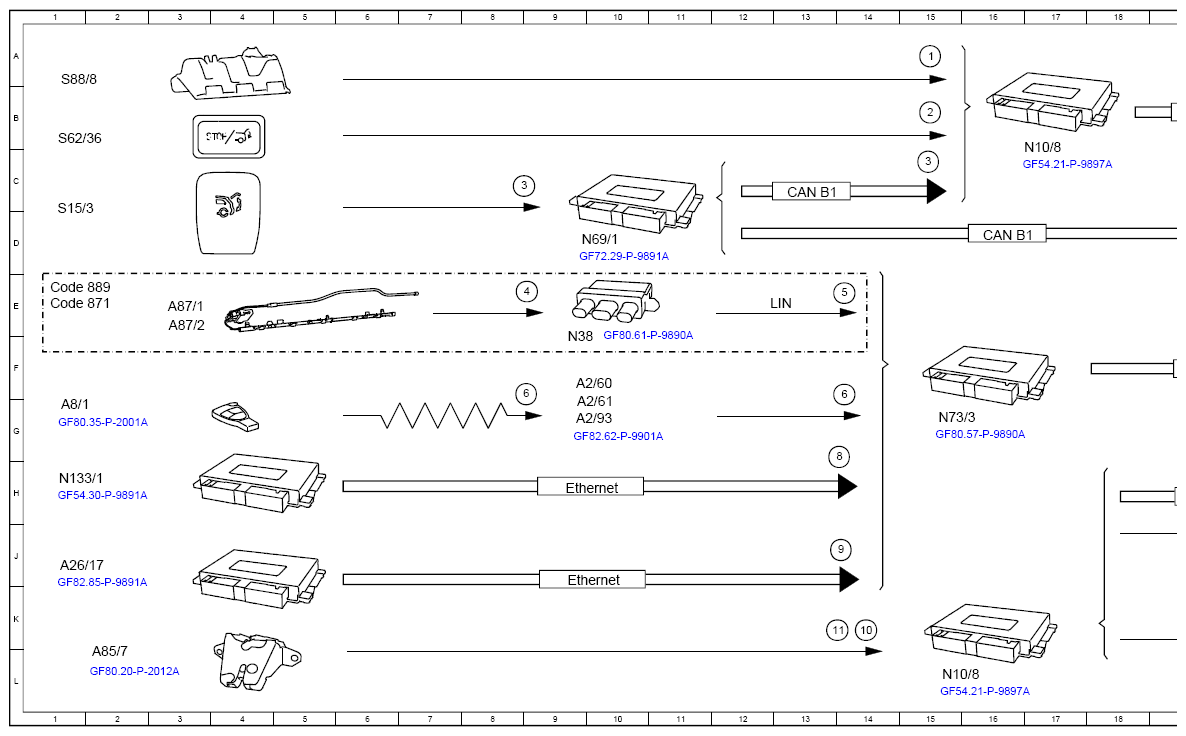

(Function Schematic For Trunk Lid Control - PE80.45-P-2503-97C)
Model 295 with code 881 (Remote boot-lid closing)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | External operation microswitch, status | - |
| 1 | External operation microswitch, status | - |
| 1 | External operation microswitch, status | - |
| 10 | Trunk lid/liftgate lock safety catch switch, status | - |
| 10 | Trunk lid/liftgate lock safety catch switch, status | - |
| 10 | Trunk lid/liftgate lock safety catch switch, status | - |
| 11 | Trunk lid/liftgate lock main catch switch, status | - |
| 11 | Trunk lid/liftgate lock main catch switch, status | - |
| 11 | Trunk lid/liftgate lock main catch switch, status | - |
| 12 | Trunk lid/liftgate control drive unit, actuation | - |
| 13 | Hall sensors, signal | - |
| 14 | Warning buzzer, actuation | - |
| 15 | Trunk lid/liftgate lock motor, actuation | - |
| 16 | Trunk lid/liftgate lock element, actuation | - |
| 2 | Trunk lid/liftgate control button, status | - |
| 2 | Trunk lid/liftgate control button, status | - |
| 2 | Trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 3 | Driver-side trunk lid/liftgate control button, status | - |
| 4 | Rear switching module sensor, signal | - |
| 5 | Open trunk lid/liftgate, request | - |
| 5 | Open trunk lid/liftgate, request | - |
| 5 | Open trunk lid/liftgate, request | - |
| 6 | Access authorization code, signal | - |
| 6 | Access authorization code, signal | - |
| 7 | Circuit 15, status | - |
| 7 | Circuit 15, status | - |
| 8 | Displayed vehicle speed, signal | - |
| 8 | Displayed vehicle speed, signal | - |
| 8 | Displayed vehicle speed, signal | - |
| 9 | Opening angle limiter, request | - |
| 9 | Opening angle limiter, request | - |
| 9 | Opening angle limiter, request | - |
| A2/60 | KEYLESS-GO antenna | 9F |
| A2/61 | KEYLESS-GO antenna | 9G |
| A2/93 | Roof antenna module | 9G |
| A26/17 | Head unit | 1J |
| A8/1 | Transmitter key | 1G |
| A85/7 | Trunk lid/tailgate lock | 2L |
| A85/7 | Trunk lid/tailgate lock | 25J |
| A87/1 | Rear switch module sensor | 3E |
| A87/2 | Rear switch module sensor | 3E |
| CAN B1 | CAN 1 for vehicle interior | 19F |
| CAN B1 | CAN 1 for vehicle interior | 19H |
| CAN B1 | CAN 1 for vehicle interior | 13C |
| CAN B1 | CAN 1 for vehicle interior | 16D |
| CAN B1 | CAN 1 for vehicle interior | 19B |
| CAN B3 | CAN 3 for vehicle interior | 26E |
| Code 871 | Sensor system for trunk lid opening/closing | 1E |
| Code 889 | KEYLESS-GO | 1E |
| Ethernet | Ethernet | 9H |
| Ethernet | Ethernet | 9J |
| H4/60 | Trunk lid/liftgate control warning buzzer | 38F |
| LIN | Local Interconnect Network | 13E |
| M14/4 | Trunk lid/liftgate locking element | 28L |
| M51/3 | Trunk lid/liftgate control drive unit | 38D |
| N10/6 | Front signal acquisition and actuation module control unit | 23F |
| N10/8 | Rear signal acquisition and actuation module control unit | 15L |
| N10/8 | Rear signal acquisition and actuation module control unit | 17C |
| N121/1 | Trunk lid/tailgate control system control unit | 30F |
| N133/1 | Instrument cluster control unit | 1H |
| N38 | Rear switching module | 9F |
| N69/1 | Left front door control unit | 10D |
| N73/3 | Electronic ignition switch control unit | 15G |
| S15/3 | Trunk lid/tailgate control button | 1D |
| S62/36 | Trunk lid/liftgate control button | 1B |
| S88/8 | Trunk lid/tailgate external operation button | 1A |
