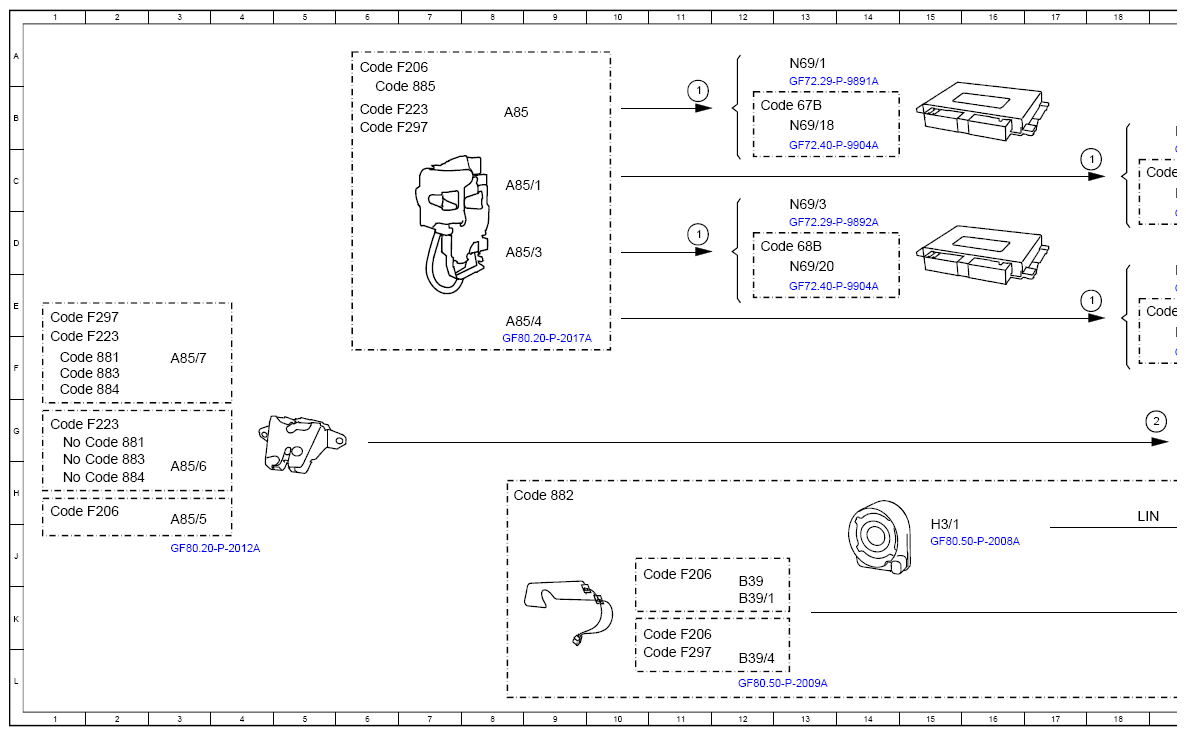

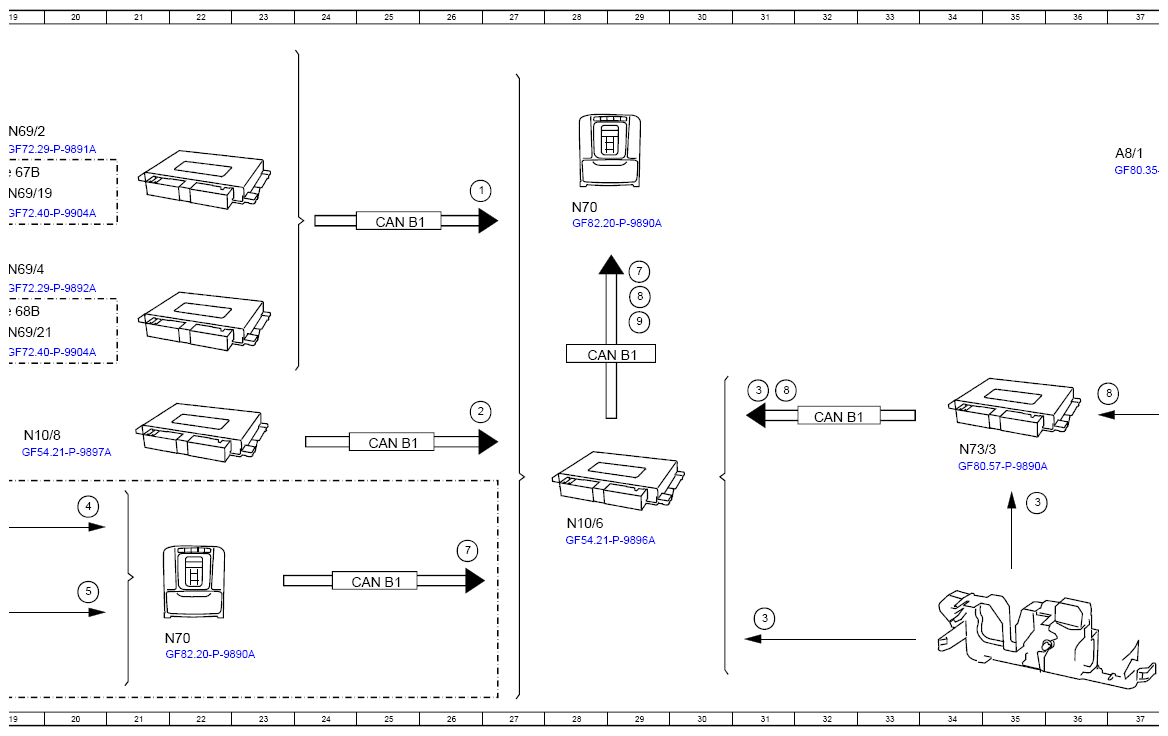

(Function Schematic For Triggering Of Anti-Theft Alarm System Alarm - PE80.50-P-2500-97C)
Model 206, 214, 223, 236, 254, 297 with code 551 (Standard anti-theft alarm system (ATA))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Main locking position microswitch, status | - |
| 1 | Main locking position microswitch, status | - |
| 1 | Main locking position microswitch, status | - |
| 1 | Main locking position microswitch, status | - |
| 1 | Main locking position microswitch, status | - |
| 2 | Trunk lid/liftgate lock main catch switch, status | - |
| 2 | Trunk lid/liftgate lock main catch switch, status | - |
| 3 | Engine hood contact switch, status | 31K |
| 3 | Engine hood contact switch, status | 31F |
| 3 | Engine hood contact switch, status | 35H |
| 4 | Alarm siren, status | 20H |
| 5 | Glass breakage sensor, status | 20K |
| 7 | ATA [EDW] alarm, signal | 26J |
| 7 | ATA [EDW] alarm, signal | 29E |
| 8 | Panic alarm, signal | 31F |
| 8 | Panic alarm, signal | 36F |
| 8 | Panic alarm, signal | 29E |
| 8 | Panic alarm, signal | 39F |
| 9 | Anti-theft alarm system, status | 29E |
| A2/93 | Roof antenna module | 38G |
| A8/1 | Transmitter key | 37C |
| A85 | Left front door lock | 8B |
| A85/1 | Right front door lock | 8C |
| A85/3 | Left rear door lock | 8D |
| A85/4 | Right rear door lock | 8E |
| A85/5 | Trunk lid/liftgate lock | 3H |
| A85/6 | Trunk lid/tailgate lock | 3H |
| A85/7 | Trunk lid/tailgate lock | 3F |
| B39 | Left rear window glass breakage sensor | 12J |
| B39/1 | Right rear window glass breakage sensor | 12K |
| B39/4 | Rear window glass breakage sensor | 12L |
| CAN B1 | CAN 1 for vehicle interior | 25J |
| CAN B1 | CAN 1 for vehicle interior | 25G |
| CAN B1 | CAN 1 for vehicle interior | 25D |
| CAN B1 | CAN 1 for vehicle interior | 32G |
| CAN B1 | CAN 1 for vehicle interior | 28F |
| Code 67B | Automatic driver's door | 12B |
| Code 67B | Automatic driver's door | 18C |
| Code 68B | Automatic rear door | 12D |
| Code 68B | Automatic rear door | 18E |
| Code 881 | Remote trunk closing | 1G |
| Code 881 | Remote trunk closing | 1F |
| Code 882 | Anti-theft alarm system sensor system and siren | 8H |
| Code 883 | Power locking | 1H |
| Code 883 | Power locking | 1F |
| Code 884 | Trunk lid auxiliary lock | 1H |
| Code 884 | Trunk lid auxiliary lock | 1F |
| Code 885 | Increased theft protection | 6B |
| Code F206 | Model series 206 | 1H |
| Code F206 | Model series 206 | 10J |
| Code F206 | Model series 206 | 10K |
| Code F206 | Model series 206 | 6A |
| Code F223 | Model series 223 | 1F |
| Code F223 | Model series 223 | 1G |
| Code F223 | Model series 223 | 6B |
| Code F297 | Model series 297 | 1E |
| Code F297 | Model series 297 | 10L |
| Code F297 | Model series 297 | 6B |
| H3/1 | Alarm siren | 15J |
| LIN | Local Interconnect Network | 18H |
| N10/6 | Front signal acquisition and actuation module control unit | 28J |
| N10/8 | Rear signal acquisition and actuation module control unit | 19G |
| N69/1 | Left front door control unit | 13A |
| N69/18 | Left front door control unit | 13B |
| N69/19 | Right front door control unit | 19C |
| N69/2 | Right front door control unit | 19B |
| N69/20 | Left rear door control unit | 13D |
| N69/21 | Right rear door control unit | 19F |
| N69/3 | Left rear door control unit | 13C |
| N69/4 | Right rear door control unit | 19E |
| N70 | Overhead control panel control unit | 22K |
| N70 | Overhead control panel control unit | 28D |
| N73/3 | Electronic ignition switch control unit | 34G |
| S62/42 | Hood contact switch | 38K |
| S62/43 | Hood contact switch | 38L |
