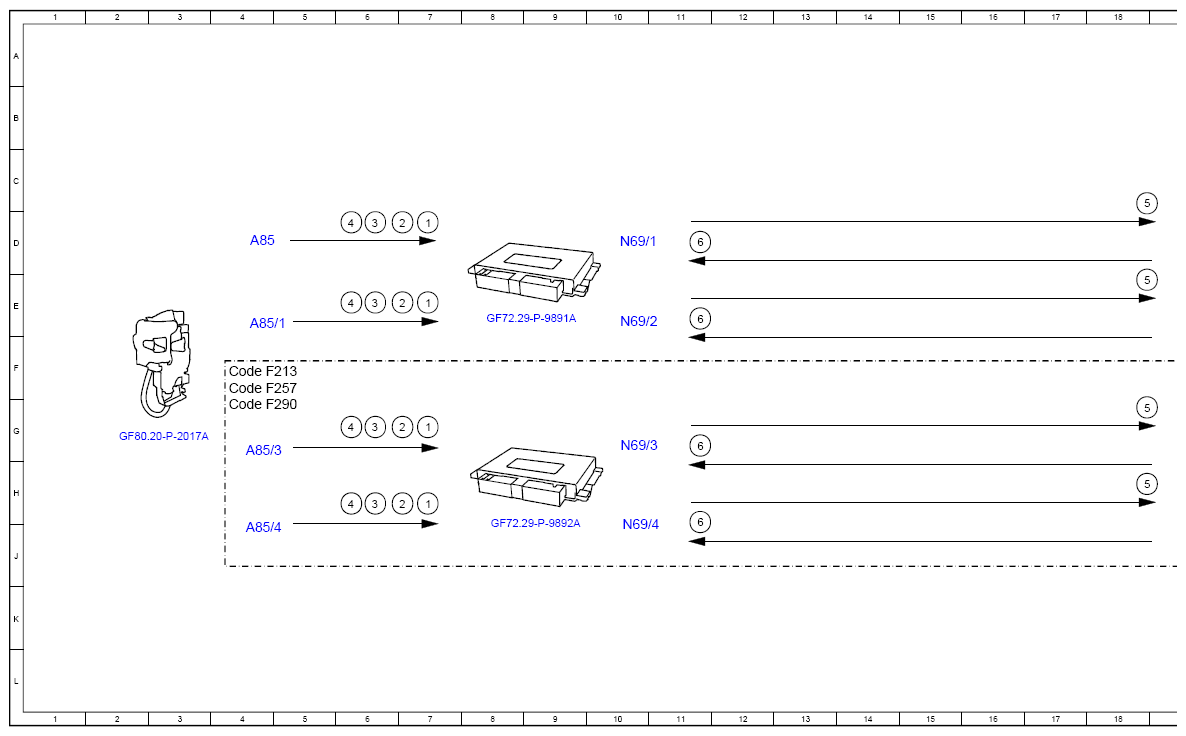

(Function Schematic For Power Closing Function - PE80.40-P-2500-97C)
Model 213, 238, 257, 290 as of model year 2021 with code 883 (Power locking)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Microswitch pre-latch, status | - |
| 1 | Microswitch pre-latch, status | - |
| 1 | Microswitch pre-latch, status | - |
| 1 | Microswitch pre-latch, status | - |
| 2 | Micro switch main catch, status | - |
| 2 | Micro switch main catch, status | - |
| 2 | Micro switch main catch, status | - |
| 2 | Micro switch main catch, status | - |
| 3 | Microswitch internal actuation, status | - |
| 3 | Microswitch internal actuation, status | - |
| 3 | Microswitch internal actuation, status | - |
| 3 | Microswitch internal actuation, status | - |
| 4 | Microswitch external actuation, status | - |
| 4 | Microswitch external actuation, status | - |
| 4 | Microswitch external actuation, status | - |
| 4 | Microswitch external actuation, status | - |
| 5 | Servo closing servomotor, control | - |
| 5 | Servo closing servomotor, control | - |
| 5 | Servo closing servomotor, control | - |
| 5 | Servo closing servomotor, control | - |
| 6 | Micro switch servo closing servo motor, status | - |
| 6 | Micro switch servo closing servo motor, status | - |
| 6 | Micro switch servo closing servo motor, status | - |
| 6 | Micro switch servo closing servo motor, status | - |
| A85 | Door lock front door on the left | 4D |
| A85/1 | Door lock front door right | 4E |
| A85/3 | Door lock rear left | 4G |
| A85/4 | Door lock rear door right | 4J |
| Code F213 | Series 213 | 4F |
| Code F257 | SERIES 257 | 4F |
| Code F290 | Series 290 | 4G |
| M14/21 | Servo closing front door actuator on the left | 19D |
| M14/22 | Actuator servo closing front door on the right | 19E |
| M14/23 | Servo closing actuator, left rear door | 19G |
| M14/24 | Servo closing actuator, right rear door | 19J |
| N69/1 | Left front door control unit | 10D |
| N69/2 | Front door control unit, right | 10E |
| N69/3 | Left rear door control unit | 10G |
| N69/4 | Rear door control unit, right | 10Y |
