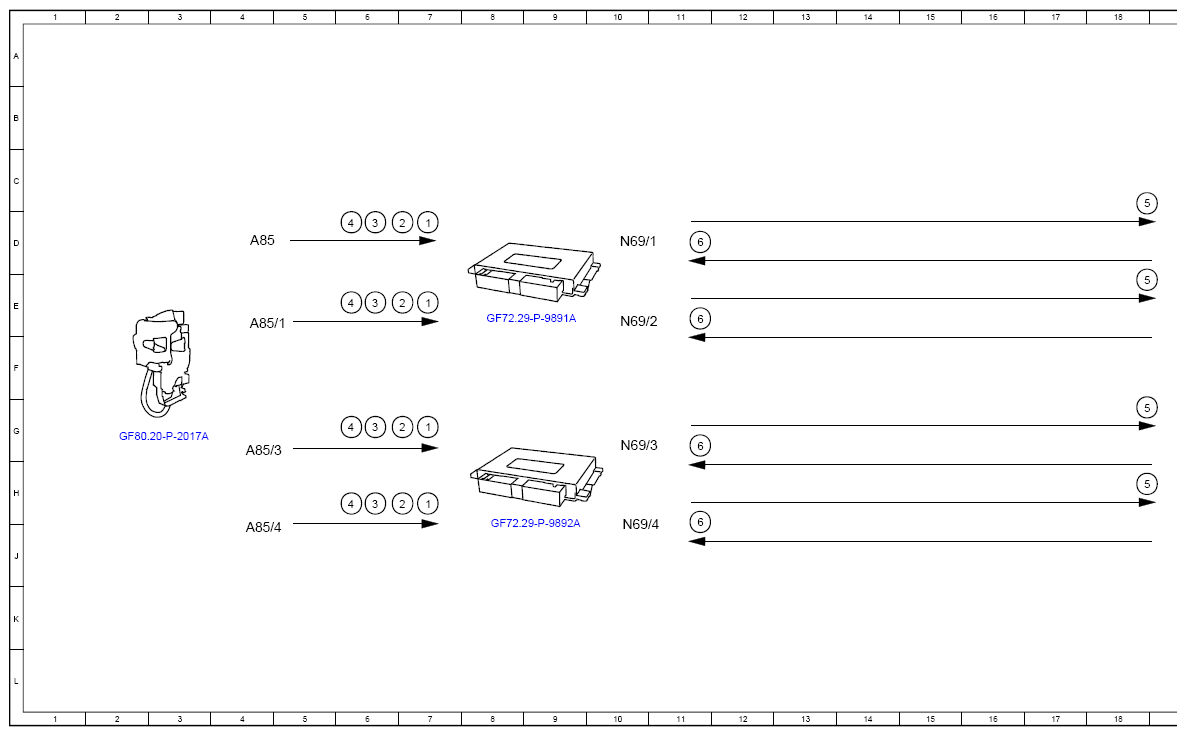

(Function Schematic For Power Closing Function - PE80.40-P-2500-97B)
Model 214, 223, 294, 295, 296, 297 with code 883 (Power locking)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pre-locking Position: microswitch, status | - |
| 1 | Pre-locking Position: microswitch, status | - |
| 1 | Pre-locking Position: microswitch, status | - |
| 1 | Pre-locking Position: microswitch, status | - |
| 2 | Main locking Position: microswitch, status | - |
| 2 | Main locking Position: microswitch, status | - |
| 2 | Main locking Position: microswitch, status | - |
| 2 | Main locking Position: microswitch, status | - |
| 3 | Internal operation microswitch, status | - |
| 3 | Internal operation microswitch, status | - |
| 3 | Internal operation microswitch, status | - |
| 3 | Internal operation microswitch, status | - |
| 4 | External operation microswitch, status | - |
| 4 | External operation microswitch, status | - |
| 4 | External operation microswitch, status | - |
| 4 | External operation microswitch, status | - |
| 5 | Power closing actuator motor, actuation | - |
| 5 | Power closing actuator motor, actuation | - |
| 5 | Power closing actuator motor, actuation | - |
| 5 | Power closing actuator motor, actuation | - |
| 6 | Power closing actuator motor microswitch, status | - |
| 6 | Power closing actuator motor microswitch, status | - |
| 6 | Power closing actuator motor microswitch, status | - |
| 6 | Power closing actuator motor microswitch, status | - |
| A85 | Left front door lock | 4D |
| A85/1 | Right front door lock | 4E |
| A85/3 | Left rear door lock | 4G |
| A85/4 | Right rear door lock | 4J |
| M14/21 | Left front door power closing actuator motor | 19D |
| M14/22 | Right front door power closing actuator motor | 19E |
| M14/23 | Left rear door power closing actuator motor | 19G |
| M14/24 | Right rear door power closing actuator motor | 19J |
| N69/1 | Left front door control unit | 10D |
| N69/2 | Right front door control unit | 10E |
| N69/3 | Left rear door control unit | 10G |
| N69/4 | Right rear door control unit | 10J |
